SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Toe Arms

SKU: SPPSPL_RTA_FRS

Control Arms

SPP Toe Arms

SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Toe Arms

SKU: SPPSPL_RTA_FRS

Control Arms

SPP Toe Arms

A$707.93
IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

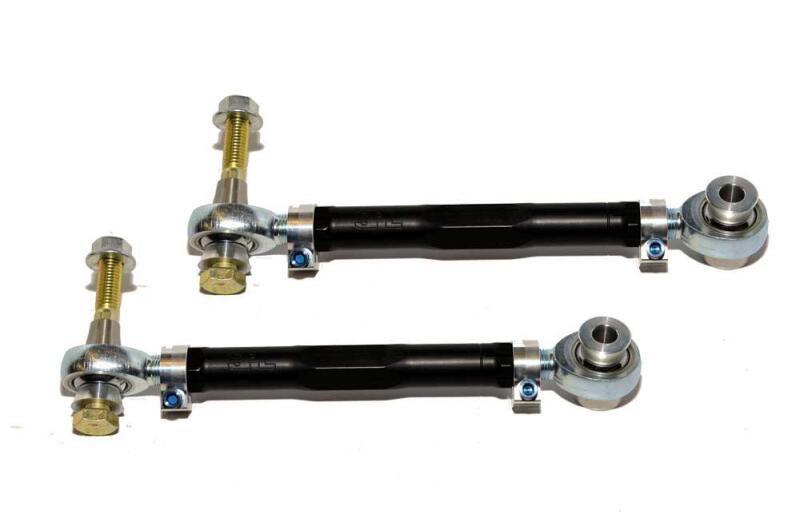

SPL Parts adjustable Rear Toe Arms (RTA) increase stability and response by eliminating bushing deflection while also offering a wide range of toe adjustment. Lowered BRZs, WRXs, and 86s need the adjustment range for correcting rear toe to ensure proper tire wear and handling. Correcting the static toe angle and eliminating the toe change that occurs due to bushing deflection makes a huge improvement to the overall driving experience of the car. Sharper turn-in, improved braking stability, and predictable handling from corner entry to corner exit. The SPL rear toe arms feature 360° clamps instead of jam nuts to make setting the toe angle significantly easier. Simply loosen the two 1/4"-20 titanium screws and turn the center arm to adjust the length. Tightening the screws locks down the arm and won't change your toe setting. OEM eccentric bolts are known to slip during hard cornering, altering your alignment settings and possibly ruining your track day. That's why we've paired the SPL eccentric lockouts and rear adjustable toe arm as a complete kit (RTAEL FRS). Benefits Lightweight: 2.48 lbs (1.13 kg) per Arm (23% Lighter than OEM) Large Toe Adjustability Range Eliminates Bushing Deflection and Toe Change due to Deflection Greatly Improves Stability and Driving Feel Easier, On-Car Adjustment + No Jam Nuts Self-Cleaning, US Made, PTFE-Lined FK Bearings Materials Hollow 6061-T6 Aluminum Arms (Anodized Black) 6061-T6 Aluminum Spacers and 360º Clamps 304 Stainless Steel Insert Spacers Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

Product Overview

SPL Parts adjustable Rear Toe Arms (RTA) for the Scion FR-S and Subaru BRZ platform increase stability and response by eliminating bushing deflection and offer a wide range of toe adjustment. These arms are designed for use in high performance street and race vehicles


Features and Benefits

  • Proudly made, engineered, and assembled in the USA.

Product Details

Adjustable:Yes
Bushing Material:Steel Spherical
Color:Black
Description:SPL Parts 2013+ Subaru BRZ/Toyota 86 / 2015+ Subaru WRX/STI Rear Toe Arms
Material:Hollow, billet aluminum arms with US-made, PTFE-lined FK steel sphericals, 304 stainless steel tapered spacers, and aluminum 360° clamps with titanium hardware
Part Number:sppSPL RTA FRS

Application Summary

Rear Toe Arms FR-S/BRZ/86/WRX

Part Type

Suspension Control Arm Link

Data: v4.2 - Upd: 2026-10-12 12:35:53

Features

  • Proudly made, engineered, and assembled in the USA.

Specifications

Product Attributes - Brand
SPL Parts
Product Attributes - Manufacturer's Part Number
SPL RTA FRS
Product Attributes - Part Type
Control Arms
Product Attributes - UPC
00887753910172

Reference Information

Brand Name/s Spl Parts
StreetFX SKU sppSPL_RTA_FRS
SFX Item ID 4227965
Supplier Item Code 4227965
Manufacturer SKU SPL RTA FRS
Manufacturer UPC N/A

Compatibility

Rear Toe Arms FR-S/BRZ/86/WRX
