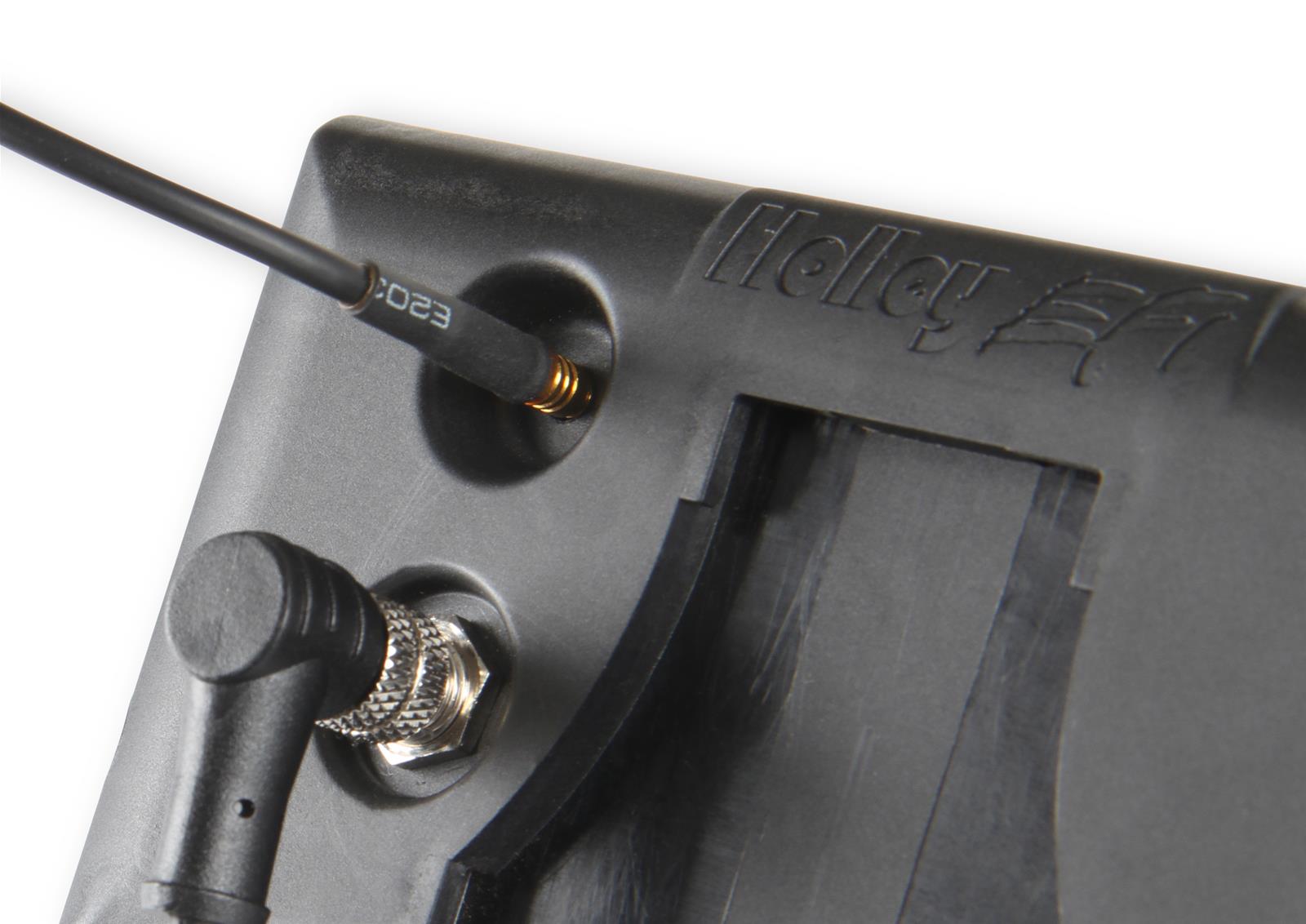

Holley Sniper EFI 5 in. Digital Dash Displays 553-200 Dashboard Displays, EFI, Dash, Touch Screen, GPS Speedometer, Calibration Wizard, Odometer, Data Logger, Mount, Kit
Holley Sniper EFI 5 in. Digital Dash Displays 553-200 Dashboard Displays, EFI, Dash, Touch Screen, GPS Speedometer, Calibration Wizard, Odometer, Data Logger, Mount, Kit
A$1,221.52
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description
IMPORTANT NOTICE: Will not fit the Sniper EFI 2 systems. Will fit generation 1 Sniper EFI, Terminator X, Terminator XMAX, Dominator and HP ECU's.
With over twice the resolution and improved color depth, Holley's new 5 in. Digital Dash display for the Sniper EFI family provides enhanced functionality at your fingertips. Three pre-loaded and customizable screens cleanly display the data you need most, while the built-in tuning and data-logging interfaces allow for easy tuning adjustments. An included GPS antenna measures accurate vehicle speed. Reveal even more data by pairing up the EFI 5 in. Digital Dash with Sniper's standard 3.5 in. touch screen via a 558-465 CAN splitter!
The Sniper EFI 5 in. Digital Dash comes out of the box, ready to plug-and-play with your Sniper EFI installation. The 5 in. digital touch screen display is pre-loaded with three easy-to-read layouts that provide critical system information, such as Throttle Position, Manifold Air Pressure, Air/Fuel Ratio, Battery Voltage, Engine Coolant Temperature, RPM, and Speed, thanks to the provided magnetic GPS antenna included in the kit.
The Sniper 5 in. Digital Dash also offers tuning, the hand-held wizard, and data-logging, so you don't have to keep your 3.5 in. display plugged into the system while utilizing the 5 in. dash!
The Sniper 5 in. also includes two dash mounting stand-offs and suction cup, allowing you to quickly mount the dash to most flat surfaces in the vehicle without drilling any holes.
Product features:
* Plug-and-play display with all generation 1 Sniper EFI, Terminator X, XMAX, Dominator and HP models; installation consists of plugging in the 5 in. Dash to the Sniper EFI CAN connector, and mounting the GPS antenna!
* Built-in Calibration Wizard allows you to quickly build a base engine calibration for your EFI-powered vehicle, without the need of a laptop
* Three default background skins pre-loaded with the option to customize the existing layouts to read exactly what information you want to see!
* Quickly swipe between multiple monitor screens, with customizable parameters (tune, warm-up, race, drive, etc.)
* Built-in GPS speedometer (magnetic antenna included)
* Provides real-time ECU tuning, allowing you to dial in your AFR, ignition timing, or any other hand-held tunable value, such as IAC or acceleration enrichment
* Expandable storage via included micro-SD allows you to quickly access the ECU calibrations, datalogs, or any other files you may use with your Sniper EFI system
* No stylus required; capacitive touch, just like your smart phone
* Convenient dimming feature for night-time driving; simply press the Sniper EFI icon on the background to quickly dim or brighten the screen
* Includes suction cup mount and two different length stand-offs for different mounting configurations, just like the 3.5 in. but with a larger, easier-to-use screen
* Not compatible with Sniper EFI 2 systems
Part Type
Digital Dashboard Displays
Specifications
- Product Attributes - Brand
- Holley Sniper
- Product Attributes - Manufacturer's Part Number
- 553-200
- Product Attributes - Part Type
- Digital Dashboard Displays
- Product Attributes - Product Line
- Holley Sniper EFI 5 in. Digital Dash Displays
- Product Attributes - UPC
- 00090127126615
- Product Attributes - Display Type
- LED
- Product Attributes - Display Customizable
- Yes
- Product Attributes - Display Housing Material
- Plastic
- Product Attributes - Display Housing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Wiring Harness Terminated
- Yes
- Product Attributes - OBD II Compatible
- Yes
- Product Attributes - WiFi Compatible
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Will not fit the Sniper EFI 2 systems. Will fit generation 1 Sniper EFI, Terminator X, Terminator XMAX, Dominator and HP ECU's.
Reference Information
| Brand Name/s | Holley Sniper |
|---|---|
| StreetFX SKU | sne553-200 |
| SFX Item ID | 5014058 |
| Supplier Item Code | 5014058 |
| Manufacturer SKU | 553-200 |
| Manufacturer UPC | N/A |
| Alternative References | SNI000040, SNI553-200 |
