Holley Sniper EFI Stealth 4150 Fuel Injection Systems 550-870K Systems, EFI, 4150, 650HP Max, Throttle Body, Shiny, Flange, Injectors, Pump, Regulator, Harness, Tuner, Kit
Holley Sniper EFI Stealth 4150 Fuel Injection Systems 550-870K Systems, EFI, 4150, 650HP Max, Throttle Body, Shiny, Flange, Injectors, Pump, Regulator, Harness, Tuner, Kit
A$4,082.42
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

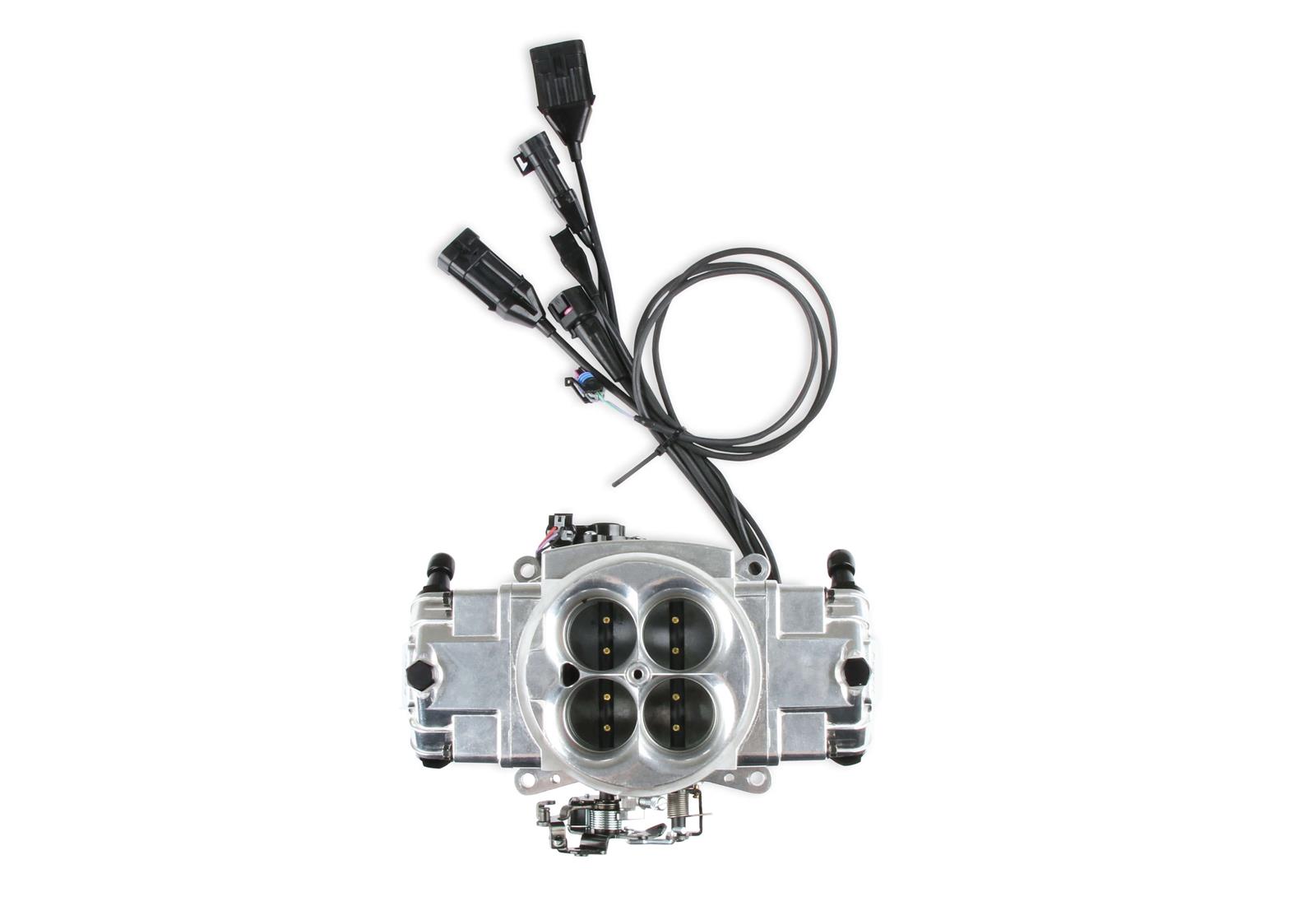

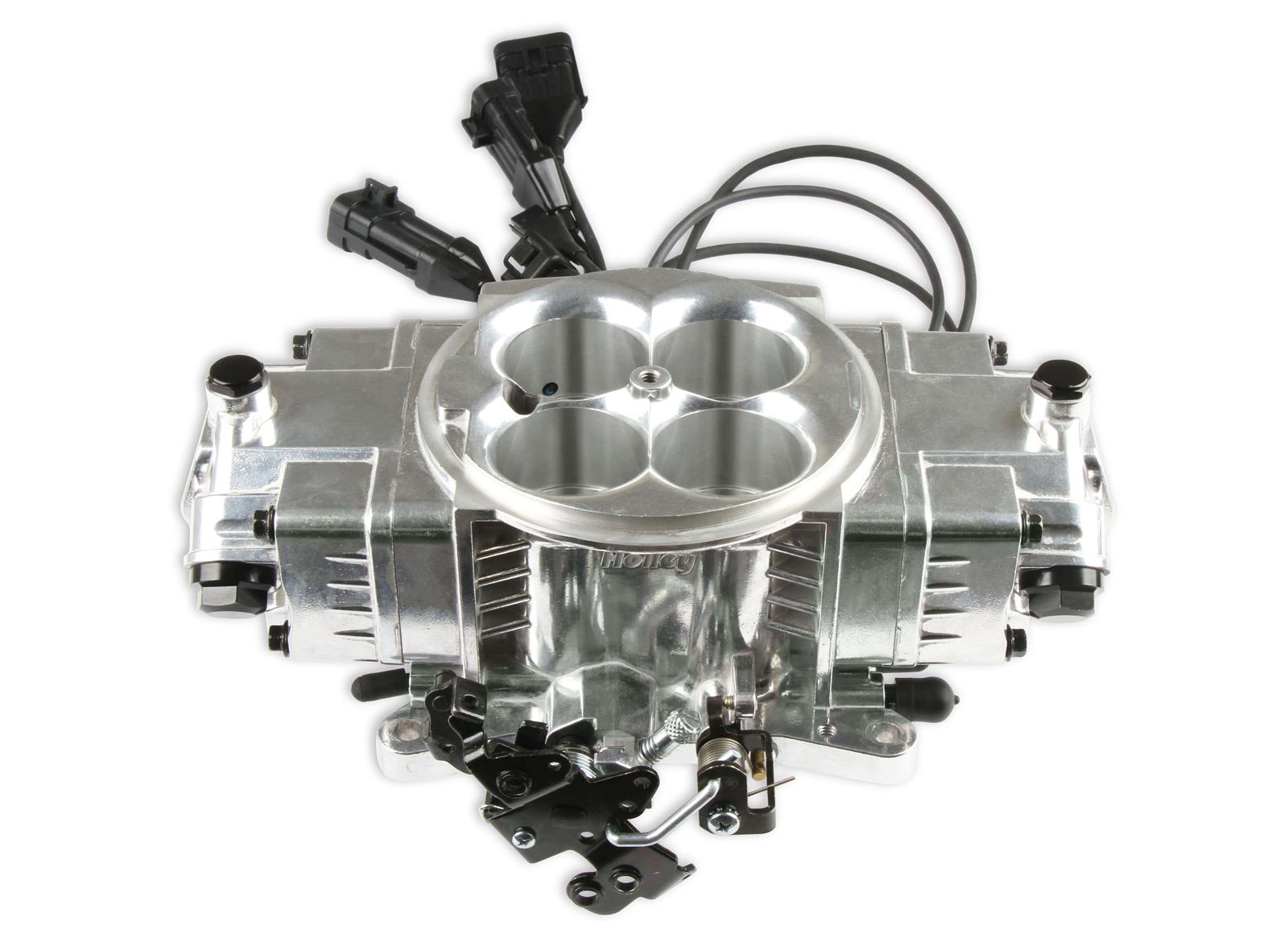

Holley Sniper EFI Stealth 4150 fuel injection systems feature four 100 lb.-hr. fuel injectors capable of supporting up to 650 hp naturally aspirated. The Sniper Stealth 4150 ECU is capable of fuel map self-learning and ignition timing control--improving idle stability, drivability, and wide-open throttle horsepower! These systems also include transmission kickdown provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications. The 4150 is available individually or in a complete Master Kit (see contents listed below).
ALL Sniper EFI Stealth 4150 systems feature:
* Bolt-on 4150 flange carburetor replacement
* Throttle body mounted ECU; no extra boxes to mount
* Supports up to 650 hp with four 100 lb.-hr. injectors

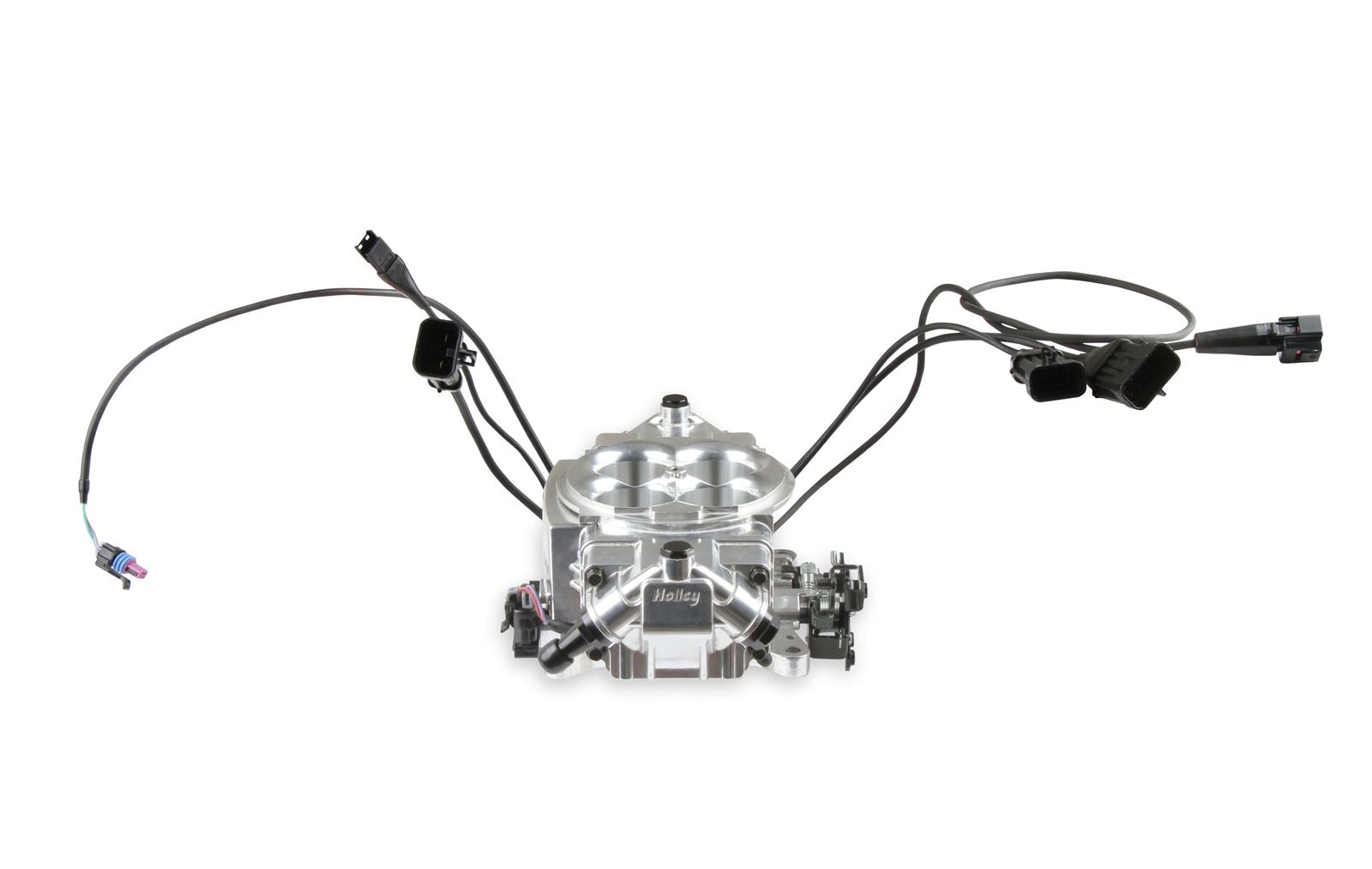

* All of the wiring exits below the rear fuel injector cover—for a completely stealth installation
* Timed spark part for vacuum advanced distributors located under the front fuel bowl—for easy access to the distributor
* Air entry is machined to fit most stock-style air cleaners with air cleaner locator provisions
* Only four wiring connections required (battery +, battery -, switched ignition, and RPM)
* External fuel pressure regulator required, set to a base pressure of 58.5 psi, such as 12-886
* Integrated ignition timing control

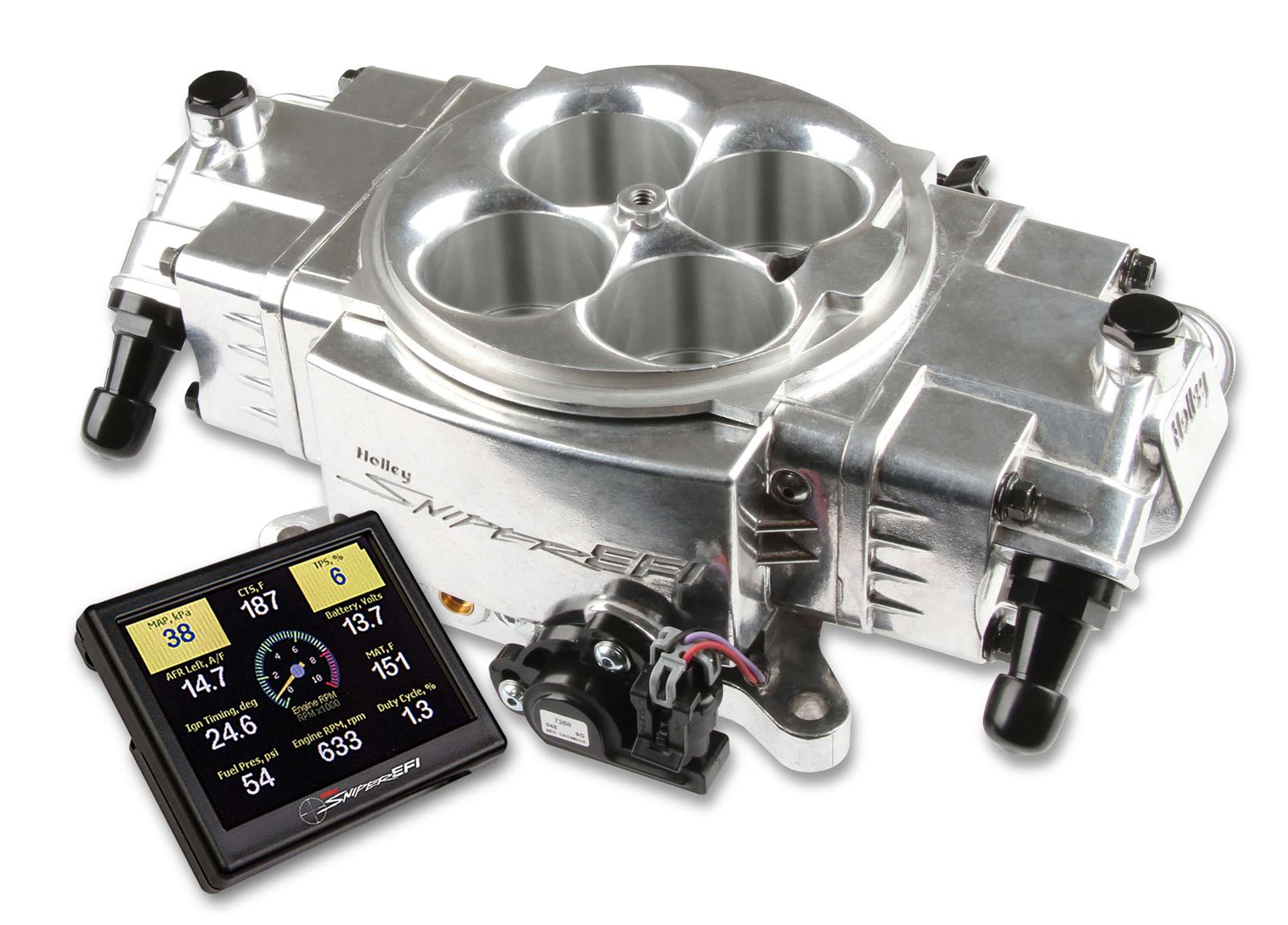

* High-resolution full-color touch screen for initial setup, tuning, and gauge displays
* Simple calibration wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own); NO laptop required
* Self-tuning ECU means you don't have to be a computer/tuning wiz to have EFI
* The included genuine Bosch LSU 4.9 wideband oxygen sensor provides real-time fuel map learn
* OEM-style TPS/IAC and fuel pressure regulator, for years of dependable service
* Included clamp-on oxygen sensor kit for 2.25 in. exhaust ensures a leak-free oxygen sensor installation, with stainless steel T-bolt clamps and a stainless steel (weldable) oxygen sensor flange
* Available in three finishes: shiny, ceramic black, and classic gold
MASTER KITS also include complete fuel system with an external fuel pressure regulator preset to 58.5 psi, 20 ft. of 3/8 in. Vapor Guard fuel hose, fuel pump, filters, necessary hardware, and bulkhead fitting to return fuel into the tank.
Part Type
Fuel Injection Systems
Specifications
- Product Attributes - Brand
- Holley Sniper
- Product Attributes - Manufacturer's Part Number
- 550-870K
- Product Attributes - Part Type
- Fuel Injection Systems
- Product Attributes - Product Line
- Holley Sniper EFI Stealth 4150 Fuel Injection Systems
- Product Attributes - UPC
- 90127078396
- Product Attributes - Fuel Injection Style
- Throttle body
- Product Attributes - Fuel Injection System Type
- Single 4-Barrel Throttle Body (4150 Flange)
- Product Attributes - Maximum Horsepower with Gas
- 650
- Product Attributes - Timing Control Compatible
- Yes
- Product Attributes - ECM Included
- Yes
- Product Attributes - Self Tuning
- Yes
- Product Attributes - User Tunable
- Yes
- Product Attributes - Fuel System Included
- Inline pump kit
- Product Attributes - Fuel Pump Flow Rating (lph)
- 255
- Product Attributes - Ignition System Included
- None
- Product Attributes - Power Distribution Included
- None
- Product Attributes - User Interface Included
- 3.5 in. display
- Product Attributes - EGR
- No
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Metering Style
- Speed density
- Product Attributes - Multi-Port Fuel Rails Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Throttle Body Mounting Flange
- 4-barrel square bore
- Product Attributes - Venturi Quantity
- 4
- Product Attributes - Airflow Rate (cfm)
- 870 cfm
- Product Attributes - Throttle Body Material
- Cast aluminum
- Product Attributes - Throttle Body Color
- Polished
- Product Attributes - Injectors Included
- Yes
- Product Attributes - Injector Size (lbs/hr)
- 100 lbs./hr.
- Product Attributes - Calibration Module Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Oxygen Sensor Included
- Yes
- Product Attributes - Fuel Pressure Regulator Included
- Yes
- Product Attributes - MAP Sensor Included
- Yes
- Product Attributes - IAT Sensor Included
- Yes
- Product Attributes - TPS Sensor Included
- Yes
- Product Attributes - IAC Motor Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- Master kit includes a filter for before the pump, a filter for after the pump, fittings, clamps and fuel injection hose.
Reference Information
| Brand Name/s | Holley Sniper |
|---|---|
| StreetFX SKU | sne550-870K |
| SFX Item ID | 5013649 |
| Supplier Item Code | 5013649 |
| Manufacturer SKU | 550-870K |
| Manufacturer UPC | N/A |
| Alternative References | SNI550-870K, 650HP |
