Description

On the Wrangler TJ, coil springs and shocks are primary determining factors in ride quality and suspension performance. Skyjackers legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the spring. The process starts with hot wound 5160 material, a presetting process and advanced method of shot peening. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging. Each coil spring is blasted (shot peen) with hard steel pellets at very high velocities. Shot peening compresses the surface of the steel thereby increasing the tensile strength of the spring. Shocks key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjackers ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system. From Higher Speeds to a Crawl, Skyjackers ADX 2.0 Works The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation). Front \ Rear Bump Stop Spacers bolt in between the upper frame and OEM bump stops. Correct bump keeps the suspension travel safely in check. Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. This re-centers the rear axle and improves suspension handling. The track bar bracket creates better handling and a lower roll center. Lower roll center means less side-to-side sway. Eccentric alignment cam bolts correct caster and pinion angles (front lower axle and rear upper front). Works with OEM Electronic Stability Control (ESC) System. Comes complete with Bushings and High-Grade Mounting Hardware.

Product Overview

On the Wrangler TJ, coil springs and shocks are primary determining factors in ride quality and suspension performance. Skyjackers legendary Softride technology engineered processes achieve maximum wheel travel, ride quality and extends the long-lasting life of the spring. The process starts with hot wound 5160 material, a presetting process and advanced method of shot peening. Compressing the spring completely down to where the coils touch (solid height) is preset. This takes any fatigue or stress off the spring and eliminates sagging. Each coil spring is blasted (shot peen) with hard steel pellets at very high velocities. Shot peening compresses the surface of the steel thereby increasing the tensile strength of the spring. Shocks key role is to optimize your suspension by keeping your tires in contact with the terrain. Skyjackers ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system. From Higher Speeds to a Crawl, Skyjackers ADX 2.0 Works The external remote reservoir separates the nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents the gas and oil from mixing or foaming (cavitation). Front \ Rear Bump Stop Spacers bolt in between the upper frame and OEM bump stops. Correct bump keeps the suspension travel safely in check. Rear Track Bar Lower Axle Mount Bracket mounts directly to the rear axle housing to correct the track bar angle. This re-centers the rear axle and improves suspension handling. The track bar bracket creates better handling and a lower roll center. Lower roll center means less side-to-side sway. Eccentric alignment cam bolts correct caster and pinion angles (front lower axle and rear upper front). Works with OEM Electronic Stability Control (ESC) System. Comes complete with Bushings and High-Grade Mounting Hardware.

Product Details

Description:	3 in. Suspension Lift System With ADX 2.0 Remote Reservoir Shocks.
Lift/Drop Height:	3 in.
WARNING CA Proposition 65 Message:	California Residents- WARNING: Cancer and-or other Reproductive Harm. (For more information go to www.p65warnings.ca.gov)
WARNING CA Proposition 65:	Yes

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description

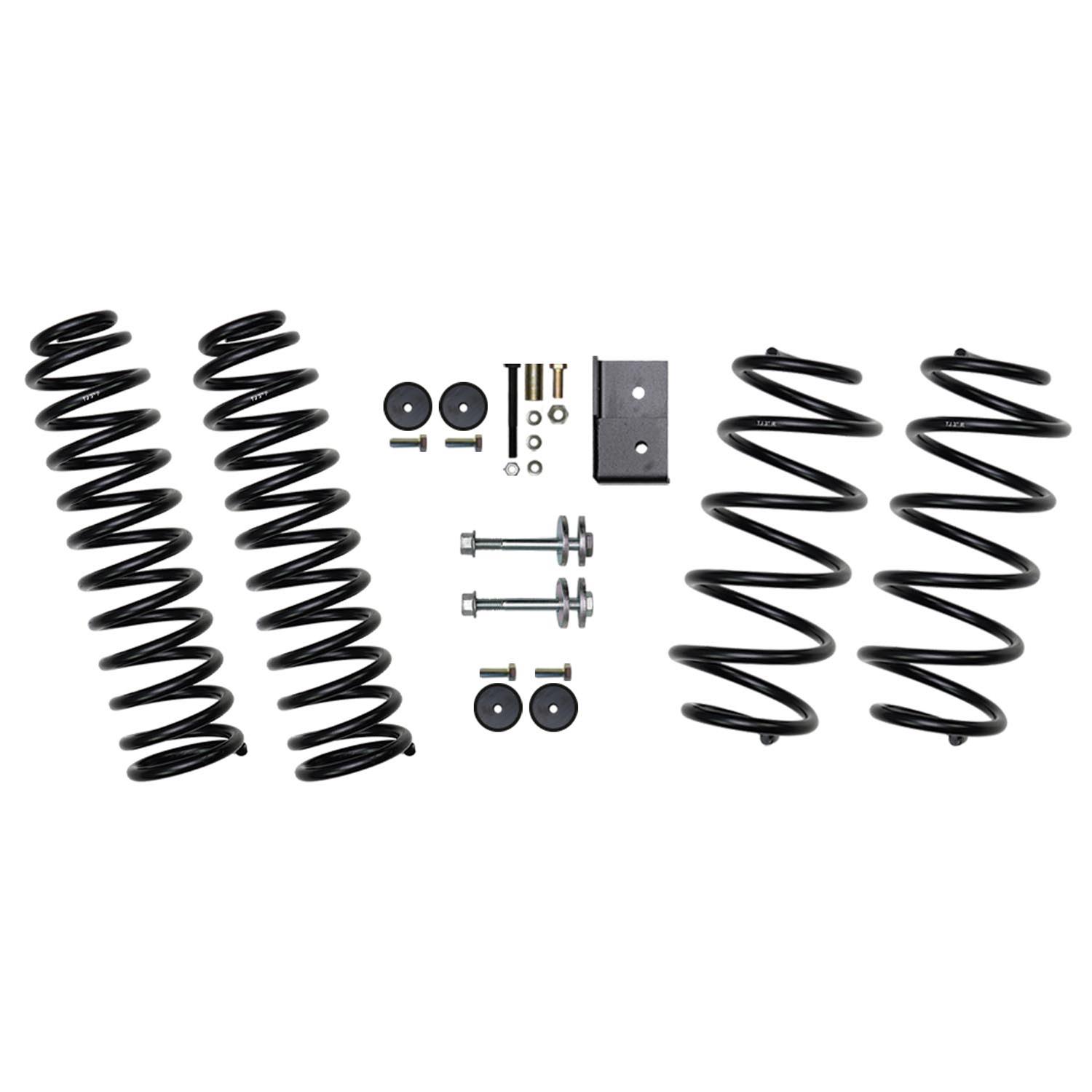

	1x	skyTJ30B	TJ30B	803696276601	Skyjacker 1997-2006 Jeep Wrangler (TJ) Suspension 3in Lift Kit

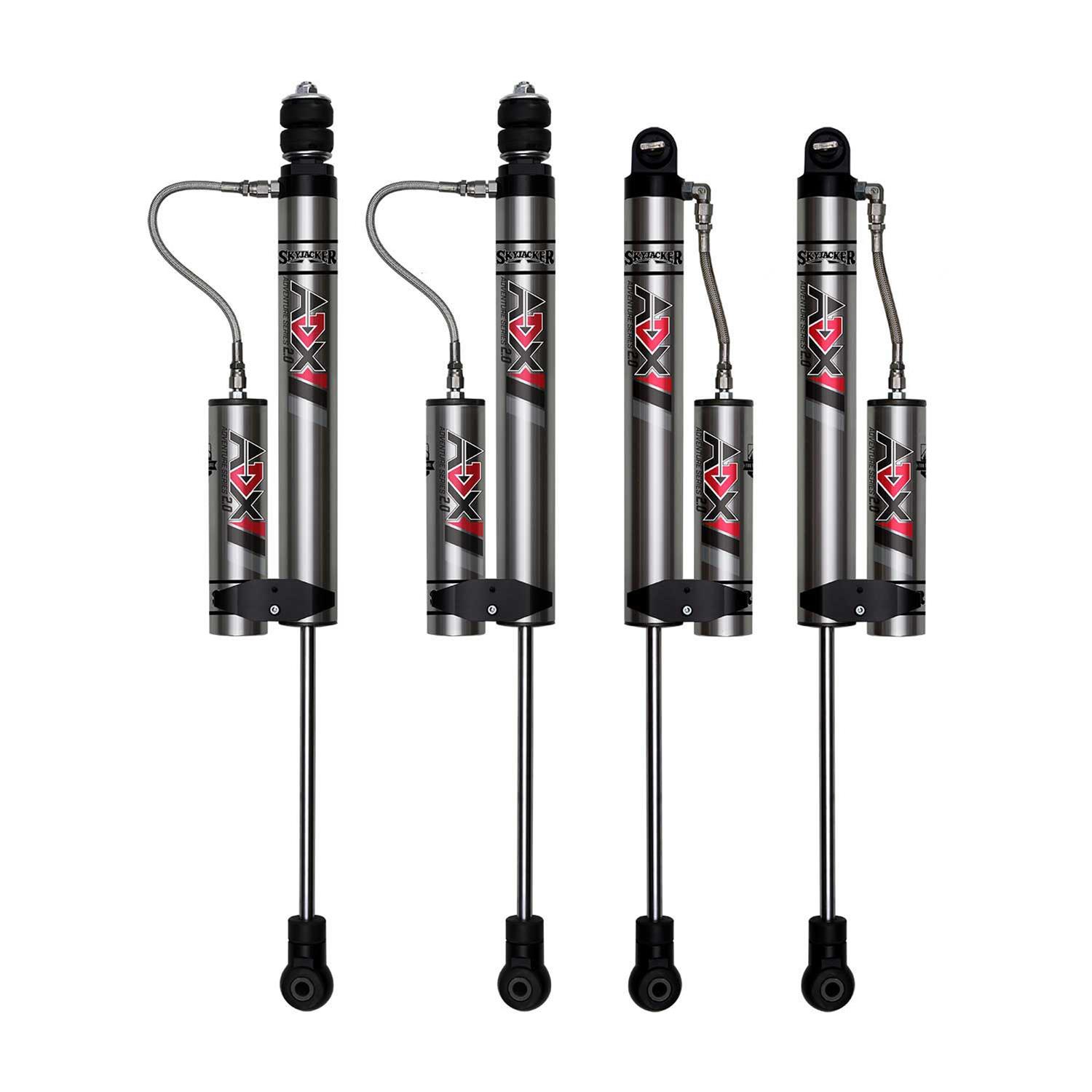

	1x	skytj2030x	tj2030x	803696276816	Skyjacker ADX 2.0 Nitrogen Gas Charged Remote Reservoir Shocks 97-06 Jeep Wrangler TJ 4WD 2-3in Lift

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-14 11:41:21

Specifications

Product Attributes - Brand

Skyjacker Suspensions

Product Attributes - Manufacturer's Part Number

TJ30BKX

Product Attributes - Part Type

Suspension Leveling & Lift Kits

Product Attributes - Product Line

Skyjacker Suspension Lift Kits

Product Attributes - UPC

803696276618

Product Attributes - Lift Style

Suspension Lift Kit

Product Attributes - Primary Front Lift Component

Coil spring

Product Attributes - Primary Rear Lift Component

Coil spring

Product Attributes - Front Shocks/Struts Included

Yes

Product Attributes - Front Shock Quantity Per Wheel

1

Product Attributes - Front Shock Type

Gas-charged monotube with reservoir

Product Attributes - Rear Shocks/Struts Included

Yes

Product Attributes - Rear Shock Quantity Per Wheel

1

Product Attributes - Rear Shock Type

Gas-charged monotube with reservoir

Product Attributes - Brake Lines Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - FMVSS 126 Certification

No

Product Attributes - Quantity

Sold as a kit.

Compatibility
