Description

Skyjacker(R) Suspensions offers you a high quality shock absorber with true velocity sensitive valving. Shock absorbers, or spring dampers as it is called everywhere else except in the U.S., control the rate at which suspension springs compress and rebound. As the shock is pushed together, this is called bump or compression. As the shock expands, this is called rebound or extension. Absorbing the ‘shock' of bumps and suspension loading is actually performed by the springs in the suspension. The shock's real job is controlling the energy stored in the springs.

Product Overview

Skyjacker(R) Suspensions offers you a high quality shock absorber with true velocity sensitive valving. Shock absorbers, or spring dampers as it is called everywhere else except in the U.S., control the rate at which suspension springs compress and rebound. As the shock is pushed together, this is called bump or compression. As the shock expands, this is called rebound or extension. Absorbing the ‘shock' of bumps and suspension loading is actually performed by the springs in the suspension. The shock's real job is controlling the energy stored in the springs.

Features and Benefits

• Multi-Stage Velocity Sensitive Valving
• Twin Tube Construction
• 5/8 in. Diameter Hardened And Double Chrome Rod
• Red Polyurethane Bushings
• Includes Red Boot 15 Other Colors Available
• Limited Lifetime Warranty

Product Details

Collapsed Length:	13.540 in.

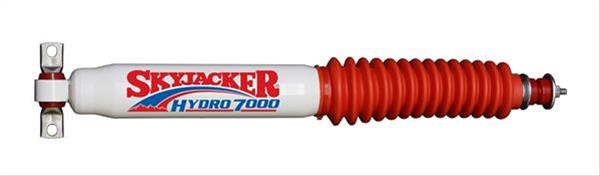

Description:	HYDRO SHOCK W/RED BOOT
Extended Length:	22.750 in.
Part Number:	skyH7016
Shock Stroke:	9.210 in.
WARNING CA Proposition 65 Message:	California Residents- WARNING: Cancer and-or other Reproductive Harm. (For more information go to www.p65warnings.ca.gov)
WARNING CA Proposition 65:	Yes

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	skyTJ20-H	Skyjacker COMP BOX, 2" 97-02 TJ POLY (2x skyH7018, 2x skyH7016, 1x skyTJ20)
	skyWJ20-H	Skyjacker COMP BOX,2" 99-04 GRAND WJ (2x skyH7044, 2x skyH7016, 1x skyWJ20)
	skyXJ20-H	Skyjacker COMP BOX 2" 84-01 JEEP XJ/M (2x skyH7018, 2x skyH7016, 1x skyXJ20)
	skyZJ20-H	Skyjacker COMP BOX, 2" 93-98 GRAND ZJ (2x skyH7023, 2x skyH7016, 1x skyZJ20)

Data: v4.2 - Upd: 2026-10-14 23:07:06

Features

Specifications

Product Attributes - Brand

Skyjacker Suspensions

Product Attributes - Manufacturer's Part Number

H7016

Product Attributes - Part Type

Shocks and Struts

Product Attributes - Product Line

Skyjacker Hydro Shocks

Product Attributes - UPC

803696134826

Product Attributes - Ride Height

Stock/Lifted

Product Attributes - Ride Height Note

Additional ride height information may be available for your vehicle, please refer to the app tab.

Product Attributes - Lifted Amount Range (in.)

0.00-3.00 in.

Product Attributes - Extended Length (in.)

22.75

Product Attributes - Collapsed Length (in.)

13.54

Product Attributes - Internal Design

Twin-tube

Product Attributes - Adjustable Valving

No

Product Attributes - Gas Charged

No

Product Attributes - Upper Mount

Stud

Product Attributes - Lower Mount

T-bar

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Bushing Color

Red

Product Attributes - Boot Included

Yes

Product Attributes - Boot Color

Red

Product Attributes - Remanufactured

No

Product Attributes - Quantity

Sold individually.
