Description

Skyjacker specifically engineered a progressive 2-stage dual rate long travel coil. First Flex Rate stage delivers a comfortable ride with the ability to flex\expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain.Second Ride Rate stage only engages after compression past Flex Rate. Engineered for the Gladiator's distinctive handling characteristics, rear coils are side specific.ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.Engineered for higher speed applications, remote reservoir shocks still perform at crawl. The external remote reservoir separates nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents gas and oil from mixing or foaming (cavitation).Formed from 2- in. OD x 0.250 wall DOM tubing, both pairs of arms are Flex Links. The axle mount has pressed-in HD OEM style vulcanized rubber bushings and the upper frame mount has Rock Jock's 2-1/2 in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction.Front Adjustable Track Bar includes pre-installed pressed-in OEM style rubber bushing with an adjustable 3/4- in. Heavy-Duty Rod End, Alignment Bushings and Jam Nut. Rear Track Bar Lower Axle Mount Bracket re-centers rear axle and restores OEM handling.Extended Length Sway Bar End Links allow full articulation at full droop. Front end links include pre-installed pressed-in OEM style rubber bushings. Rear end links come with press-in Poly bushings.Front and Rear Bump Stop Spacers bolt onto axle bump pads and keep the suspension travel safely in check. D.O.T. Certified Extended Length Stainless Steel Braided Rear Brake Lines are for stopping power.

Product Overview

Skyjacker specifically engineered a progressive 2-stage dual rate long travel coil. First Flex Rate stage delivers a comfortable ride with the ability to flex\expand during full articulation as the suspension drops (full droop). This keeps the coil springs seated in the upper coil mount/bucket and the tires in contact with the terrain.Second Ride Rate stage only engages after compression past Flex Rate. Engineered for the Gladiator's distinctive handling characteristics, rear coils are side specific.ADX 2.0 Adventure Series Remote Reservoir Aluminum Monotube Shocks deliver modern technology in the design with an innovative off-road race-inspired full-displaced valving system.Engineered for higher speed applications, remote reservoir shocks still perform at crawl. The external remote reservoir separates nitrogen gas from the oil with an Internal Floating Piston (IFP). The majority of the reservoir contains pressurized nitrogen gas. The IFP prevents gas and oil from mixing or foaming (cavitation).Formed from 2- in. OD x 0.250 wall DOM tubing, both pairs of arms are Flex Links. The axle mount has pressed-in HD OEM style vulcanized rubber bushings and the upper frame mount has Rock Jock's 2-1/2 in. forged Johnny Joints. These Johnny Joints provide over 30 degrees of unrestricted Flex movement in any direction.Front Adjustable Track Bar includes pre-installed pressed-in OEM style rubber bushing with an adjustable 3/4- in. Heavy-Duty Rod End, Alignment Bushings and Jam Nut. Rear Track Bar Lower Axle Mount Bracket re-centers rear axle and restores OEM handling.Extended Length Sway Bar End Links allow full articulation at full droop. Front end links include pre-installed pressed-in OEM style rubber bushings. Rear end links come with press-in Poly bushings.Front and Rear Bump Stop Spacers bolt onto axle bump pads and keep the suspension travel safely in check. D.O.T. Certified Extended Length Stainless Steel Braided Rear Brake Lines are for stopping power.

Product Details

Description:	6 in. Suspension Lift System With ADX 2.0 Remote Reservoir Shocks.
Lift/Drop Height:	6 in.
WARNING CA Proposition 65 Message:	California Residents- WARNING: Cancer and-or other Reproductive Harm. (For more information go to www.p65warnings.ca.gov)
WARNING CA Proposition 65:	Yes

This is a group bundle consisting of:

Image	Qty	SKU	MFR SKU	UPC	Description

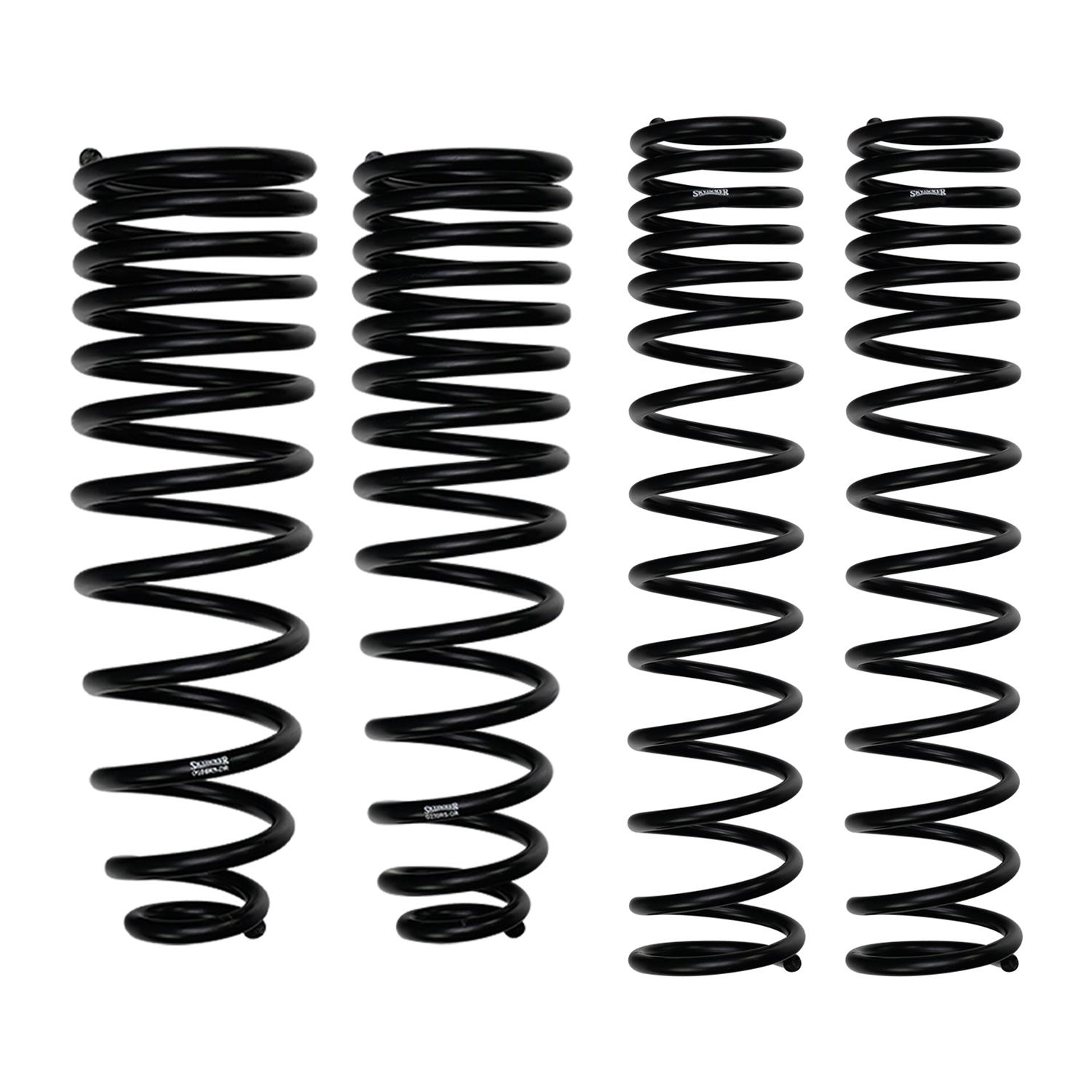

	1x	skyGR60FR	GR60FR	803696268170	Skyjacker 20-21 Jeep Gladiator JT Rubicon 6in Suspension Lift Component Box w/Front-Rear Coil Spring
	1x	skyG65X	G65X	803696272191	Skyjacker 20-21 Jeep Gladiator JT Rubicon ADX 2.0 Remote Reservoir Shocks
	1x	skyG565XLT	G565XLT	803696268187	Skyjacker 5.5-6.5in Suspension Lift Component Box for Diesel Jeep Gladiator JT

Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.

Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.

For details on the individual components in this bundle, click here.

Data: v4.2 - Upd: 2026-10-14 11:41:20

Specifications

Product Attributes - Brand

Skyjacker Suspensions

Product Attributes - Manufacturer's Part Number

G602RKXLT

Product Attributes - Part Type

Suspension Leveling & Lift Kits

Product Attributes - Product Line

Skyjacker Long Travel Lift Kits with ADX 2.0 Adventure Series Remote Reservoir Shocks

Product Attributes - UPC

803696275987

Product Attributes - Lift Style

Suspension Lift Kit

Product Attributes - Primary Front Lift Component

Coil spring

Product Attributes - Primary Rear Lift Component

Coil spring

Product Attributes - Front Shocks/Struts Included

Yes

Product Attributes - Front Shock Quantity Per Wheel

1

Product Attributes - Front Shock Type

Gas-charged monotube with reservoir

Product Attributes - Rear Shocks/Struts Included

Yes

Product Attributes - Rear Shock Quantity Per Wheel

1

Product Attributes - Rear Shock Type

Gas-charged monotube with reservoir

Product Attributes - Brake Lines Included

No

Product Attributes - Hardware Included

Yes

Product Attributes - FMVSS 126 Certification

No

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Notes

Requires aftermarket double Carden front driveshaft with transfer case out yoke for instillation.

Compatibility
