Dana Spicer Drivetrain Products

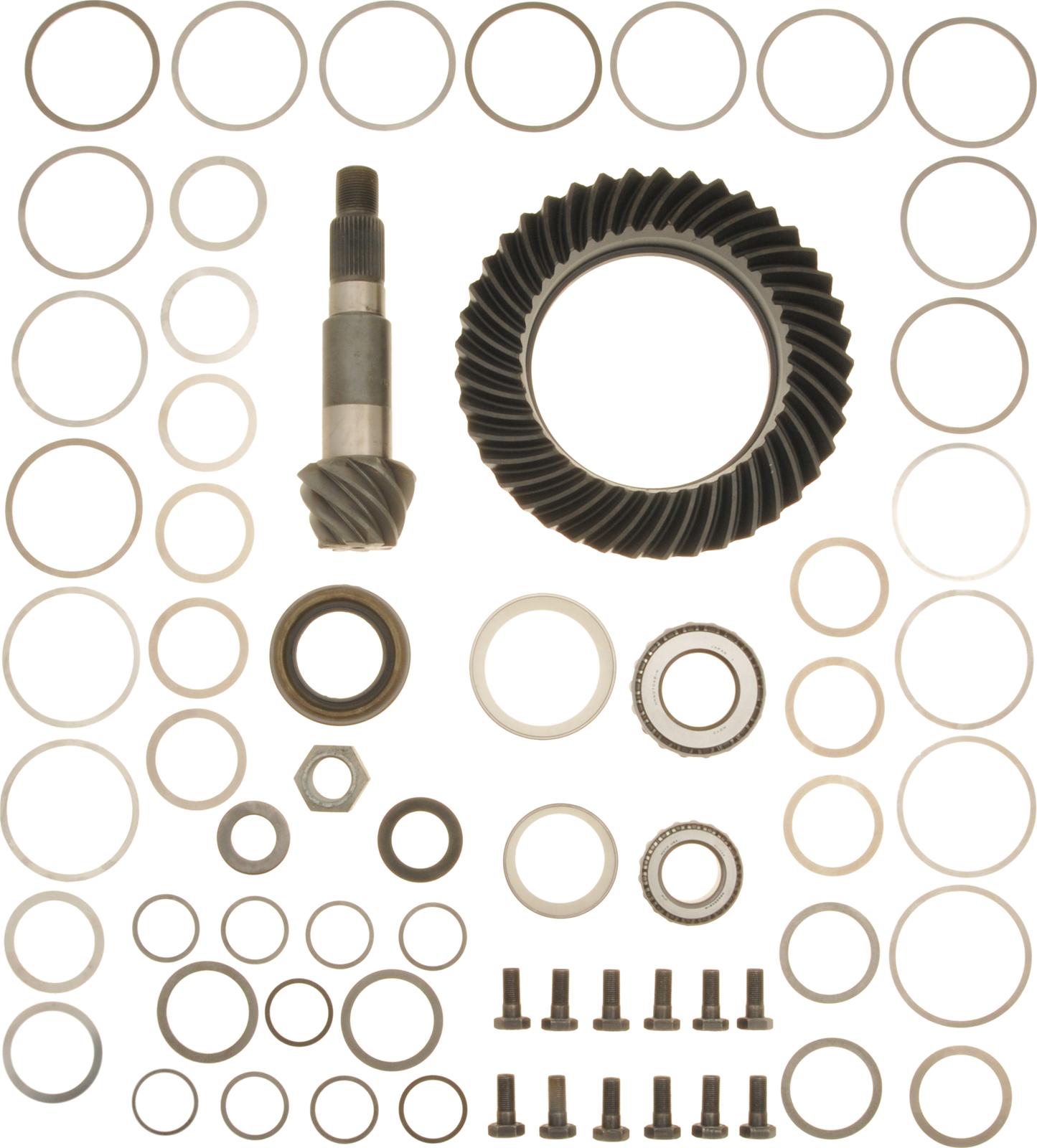

Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 707060-13X Dana 80 5.13 Gears Gears, 5.13:1 Ratio, 37-spline, Standard Rotation, Kit, 80, Kit

SKU: SDH707060-13X

Ring and Pinion Gears
Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 707060-13X Dana 80 5.13 Gears Gears, 5.13:1 Ratio, 37-spline, Standard Rotation, Kit, 80, Kit

Dana Spicer Drivetrain Products

Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 707060-13X Dana 80 5.13 Gears Gears, 5.13:1 Ratio, 37-spline, Standard Rotation, Kit, 80, Kit

SKU: SDH707060-13X

Ring and Pinion Gears
A$1,655.20
Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

Errrr, bang! Clunk clunk clunk. Very few parts last forever, especially those rotating at a high rate of speed. Spicer Drivetrain Products ring and pinion gears are perfect for replacing worn or damaged gears, changing ratios, or when refreshing the differentials. They hob and shave the gears for longevity with minimal mating stress, combine modern designs and materials including heat-treating and shot-peening to maximize life, and use high-grade steel for consistency and exceptional durability. Each gear set meets or exceeds Dana's standards for OEM equipment. Whether you need lower, higher, or the same ratio gears, look into Spicer Drivetrain ring and pinion gears with installation kit, available for hundreds of applications.

Part Type

Ring and Pinion Gears

Data: v4.2 - Upd: 2026-10-14 09:57:46

Specifications

Product Attributes - Brand
Dana Spicer Drivetrain Products
Product Attributes - Manufacturer's Part Number
707060-13X
Product Attributes - Part Type
Ring and Pinion Gears
Product Attributes - Product Line
Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits
Product Attributes - UPC
023913128265
Product Attributes - Differential Case Design Type
Dana 80
Product Attributes - Ring and Pinion Ratio
5.13:1
Product Attributes - Cover Bolts
10
Product Attributes - Ring Gear Bolts
12
Product Attributes - Pinion Spline Count
37
Product Attributes - Carrier Series
3
Product Attributes - Ring Gear Rotation
Standard
Product Attributes - Ring Gear Teeth
41
Product Attributes - Pinion Gear Teeth
8
Product Attributes - Ring Gear Diameter (in.)
11.250 in.
Product Attributes - Pinion Shaft Diameter (in.)
2.000 in.
Product Attributes - Installation Kit Included
Yes
Product Attributes - Cover Gasket Included
No
Product Attributes - Pinion Shims Included
Yes
Product Attributes - Carrier Shims Included
Yes
Product Attributes - Crush Sleeve Included
No
Product Attributes - Pinion Seal Included
Yes
Product Attributes - Pinion Nut Included
Yes
Product Attributes - Ring Gear Bolts Included
Yes
Product Attributes - Head Bearing Included
Yes
Product Attributes - Tail Bearing Included
Yes
Product Attributes - Carrier Bearings Included
No
Product Attributes - Axle Seals Included
No
Product Attributes - Axle Bearings Included
No
Product Attributes - Differential Cover Included
No
Product Attributes - Differential Oil Included
No
Product Attributes - Friction Modifier Included
No
Product Attributes - Installation DVD Included
No
Product Attributes - Quantity
Sold as a kit.
Product Attributes - Notes
Fits 4.10:1 and numerically higher ratio carriers.

Reference Information

Brand Name/s Dana Spicer Drivetrain Products
StreetFX SKU sdh707060-13X
SFX Item ID 4937531
Supplier Item Code 4937531
Manufacturer SKU 707060-13X
Manufacturer UPC 23913128265
Alternative References DAN707060-13X, 37-spline

Compatibility

Application Data
  • MakeFORD
    ModelF53
    SubmodelBASE
    Beginning Year1997
    Ending Year1997
    Engine TypeV8
    Engine Size7.5L/460
    Engine FamilyFord big block 385 Series
    Axle LocationRear
    Liter7.5
    CID460
    Engine VIN CodeG
  • MakeFORD
    ModelF53
    SubmodelXL
    Beginning Year1996
    Ending Year1997
    Engine TypeV8
    Engine Size7.5L/460
    Engine FamilyFord big block 385 Series
    Axle LocationRear
    Liter7.5
    CID460
    Engine VIN CodeG
