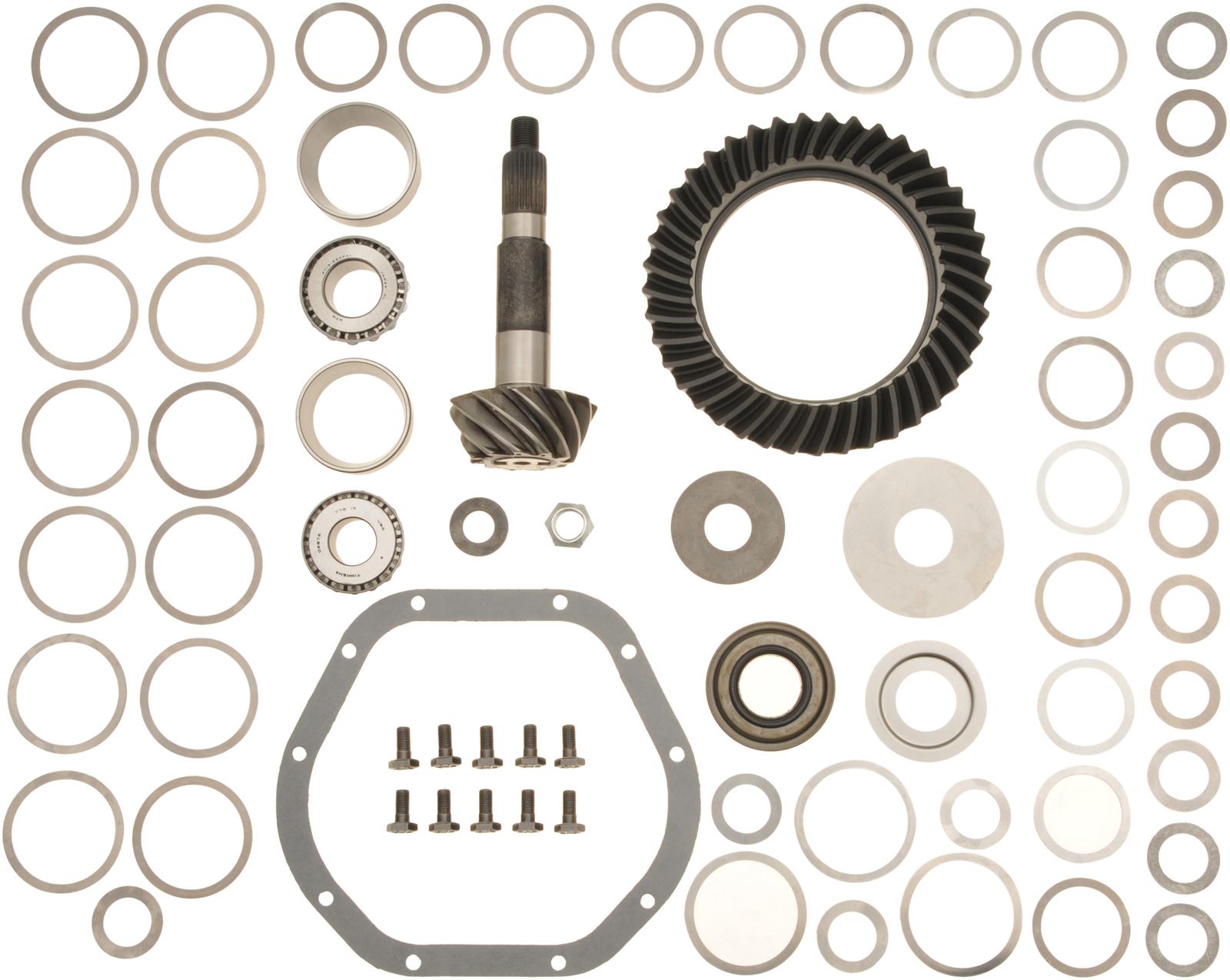

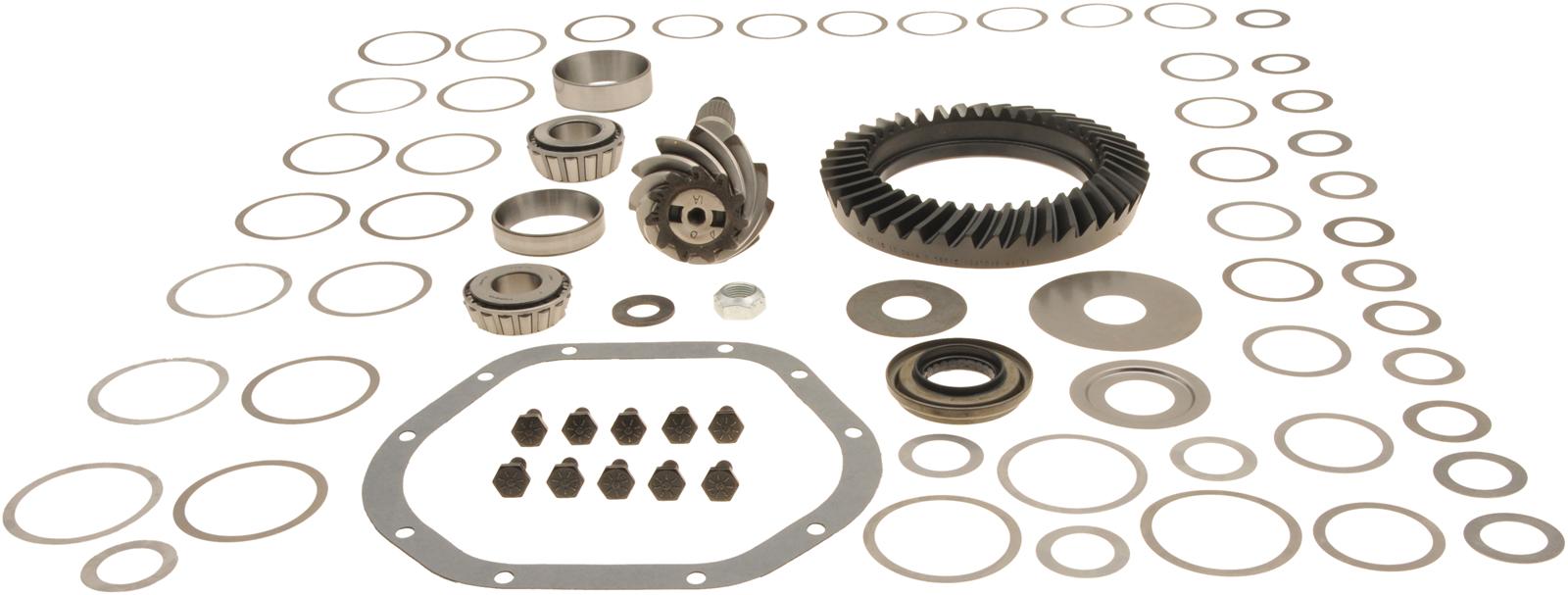

Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 706017-4X Dana 44 3.73 Gears Gears, 3.73:1 Ratio, 26-spline, Standard Rotation, Kit, 44, Kit
Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits 706017-4X Dana 44 3.73 Gears Gears, 3.73:1 Ratio, 26-spline, Standard Rotation, Kit, 44, Kit
A$1,123.28
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Errrr, bang! Clunk clunk clunk. Very few parts last forever, especially those rotating at a high rate of speed. Spicer Drivetrain Products ring and pinion gears are perfect for replacing worn or damaged gears, changing ratios, or when refreshing the differentials. They hob and shave the gears for longevity with minimal mating stress, combine modern designs and materials including heat-treating and shot-peening to maximize life, and use high-grade steel for consistency and exceptional durability. Each gear set meets or exceeds Dana's standards for OEM equipment. Whether you need lower, higher, or the same ratio gears, look into Spicer Drivetrain ring and pinion gears with installation kit, available for hundreds of applications.
Part Type
Ring and Pinion Gears
Specifications
- Product Attributes - Brand
- Dana Spicer Drivetrain Products
- Product Attributes - Manufacturer's Part Number
- 706017-4X
- Product Attributes - Part Type
- Ring and Pinion Gears
- Product Attributes - Product Line
- Spicer Drivetrain Products Ring and Pinion Gear with Installation Kits
- Product Attributes - UPC
- 023913128234
- Product Attributes - Differential Case Design Type
- Dana 44
- Product Attributes - Ring and Pinion Ratio
- 3.73:1
- Product Attributes - Cover Bolts
- 10
- Product Attributes - Ring Gear Bolts
- 10
- Product Attributes - Pinion Spline Count
- 26
- Product Attributes - Carrier Series
- 2
- Product Attributes - Ring Gear Rotation
- Standard
- Product Attributes - Ring Gear Teeth
- 41
- Product Attributes - Pinion Gear Teeth
- 11
- Product Attributes - Ring Gear Diameter (in.)
- 8.500 in.
- Product Attributes - Pinion Shaft Diameter (in.)
- 1.350 in.
- Product Attributes - Installation Kit Included
- Yes
- Product Attributes - Cover Gasket Included
- No
- Product Attributes - Pinion Shims Included
- Yes
- Product Attributes - Carrier Shims Included
- Yes
- Product Attributes - Crush Sleeve Included
- No
- Product Attributes - Pinion Seal Included
- Yes
- Product Attributes - Pinion Nut Included
- Yes
- Product Attributes - Ring Gear Bolts Included
- Yes
- Product Attributes - Head Bearing Included
- Yes
- Product Attributes - Tail Bearing Included
- Yes
- Product Attributes - Carrier Bearings Included
- No
- Product Attributes - Axle Seals Included
- No
- Product Attributes - Axle Bearings Included
- No
- Product Attributes - Differential Cover Included
- No
- Product Attributes - Differential Oil Included
- No
- Product Attributes - Friction Modifier Included
- No
- Product Attributes - Installation DVD Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Fits 3.73:1 and numerically lower ratio carriers.
Reference Information
| Brand Name/s | Dana Spicer Drivetrain Products |
|---|---|
| StreetFX SKU | sdh706017-4X |
| SFX Item ID | 4936476 |
| Supplier Item Code | 4936476 |
| Manufacturer SKU | 706017-4X |
| Manufacturer UPC | 23913128234 |
| Alternative References | DAN706017-4X, 26-spline |
