South Bend Clutch
South Bend / DXD Racing Clutch 00-06 Volkswagen Golf IV GTI 5Sp 1.8T Stg 3 Daily Clutch Kit (w/ FW)
sbcK70319F-SS-O
A$2,149.68

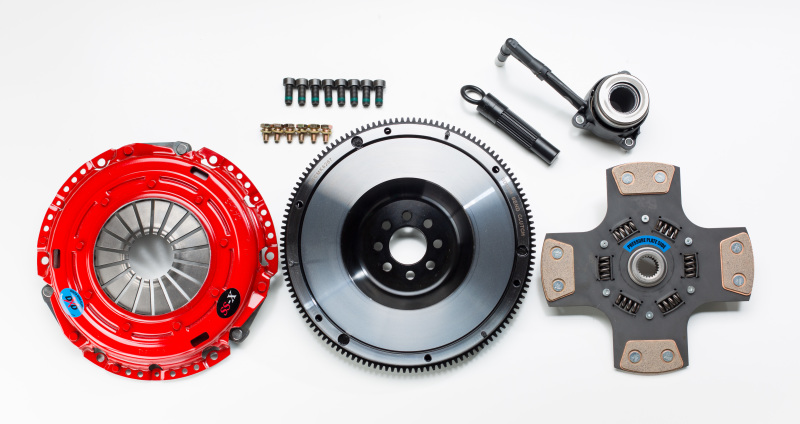

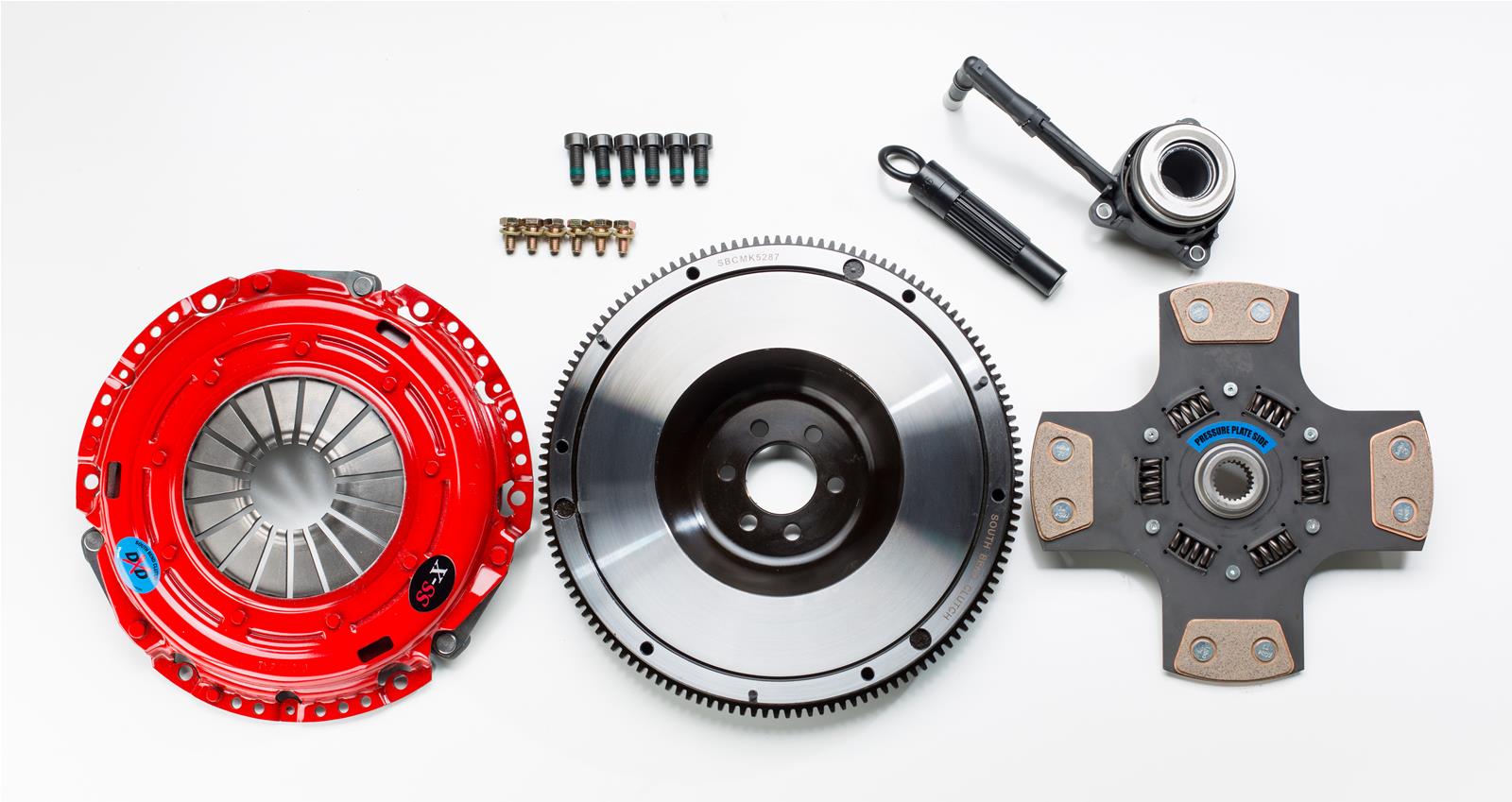

South Bend / DXD Racing Clutch 08.5+ Audi A3 TSI 2.0T Stg 4 Extreme Clutch Kit (w/ FW)
South Bend / DXD Racing Clutch 08.5+ Audi A3 TSI 2.0T Stg 4 Extreme Clutch Kit (w/ FW)
A$4,003.14
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
South Bend Clutch Stage 4 X-Series clutch kits are build-to-order clutch packages for vehicles modified to exceed Stage 3 hp parameters. The kits include a steel, single mass, SFI-approved flywheel for safety. The race-engineered pressure plate is modified for maximum plate load, and helps to deliver more transmittable torque, stability, extended life, and superior thermal resistance. The South Bend Clutch Stage 4 X-Series clutch kits provide noticeably better dynamics through higher clamp loads, when driving your vehicle to its limits. Order the Stage 4 X-Series clutch kit recommended for your specific vehicle and engine size.
Features, items, and specs include:
* Puck-style disc offered in sprung and un-sprung options
* Graphite-impregnated ceramic or sintered iron friction material options
* Torque ratings calculated at time of ordering
* Engagement characteristics can be abrupt
* Meticulous processing and advanced packaging materials
Product Overview
*STAGE 4 EXTREME:*
This is a "build to order" clutch kit intended for cars with HP modifications exceeding the stage 3 parameters. The Race Engineered pressure plate is modified for maximum plate load. The discs are puck design with sprung and un-sprung options. Friction material options include Sintered Iron and Graphite Impregnated Ceramic. Engagement characteristics can be abrupt. Hydraulic systems may need enhancing for proper clutch separation. Single mass steel SFI approved flywheels are required for safety. Torque ratings are calculated at time of ordering.
Product Details
| Alignment Tool Included: | Yes |
|---|---|
| Clutch Disc Quantity: | Single |
| Clutch Usage: | Performance |
| Description: | Stage 4 Clutch Kit; EXTREME Series; Kit Includes Flywheel (SBCF-TSI) |
| Disc Diameter: | 240 |
| Disc Material: | Ceramic |
| Disc Style: | 4-paddle |
| Flywheel Bolt Quantity: | 8 |
| Flywheel Included: | Yes |
| Flywheel Material: | Billet steel |
| Hub Style: | Sprung |
| Input Shaft Diameter: | 0.94 |
| Input Spline Quantity: | 23 |
| Mounting Hardware Included: | Yes |
| Part Number: | sbcKTSIF-SS-X |
| Pilot Bushing Included: | No |
| Pressure Plate Style: | Diaphragm |
| Prop 65 Yes/No: | No |
| Quantity: | Sold as a kit |
| Ring Gear Tooth Quantity: | 135 |
| Throwout Bearing Included: | Yes |
| Throwout Bearing Style: | Hydraulic |
| Title: | South Bend Clutch Stage 4 Extreme Clutch Kit |
| Torque Rating: | TBAft/lbs |
Part Type
Transmission Clutch Kit
Specifications
- Product Attributes - Brand
- South Bend Clutch
- Product Attributes - Manufacturer's Part Number
- KTSIF-SS-X
- Product Attributes - Part Type
- Clutch Kits
- Product Attributes - Product Line
- South Bend Clutch Stage 4 X-Series Clutch Kits
- Product Attributes - UPC
- 840416332339
- Product Attributes - Clutch Usage
- Performance
- Product Attributes - Clutch Disc Quantity
- 1
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Input Spline Quantity
- 23
- Product Attributes - Input Shaft Diameter
- 0.940 in.
- Product Attributes - Disc Diameter (in.)
- 9.440 in.
- Product Attributes - Disc Diameter (mm)
- 240mm
- Product Attributes - Disc Material
- Ceramic
- Product Attributes - Disc Style
- 4-paddle
- Product Attributes - Hub Style
- Sprung
- Product Attributes - Pressure Plate Style
- Diaphragm
- Product Attributes - Throwout Bearing Included
- Yes
- Product Attributes - Throwout Bearing Style
- Hydraulic
- Product Attributes - Alignment Tool Included
- Yes
- Product Attributes - Pilot Bushing Included
- No
- Product Attributes - Flywheel Material
- Billet steel
- Product Attributes - Ring Gear Tooth Quantity
- 135-tooth
- Product Attributes - Flywheel Bolt Quantity
- 8
- Product Attributes - Counterweight Assist
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | South Bend Clutch |
|---|---|
| StreetFX SKU | sbcKTSIF-SS-X |
| SFX Item ID | 4423447 |
| Supplier Item Code | 4423447 |
| Manufacturer SKU | KTSIF-SS-X |
| Manufacturer UPC | 840416332339 |
| Alternative References | 2.0T |
