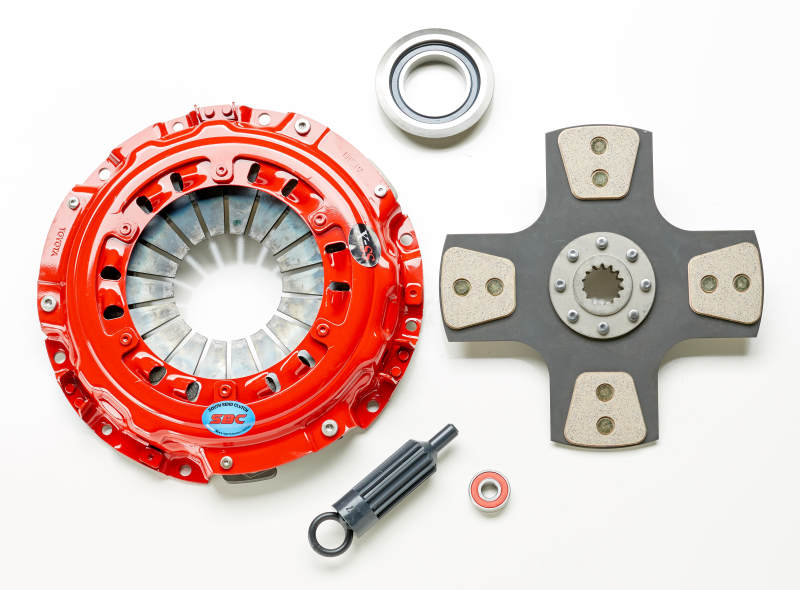

South Bend / DXD Racing Clutch 94-98 Toyota Supra Turbo 3.0L Stg 4 Extreme Clutch Kit
South Bend / DXD Racing Clutch 94-98 Toyota Supra Turbo 3.0L Stg 4 Extreme Clutch Kit
A$2,025.43
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
K16093-SS-X-DMF, STAGE 4 EXTREME.
Product Overview
*STAGE 4 EXTREME:*
This is a "build to order" clutch kit intended for cars with HP modifications exceeding the stage 3 parameters. The Race Engineered pressure plate is modified for maximum plate load. The discs are puck design with sprung and un-sprung options. Friction material options include Sintered Iron and Graphite Impregnated Ceramic. Engagement characteristics can be abrupt. Hydraulic systems may need enhancing for proper clutch separation. Single mass steel SFI approved flywheels are required for safety. Torque ratings are calculated at time of ordering.
Product Details
| Alignment Tool Included: | Yes |
|---|---|
| Clutch Disc Quantity: | Single |
| Clutch Usage: | Performance |
| Description: | Stage 4 Clutch Kit; EXTREME Series; For Dual Mass Flywheel |
| Disc Diameter: | 250 |
| Disc Material: | Ceramic |
| Disc Style: | 4-paddle |
| Flywheel Included: | No |
| Hub Style: | Rigid |
| Input Shaft Diameter: | 1.25 |
| Input Spline Quantity: | 14 |
| Mounting Hardware Included: | No |
| Part Number: | sbcK16093-SS-X-DMF |
| Pilot Bushing Included: | Yes |
| Pilot Bushing Material: | Steel |
| Pressure Plate Style: | Diaphragm |
| Prop 65 Yes/No: | No |
| Quantity: | Sold as a kit |
| Throwout Bearing Included: | Yes |
| Throwout Bearing Style: | Standard |
| Title: | South Bend Clutch Stage 4 Extreme Clutch Kit |
| Torque Rating: | 795ft/lbs |
Part Type
Transmission Clutch Kit
Specifications
- Alignment Tool Included:
- Yes
- Clutch Disc Quantity:
- Single
- Clutch Usage:
- Performance
- Description:
- Stage 4 Clutch Kit; EXTREME Series; For Dual Mass Flywheel
- Disc Diameter:
- 250
- Disc Material:
- Ceramic
- Disc Style:
- 4-paddle
- Flywheel Included:
- No
- Hub Style:
- Rigid
- Input Shaft Diameter:
- 1.25
- Input Spline Quantity:
- 14
- Mounting Hardware Included:
- No
- Part Number:
- sbcK16093-SS-X-DMF
- Pilot Bushing Included:
- Yes
- Pilot Bushing Material:
- Steel
- Pressure Plate Style:
- Diaphragm
- Prop 65 Yes/No:
- No
- Quantity:
- Sold as a kit
- Throwout Bearing Included:
- Yes
- Throwout Bearing Style:
- Standard
- Title:
- South Bend Clutch Stage 4 Extreme Clutch Kit
- Torque Rating:
- 795ft/lbs
Reference Information
| Brand Name/s | South Bend Clutch |
|---|---|
| StreetFX SKU | sbcK16093-SS-X-DMF |
| SFX Item ID | 4423137 |
| Supplier Item Code | 4423137 |
| Manufacturer SKU | K16093-SS-X-DMF |
| Manufacturer UPC | 840416320268 |
| Alternative References | 3.0L |
