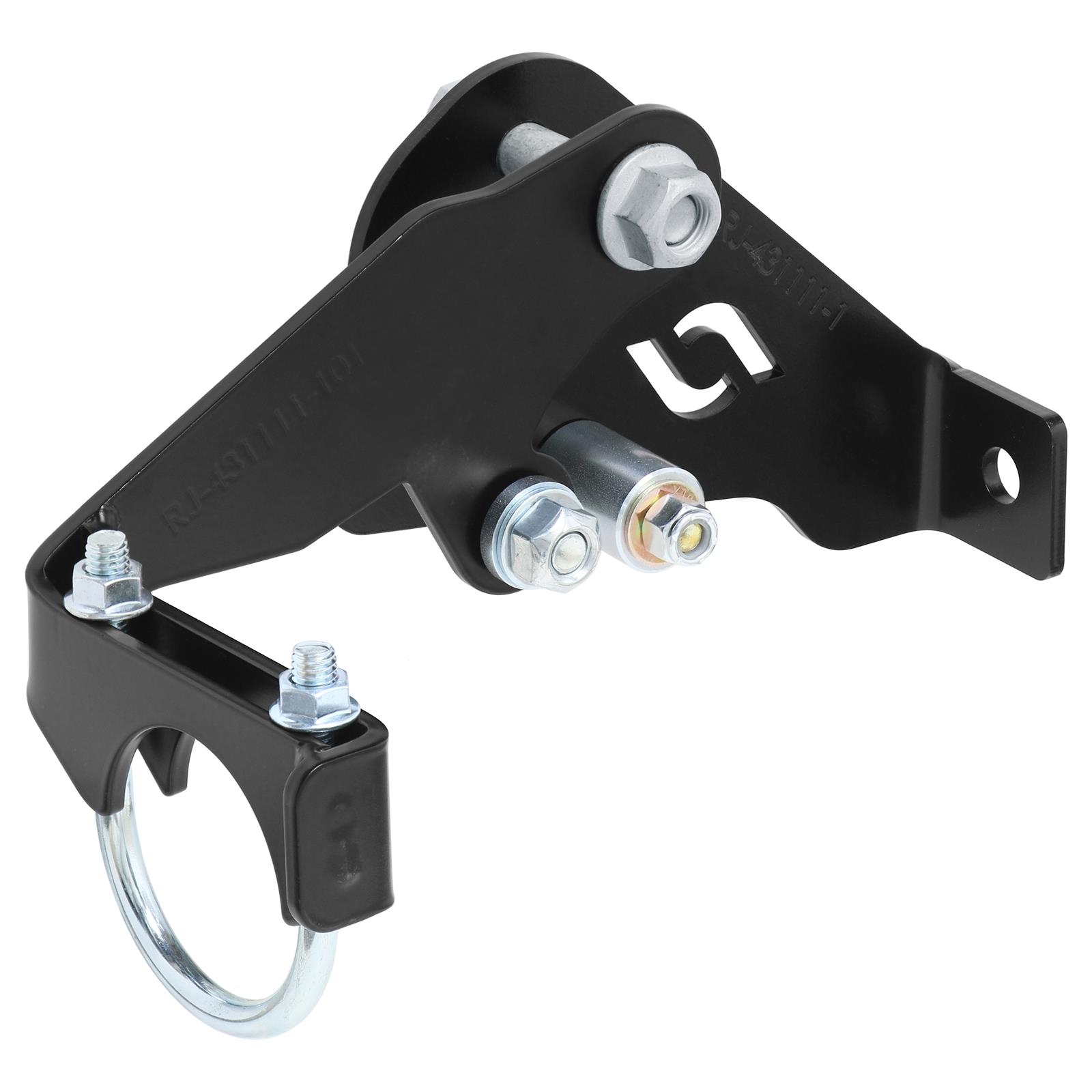

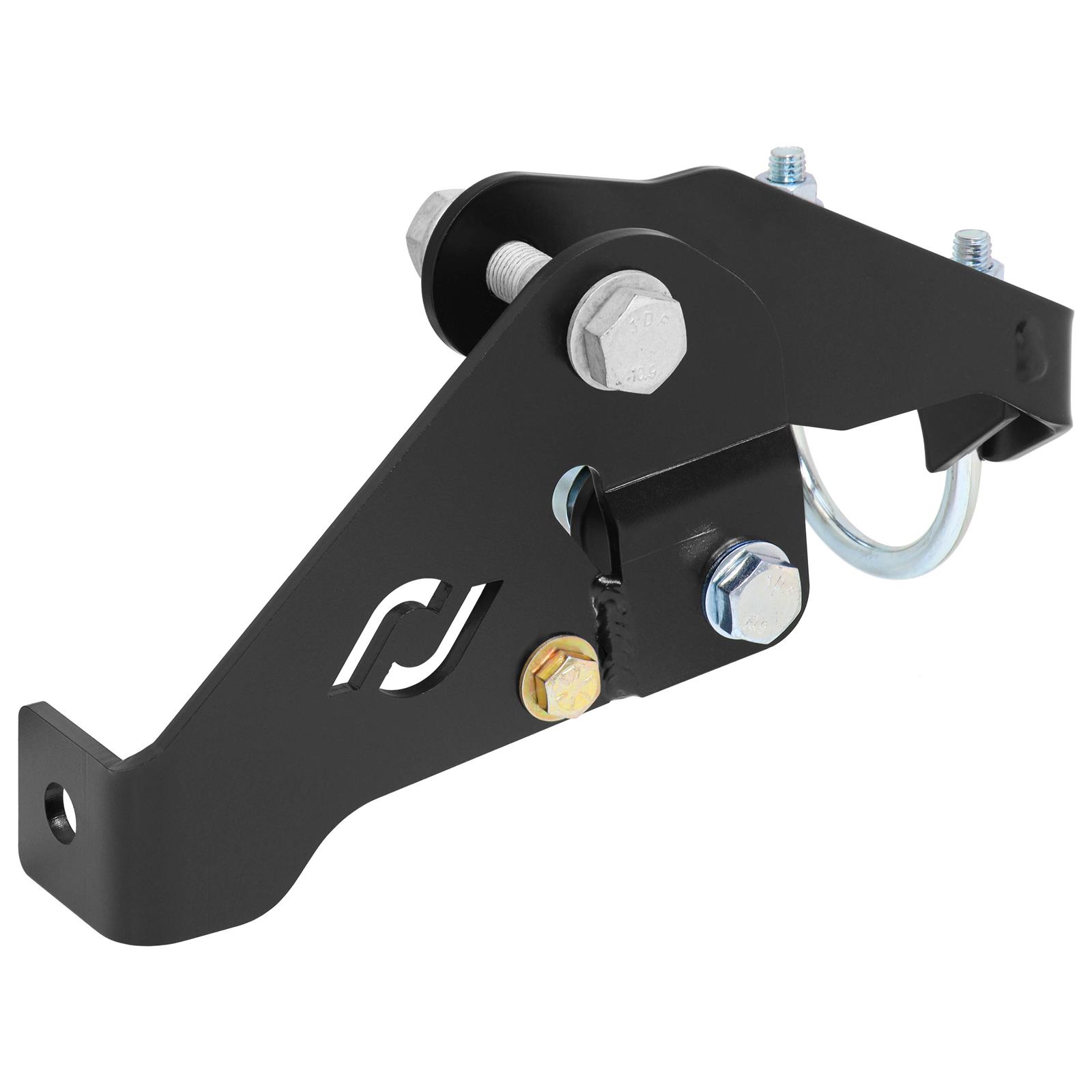

RockJocks Trac Bar Relocation and Steering Stabilizer Mount Axle Bracket Kit for JK Wrangler and Unlimited vehicles is designed specifically to be used in conjunction with our High Steer Knuckles. Given the dramatic changes in geometry high steer knuckles impose, this axle bracket easily bolts on to your factory axle and provides you with geometry correction and more up-travel by accepting the longer RockJock JL/JT Trac Bar as well moving the Trac Bars mounting point up 2 in. to prevent bump steer. The stabilizer shock mount portion of the bracket gives you a dramatically raised, easy bolt-up anchor point for a JL/JT spec. steering stabilizer shock (allows for more steering radius), that sets the shock at a considerably higher position than stock, to correct its geometery and protect it from rocks! We recommend buying this bracket in our complete RJ-430001-103 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	rokRJ-430001-103	RockJock JK Wrangler Unlimited 4Dr Currectlync High Steer Kit (For Stab. Shock & JL/JT Trac Bar) (1x rokRJ-9120FJLF, 1x rokRJ-441002-101, 1x rokJK-9704DL-T, 1x rokRJ-437100-101, 1x rokRJ-432103-101, 1x rokRJ-431111-103)

• For A Successful Finished Install Of This Kit; We Recommend The Use Of Our RJ-441002-101 Tie Rod Clamp Bracket
• For Use In Conjunction With Our RJ-441002-101 Stabilizer Shock Tie Rod Clamp Bracket Kit
• For Use On Any Factory JK Front Differential [Dana 30 Or 44] In Conjunction With Our High Steer Kit
• Incl. All Necessary Hardware And Step-By-Step Instructions
• Incl. Trac Bar And Stabilizer Shock Relocation Bracket
• Moves Stock Steering Stabilizer Shock Mounting Point Upward For Correct; Matched Geometry To The Tie
• Relocates Trac Bar Mounting Hole 2 in. Higher Than Stock
• This Bracket Does Not Work With Twin Tube And Thru-Rod Dampers As They Will Intersect With Other Components
• This Kit Requires The Use Of Either A Factory JL/JT Stabilizer Shock Or Specifically Bilstein B8 5100 Series Stock
• We Recommend Buying This Bracket Kit In Our Complete RJ-430001-103 High Steer Knuckle Kit
• With Regards To Differential Cover Clearance; This System Clears Fine With An OEM Cover
