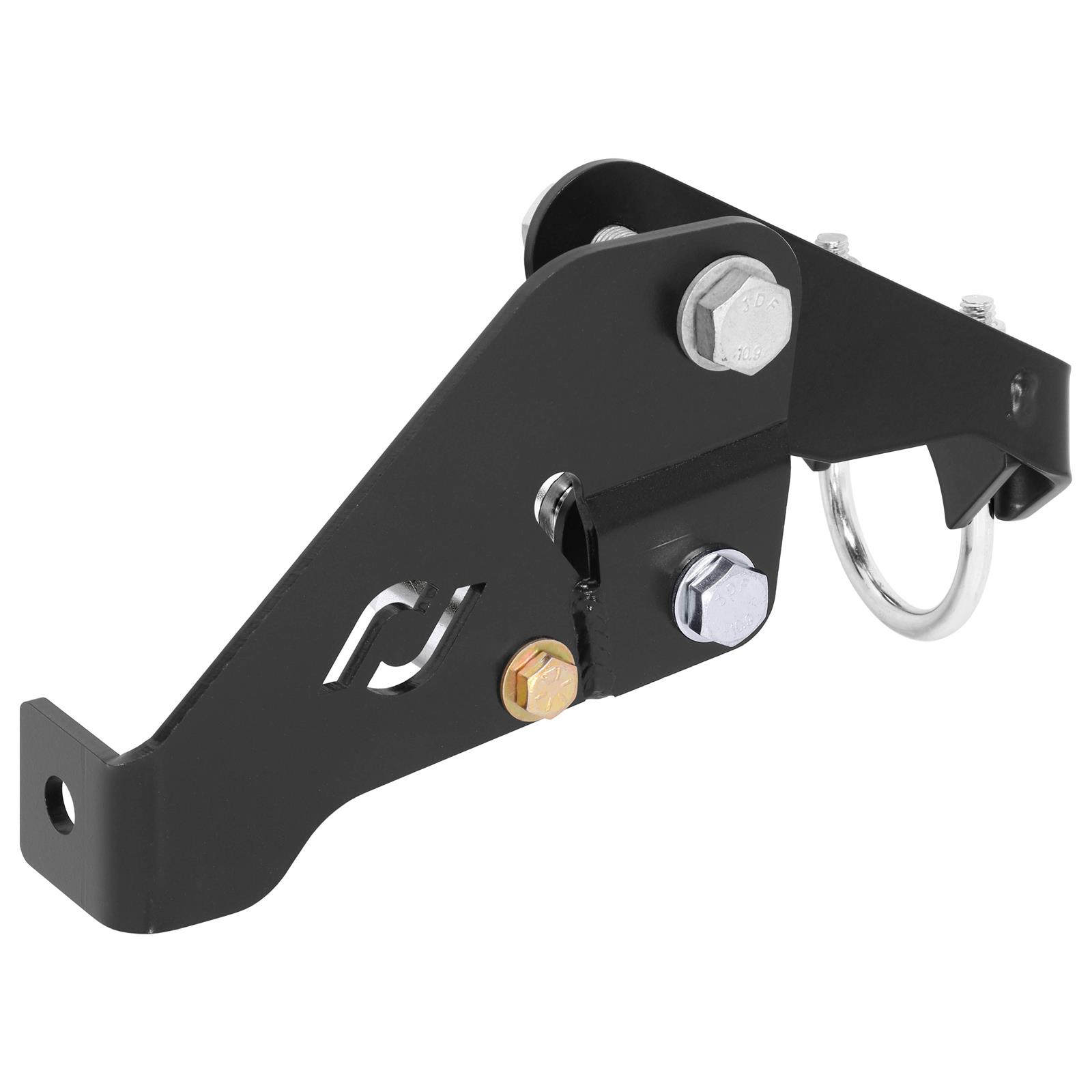

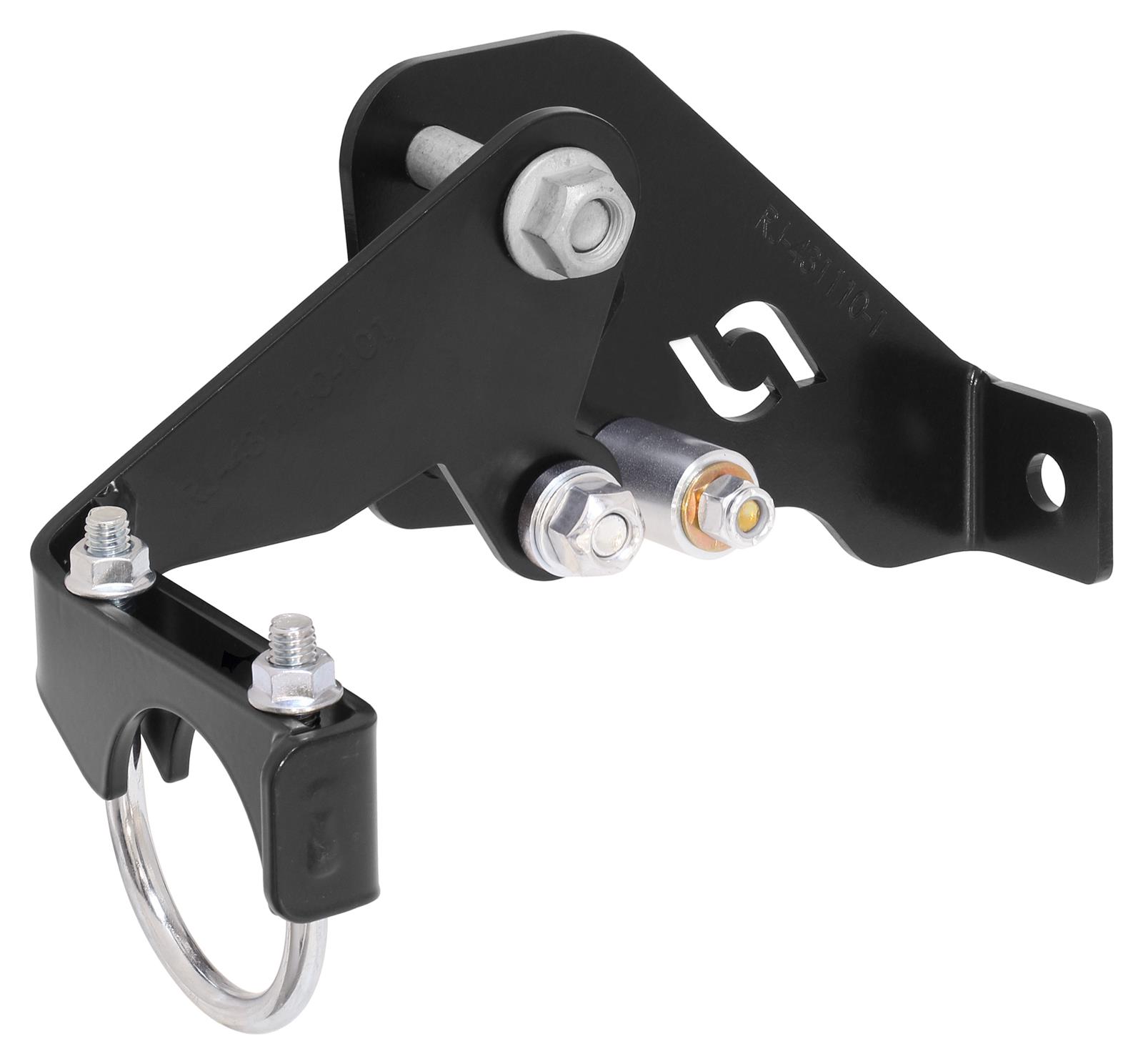

RockJock JK Wrangler Unlimited 4Dr High Steer Front Trac Bar & Stabilizer Shock Relocation Bracket
RockJock JK Wrangler Unlimited 4Dr High Steer Front Trac Bar & Stabilizer Shock Relocation Bracket
A$410.03
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
RockJocks Trac Bar Relocation and Steering Stabilizer Mount Axle Bracket Kit for JK Wrangler and Unlimited vehicles is designed specifically to be used in conjunction with our High Steer Knuckles. Given the dramatic changes in geometry high steer knuckles impose, this axle bracket easily bolts on to your factory axle and provides you with geometry correction for your factory or aftermarket replacement JK trac bar, raising its mounting point 2 in., to prevent you from incurring any bump steer after installing the high steer knuckles. The stabilizer shock mount portion of the bracket gives you a dramatically raised, easy bolt-up stabilizer shock anchor point that sets the shock at a considerably higher position than stock, to correct its geometery and protect it from rocks! We recommend buying this bracket in our complete RJ-430001-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. Use of their RJ-107101-101 adjustable front bump stop kit is strongly encouraged to allow for maximum up-travel, as engineered.
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
 |
rokRJ-430001-101 | RockJock JK Wrangler Unlimited (4-Door) Currectlync High Steer Knuckle Kit (For Stabilizer Shock) (1x rokRJ-441002-101, 1x rokJK-9704DL-T, 1x rokRJ-437100-101, 1x rokRJ-432103-101, 1x rokRJ-431110-103) |
Part Type
Steering Stabilizer Brackets
Features
- For Use In Conjunction With Our RJ-441002-101 Stabilizer Shock Tie Rod Clamp Bracket Kit
- For Use On Any Factory JK Front Differential [Dana 30 Or 44] In Conjunction With Our High Steer Kit
- Moves Stock Steering Stabilizer Shock Mounting Point Upward For Correct; Matched Geometry To The Tie Rod
- Relocates Trac Bar Mounting Hole 2 in. Higher Than Stock
Specifications
- Product Attributes - Brand
- Rock Jock
- Product Attributes - Manufacturer's Part Number
- RJ-431110-103
- Product Attributes - Part Type
- Steering Stabilizer Brackets
- Product Attributes - Product Line
- Rock Jock Trac Bar Relocation and Steering Stabilizer Shock Mount Brackets
- Product Attributes - UPC
- 810038158723
- Product Attributes - Steering Stabilizer Bracket Material
- Steel
- Product Attributes - Steering Stabilizer Bracket Finish
- Black powdercoated
- Product Attributes - Steering Stabilizer Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with Rock Jock high steer knuckles.
Reference Information
| Brand Name/s | Rockjock |
|---|---|
| StreetFX SKU | rokRJ-431110-103 |
| SFX Item ID | 4306147 |
| Supplier Item Code | 4306147 |
| Manufacturer SKU | RJ-431110-103 |
| Manufacturer UPC | 810038158723 |
| Alternative References | RKJ-RJ-431110103, 4Dr |
