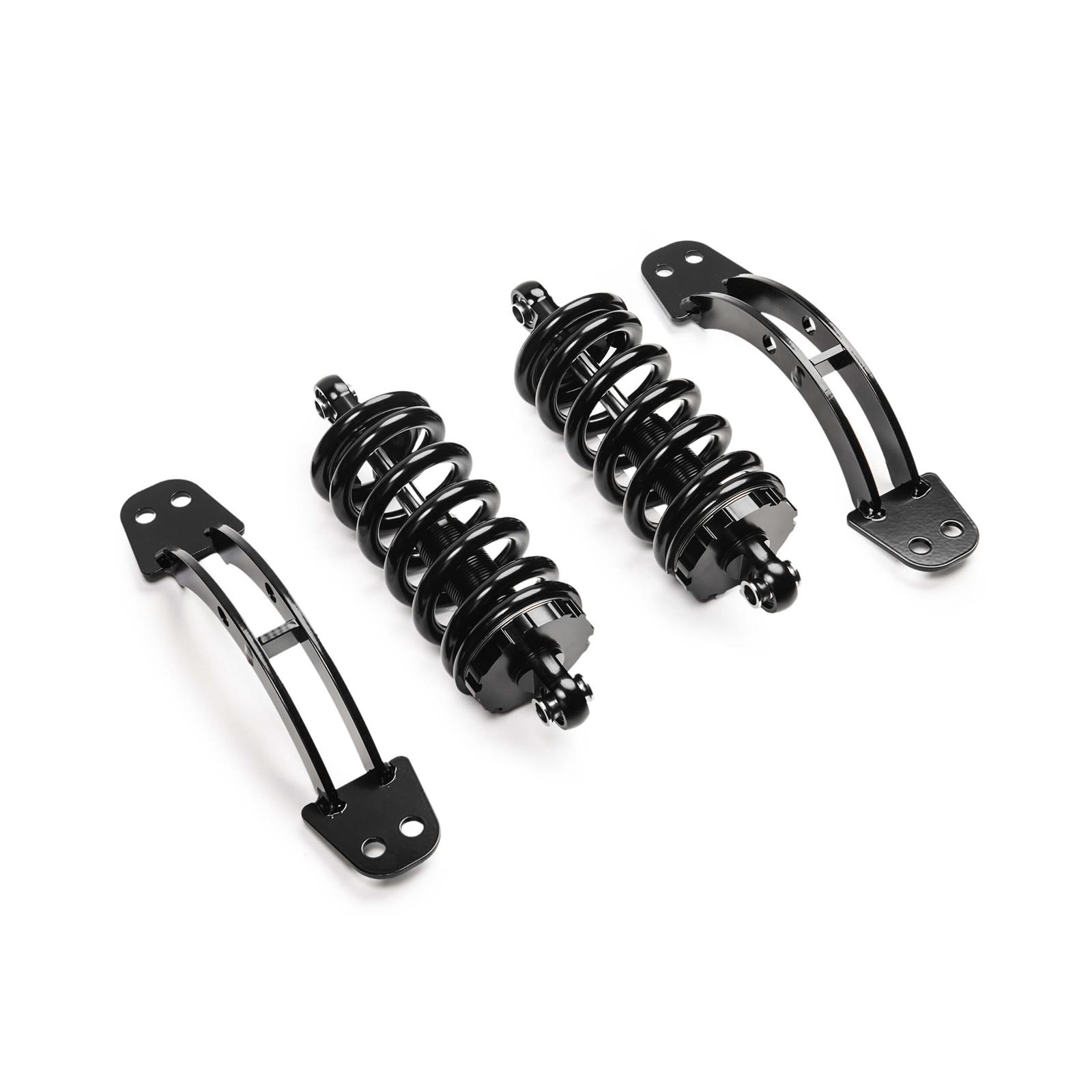

QA1 82-92 GM F-Body w/ QA1 K-Member Spring Sliders - 650lb
QA1 82-92 GM F-Body w/ QA1 K-Member Spring Sliders - 650lb
Description
Installing QA1's spring slider kits for the 1982-1992 Chevrolet Camaro and Pontiac Firebird (F-body) significantly upgrades the front end for improved handling and track performance. The spring slider assembly utilizes QA1 lower control arms and the tubular QA1 K-member to retain the factory inboard spring locations, providing adjustable ride height, and allows for use of wide wheels and more substantial negative camber adjustments. This setup maximizes the tire contact patch during hard cornering, although it may present clearance issues with wider wheels. Some build preferences benefit from a coilover strut assembly, but if you need the heaviest spring rates and want to achieve the highest level of negative camber, the spring slider is a great solution. By keeping the springs in the inboard location, QA1 can use the strength of the frame and lower control arm to support very heavy spring rates for the most aggressive handling applications. QA1's commitment to thoughtful product design is evident in every fully bolt-in kit they produce, which guarantees a hassle-free installation process. Pair this QA1 spring slider kit along with QA1 struts and caster/camber plates for your application to achieve maximum negative camber for the best handling performance. Select the QA1 spring slider kit designed for your application needs.
Features and benefits:
* Inboard spring relocation enhances tire clearance and supports the use of wider wheels for improved handling
* Adjustable ride height allows customization to meet specific performance needs, ensuring optimal handling and comfort
* Aggressive camber adjustments maximizes negative camber for better tire contact and cornering performance
* Heavy-duty spring support utilizes the strength of the frame and lower control arm to accommodate the heaviest spring rates for high-performance applications
* Bolt-In installation simplifies the installation process, providing a hassle-free upgrade experience with a fully bolt-in design
Fitment Notes: Requires QA1 K-member and QA1 Pro Touring lower control arms (both sold separately). This is not a shock absorber. This spring slider kit requires the use of a strut for alignment and dampening.
Product Overview
PRODUCT OVERVIEW Installing QA1's spring slider for the 1982-1992 Chevrolet Camaro and Pontiac Firebird (F-body) significantly upgrades the front end for improved handling and track performance. The spring slider assembly utilizes QA1 lower control arms and the tubular QA1 K-member to retain the factory inboard spring locations, provide adjustable ride height, and allow for use of wide wheels and more substantial negative camber adjustments. This setup maximizes the tire contact patch during hard cornering, although it may present clearance issues with wider wheels. INCREASED TIRE CLEARANCE Some build preferences benefit from a coilover strut assembly, but if you need the heaviest spring rates and want to achieve the highest level of negative camber, the spring slider is a great solution. By keeping the springs in the inboard location, we can use the strength of the frame and lower control arm to support very heavy spring rates for the most aggressive handling applications. Pair this with QA1 struts and caster/camber plates to achieve maximum negative camber for the best handling performance. FITMENT NOTES Requires QA1 K member Requires QA1 pro touring lower control arms This is not a shock absorber. Requires the use of a strut for alignment and dampening
Features and Benefits
- Inboard Spring Relocation: Enhances tire clearance and supports the use of wider wheels for improved handling
- Adjustable Ride Height: Allows customization to meet specific performance needs, ensuring optimal handling and comfort
- Aggressive Camber Adjustments: Maximizes negative camber for better tire contact and cornering performance
- Heavy-Duty Spring Support: Utilizes the strength of the frame and lower control arm to accommodate the heaviest spring rates for high-performance applications
- Bolt-In Installation: Simplifies the installation process, providing a hassle-free upgrade experience with a fully bolt-in design
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 82-92 GM F-Body w/ QA1 K-Member Spring Sliders - 650lb |
| Manufacturer Part Number: | SS304-07650 |
| Part Number: | qapSS304-07650 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Coilover Adjustable Spring Lowering Kit SS304-07650 |
| UPC: | 00806990176523 |
Kit Options
This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.
Kit option/s:
| Thumb | SKU | Kit Title |
|---|---|---|
![]() |
qapHK42-GMF3 | QA1 82-92 GM F-Body Level 2 Full Vehicle Handling Kit (1x qap5222, 1x qap5275, 1x qap7888-109, 1x qapCC116, 2x qapHD06, 1x qap5234, 1x qap52525, 1x qap52025, 1x qap52121, 1x qap52122, 1x qap52825, 1x qap52835, 1x qapBAX106, 1x qapRCK52628, 1x qapSS304-07650, 1x qap52096) |
Part Type
Coilover Adjustable Spring Lowering Kit
Features
- Adjustable Ride Height: Allows customization to meet specific performance needs, ensuring optimal handling and comfort
- Aggressive Camber Adjustments: Maximizes negative camber for better tire contact and cornering performance
- Bolt-In Installation: Simplifies the installation process, providing a hassle-free upgrade experience with a fully bolt-in design
- Heavy-Duty Spring Support: Utilizes the strength of the frame and lower control arm to accommodate the heaviest spring rates for high-performance applications
- Inboard Spring Relocation: Enhances tire clearance and supports the use of wider wheels for improved handling
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- SS304-07650
- Product Attributes - Part Type
- Spring Sliders
- Product Attributes - Product Line
- QA1 Spring Slider Kits
- Product Attributes - UPC
- 806990176523
- Product Attributes - Spring Slider Material
- Steel
- Product Attributes - Spring Slider Finish
- Black
- Product Attributes - Adjustable
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- 650Ib/in. spring rate. Requires QA1 K-member and QA1 Pro-Touring control arms. Fits 1982-92 GM F body.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapSS304-07650 |
| SFX Item ID | 4096265 |
| Supplier Item Code | 4096265 |
| Manufacturer SKU | SS304-07650 |
| Manufacturer UPC | 806990176523 |
| Alternative References | qa1, QA1SS304-07650, 650lb |
