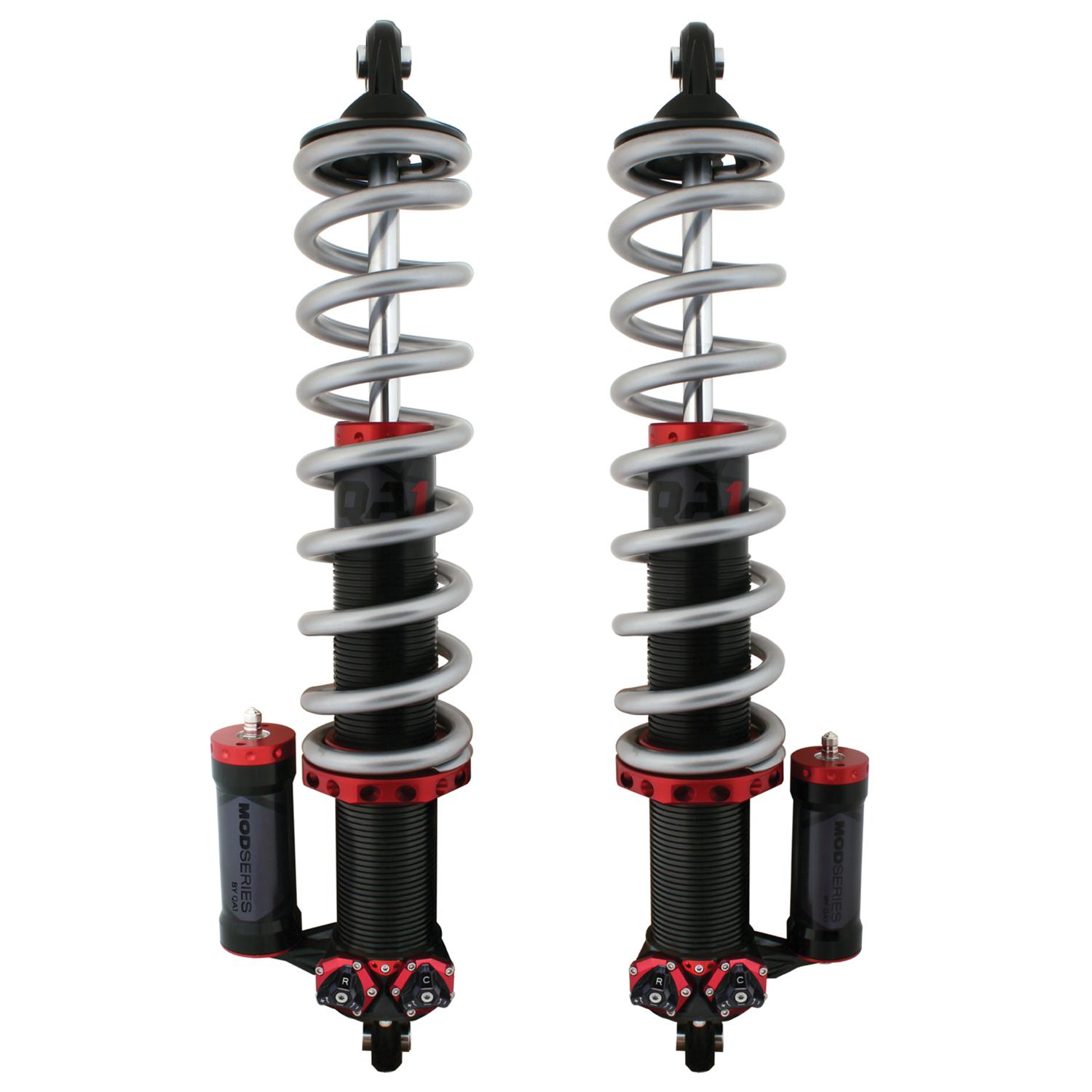

QA1 65-70 GM B-Body Pro Rear Coil-Over System - MOD Series - Medium - 200lbs/in - Aluminum
QA1 65-70 GM B-Body Pro Rear Coil-Over System - MOD Series - Medium - 200lbs/in - Aluminum
A$4,599.60
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Don't be limited to adjustments! Completely re-valve in minutes with the QA1 MOD Series Pro coilover systems. Designed specifically to meet the demands required by today's high performance drag race and handling/pro-touring cars, QA1's multi-patent-pending MOD Series shocks will transform the way racers respond to changing track conditions and configurations. The key element to this tunability is QuickTune Technology: dry modular valve packs that can easily be swapped out, all while the shocks remain on the car. An industry first, MOD Series shocks can easily be re-valved without interrupting the oil path or opening up the shock for debris and air contamination. Medium compression and rebound valve packs come standard; soft or firm compression and rebound valve packs are also available.
Once the desired valving is in place, the unique double-adjustable design (with adjustable low-speed bleed) allows for fully independent control over the compression and rebound characteristics. With all these adjustability options, MOD Series shocks achieve an expansive force curve capability and an unprecedented level of tunability. The shocks also feature mounting adjustability to accommodate a variety of vehicles and mounting configurations. The nitrogen-charged canister is available in a piggyback or remote configuration for ease of installation in tight areas, and the base eyelet is indexable, so you can unbolt and reattach it at the angle you need for the best shock and canister placement. Like all QA1 shocks, MOD Series coilovers are 100 percent dyno-tested and serialized. Order the kit recommended for your vehicle.
Product Overview
QA1 offers bolt-in Rear Coil-Over Conversion Kits for 1965-1970 Chevy B-Bodies. These kits include specially designed USA made mounting brackets and single or double adjustable aluminum shocks, springs and all necessary hardware. Single adjustable shocks provide 18 positions of simultaneous rebound and compression adjustment while QA1's double adjustable shocks provide 18 positions of compression adjustment and 18 positions of rebound adjustment, for a total of 324 possible valving combinations. These shocks also utilize a fully threaded body that allows you to adjust your ride height for the perfect stance or to finely tune the weight balance for superior handling. Specially designed for QA1's Pro Coil Systems, the American-made lightweight high travel springs have fewer coils and a smaller wire diameter, resulting in increased travel due to the larger distance between the coils. They reduce unsprung weight and react faster, optimizing suspension performance. Multiple spring rate options are also available and have been successfully tested in various applications, from casual street driving to hard core race applications. With our highly popular adjustable front coil-over kits and the addition of the rear coil-over conversion kit, you can now get a complete suspension makeover for both ends of the vehicle. Made in the U.S.A., Easy, Bolt-In Installation, No Cutting or Welding, Coil-Over, Ride Height Adjustable, 100% Dyno Tested and Serialized, Rebuildable and Revalveable by the QA1 Factory or QA1 Authorized Service Centers, Kit Will Lower the Vehicle, Conversion Kit Note: Later model vehicles tend to weigh more on average. Please take this into account when ordering springs. Call QA1 tech at 952.985.5675 for questions. Pro Coil Systems include:, 2 Shocks, 2 High Travel Springs, All Mounting Brackets and Hardware.
Features and Benefits
- Achieve 1/2 higher than stock down to 2.25" lower than stock.
- Ultimate balance of ride quality and performance handling with adjustable rebound and compression valving.
- Limited Lifetime Warranty for peace of mind.
- Sold as a pair.
- Proudly made in the USA.
Product Details
| Active or Passive Suspension: | Passive |
|---|---|
| Adjustable Compression: | Yes |
| Adjustable Rebound: | Yes |
| Adjustable Ride Height: | Yes |
| Assembled: | No |
| Brand: | QA1 |
| Description: | QA1 65-70 GM B-Body Pro Rear Coil-Over System - MOD Series - Medium - 200lbs/in - Aluminum |
| Grade Type: | Performance |
| Internal Construction Type: | Dual Tube |
| Manufacturer Part Number: | RCK52393 |
| Part Number: | qapRCK52393 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Remote Reservoir: | Yes |
| Spring Color: | Silver |
| Spring Material: | High Tensile Chrome Silicon |
| Title: | QA1 Shock Absorber and Coil Spring Assembly RCK52393 |
| UPC: | 806990162076 |
Part Type
Coilover Set
Features
- Achieve 1/2 higher than stock down to 2.25" lower than stock.
- Limited Lifetime Warranty for peace of mind.
- Proudly made in the USA.
- Sold as a pair.
- Ultimate balance of ride quality and performance handling with adjustable rebound and compression valving.
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- RCK52393
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- QA1 MOD Series Pro Coilover Systems
- Product Attributes - UPC
- 806990162076
- Product Attributes - Coilover Kit Position
- Rear
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 576
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Twin-tube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs/in.)
- 200 lbs./in.
- Product Attributes - Suspension Height Adjustment
- 0.0-2.0 in. lowered
- Product Attributes - Gas Charged
- No
- Product Attributes - Extended Length (in.)
- 16.88
- Product Attributes - Collapsed Length (in.)
- 11.63
- Product Attributes - Upper Mount
- Eyelet
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Body Diameter (in.)
- 3.000
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Black
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Spring Finish
- Gray/Silver
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapRCK52393 |
| SFX Item ID | 4095224 |
| Supplier Item Code | 4095224 |
| Manufacturer SKU | RCK52393 |
| Manufacturer UPC | 806990162076 |
| Alternative References | qa1, QA1-RCK52393, 200lbs/in |
