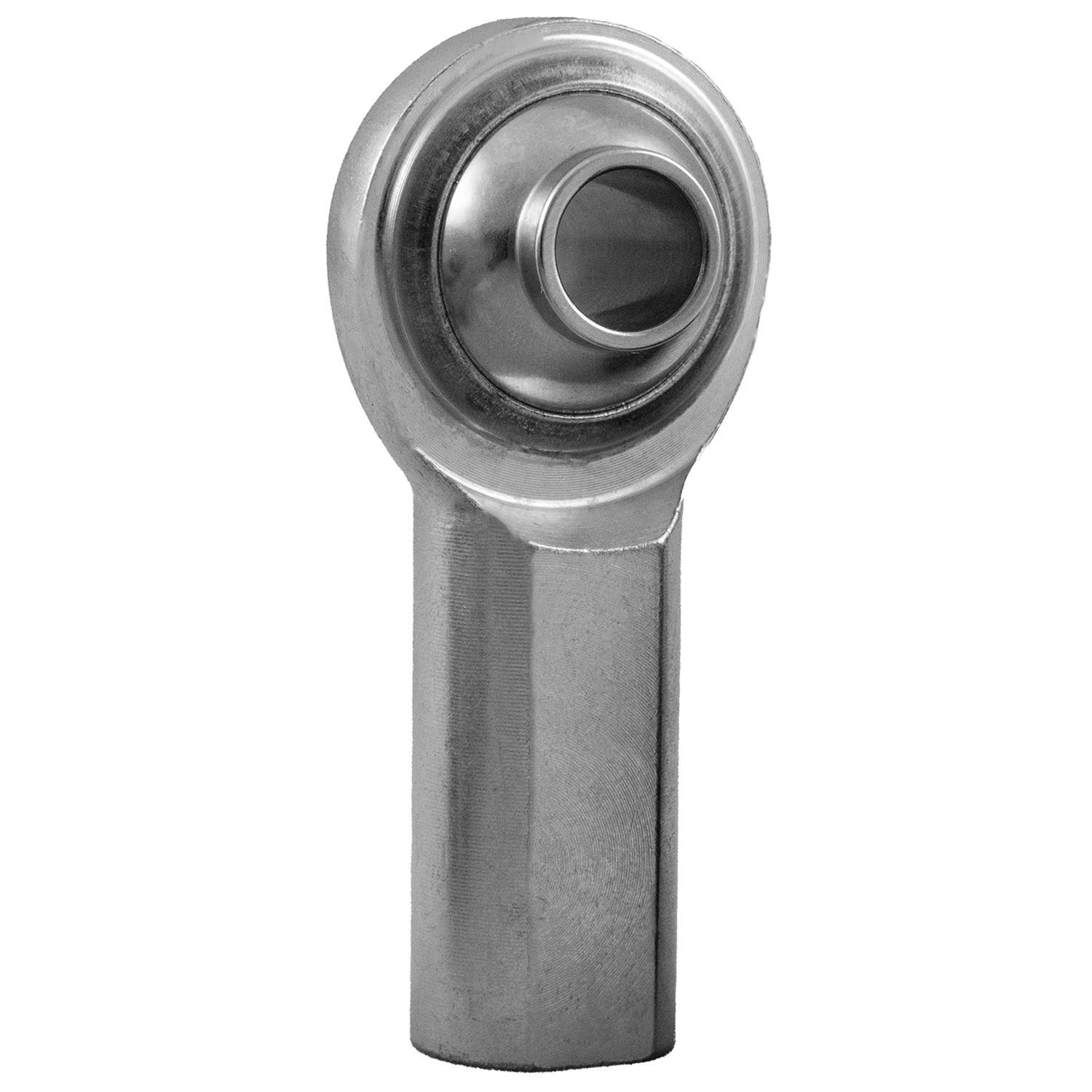

QA1 PCY Series 2-Pc Rod End - Female/Left Hand - .75in Bore x 3/4-16 - Hi-Misalign - Steel w/PTFE
QA1 PCY Series 2-Pc Rod End - Female/Left Hand - .75in Bore x 3/4-16 - Hi-Misalign - Steel w/PTFE
A$88.93
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 PCY Series rod ends are for applications requiring high misalignment. These rod ends offer superior load ratings over carbon steel 2-piece rod ends, and PCY versions automatically include PTFE lining. Offering the highest misalignment available in the industry, QA1 PCY Series rod ends are the ideal choice.
Features of the PCY Series:
* Ball is 52100 bearing steel, heat-treated, hard chrome plated, and precision ground
* Body is chromoly steel, heat-treated, and PTFE lined
* Available in male or female, right hand or left hand, and several bore and thread sizes
Product Overview
QA1 offers its 2-piece PCYF-T Chromoly Steel Series rod ends for applications requiring high misalignment. These zinc coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYF-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYF-T Series. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The body is chromoly steel that has been heat treated and zinc coated. There is also a self-lubricating PTFE liner.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 PCY Series 2-Pc Rod End - Female/Left Hand - .75in Bore x 3/4-16 - Hi-Misalign - Steel w/PTFE |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.75 |
| Manufacturer Part Number: | PCYFL12T |
| Outside Diameter: | 2 |
| Part Number: | qapPCYFL12T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing PCYFL12T |
| UPC: | 806990075710 |
| Width: | 1.5 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- PCYFL12T
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 PCY Series Rod Ends
- Product Attributes - UPC
- 806990075710
- Product Attributes - Rod End Thread Size
- 3/4 in.-16 LH
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 0.750 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE lined
- Product Attributes - Thread Length
- 1.785 in.
- Product Attributes - Rod End Head Diameter
- 2.000 in.
- Product Attributes - Rod End Head Width
- 1.500 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 3.375 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 1.500 in.
- Product Attributes - Rod End Misalign Angle
- 61 degrees
- Product Attributes - Rod End Static Load Capacity
- 27,010 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapPCYFL12T |
| SFX Item ID | 4095160 |
| Supplier Item Code | 4095160 |
| Manufacturer SKU | PCYFL12T |
| Manufacturer UPC | 806990075710 |
| Alternative References | qa1, QA1-PCYFL12T, 2-Pc, .75in |
