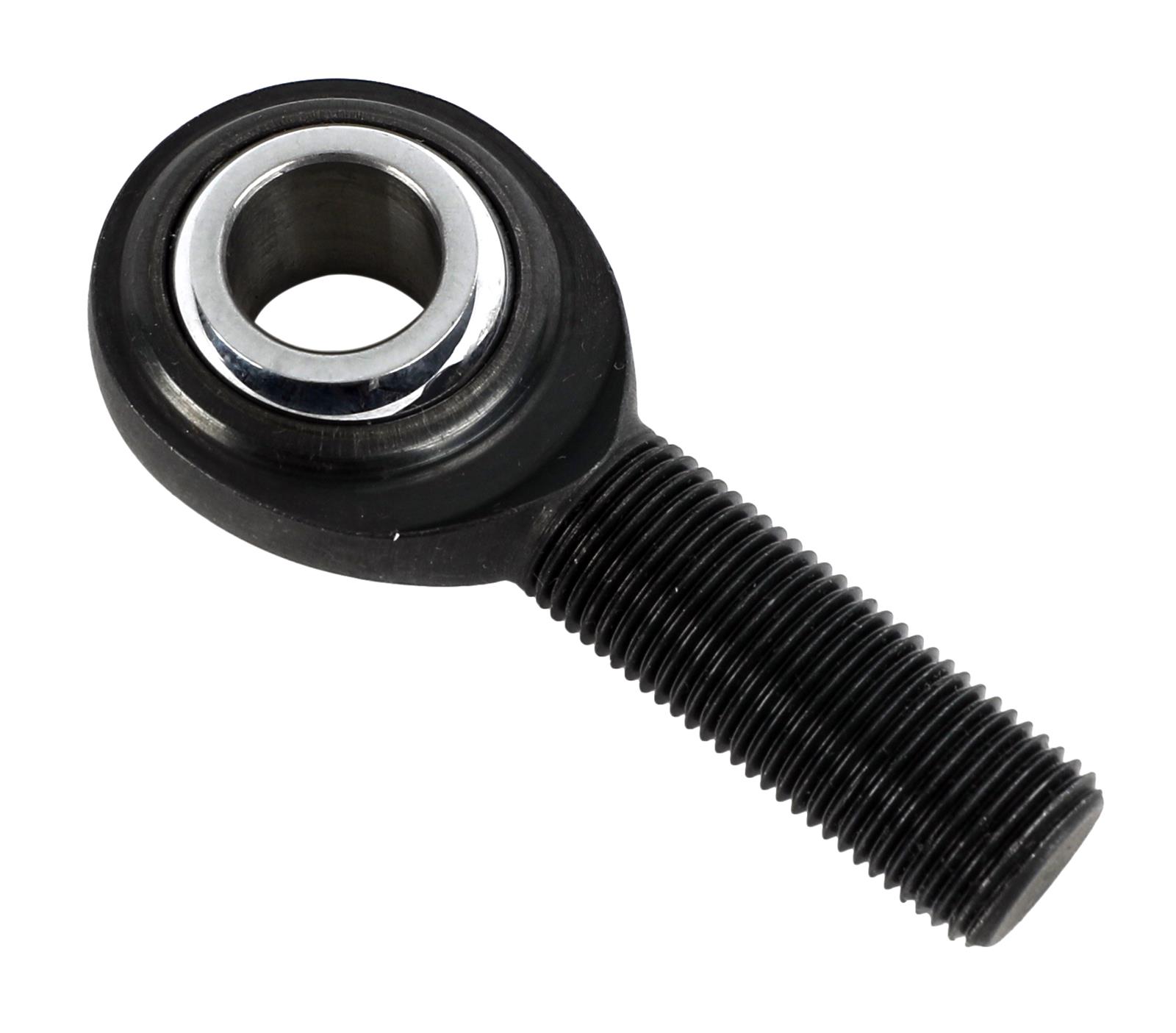

QA1 PC Series 2-Pc Rod End - Male/Left Hand - .625in Bore x 5/8-18 - Alloy Steel w/PTFE
QA1 PC Series 2-Pc Rod End - Male/Left Hand - .625in Bore x 5/8-18 - Alloy Steel w/PTFE
A$46.29
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 PC Series rod ends feature a 2-piece, chromoly steel design and a heat-treated, black oxide coated body for corrosion resistance. The ball is heat-treated as well with a precision-ground, hard chrome plated finish. QA1 PC Series rod ends are built to last.
Product Overview
For a variety of options in a two-piece design, QA1 offers its PCM-T Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE lined.The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The body is chromoly steel that has beed heat treated and black oxide coated. There is also a self-lubricating PTFE liner.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 PC Series 2-Pc Rod End - Male/Left Hand - .625in Bore x 5/8-18 - Alloy Steel w/PTFE |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.625 |
| Manufacturer Part Number: | PCML10T |
| Outside Diameter: | 1.5 |
| Part Number: | qapPCML10T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing PCML10T |
| UPC: | 806990003164 |
| Width: | 0.75 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- PCML10T
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 PC Series Rod Ends
- Product Attributes - UPC
- 806990003164
- Product Attributes - Rod End Thread Size
- 5/8 in.-18 LH
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 0.625 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE lined
- Product Attributes - Thread Length
- 1.625 in.
- Product Attributes - Rod End Head Diameter
- 1.500 in.
- Product Attributes - Rod End Head Width
- 0.750 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 2.625 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.750 in.
- Product Attributes - Rod End Misalign Angle
- 26 degrees
- Product Attributes - Rod End Static Load Capacity
- 15,200 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Black oxide
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapPCML10T |
| SFX Item ID | 4095113 |
| Supplier Item Code | 4095113 |
| Manufacturer SKU | PCML10T |
| Manufacturer UPC | 806990003164 |
| Alternative References | qa1, QA1PCML10T, 2-Pc, .625in |
