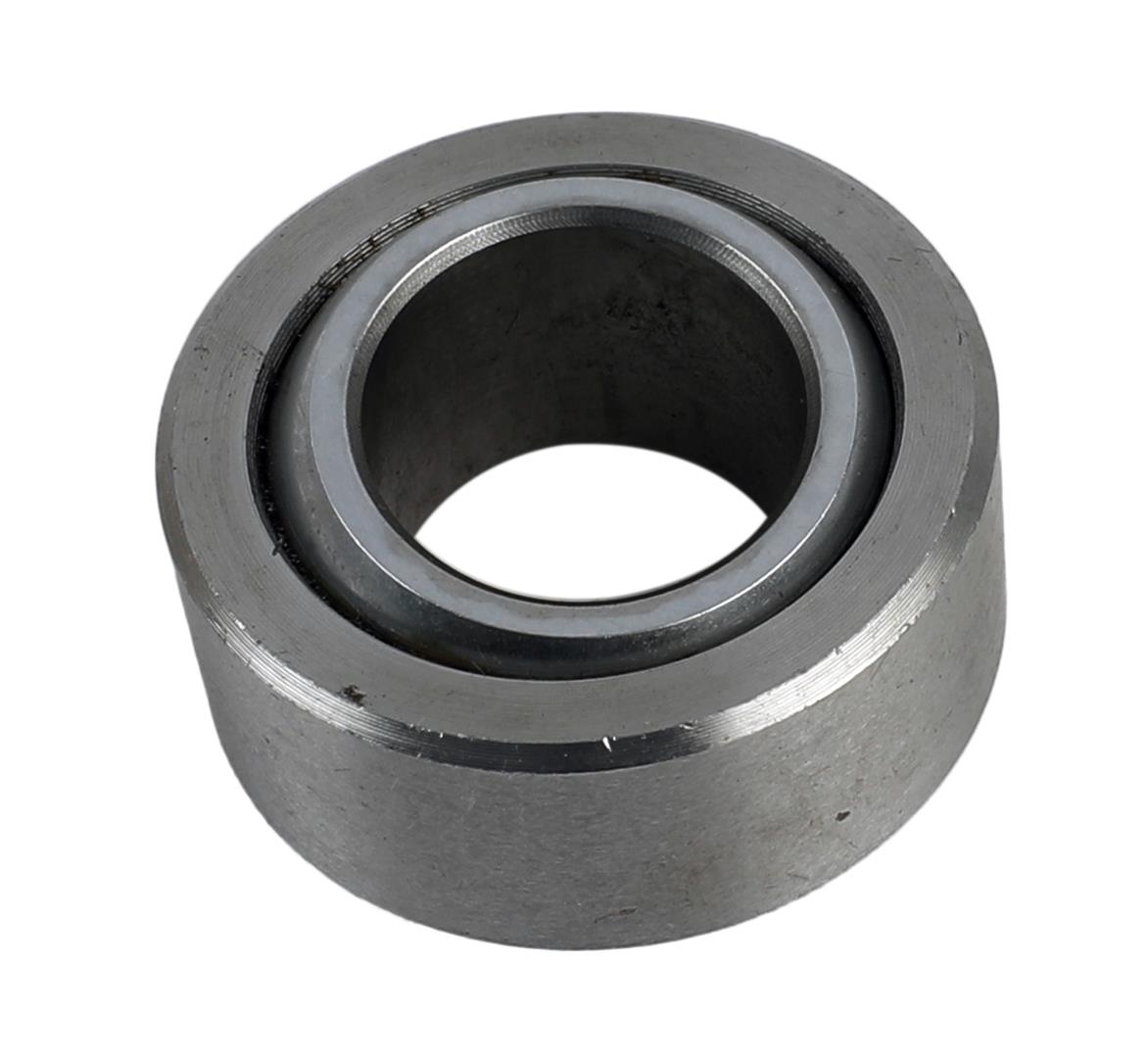

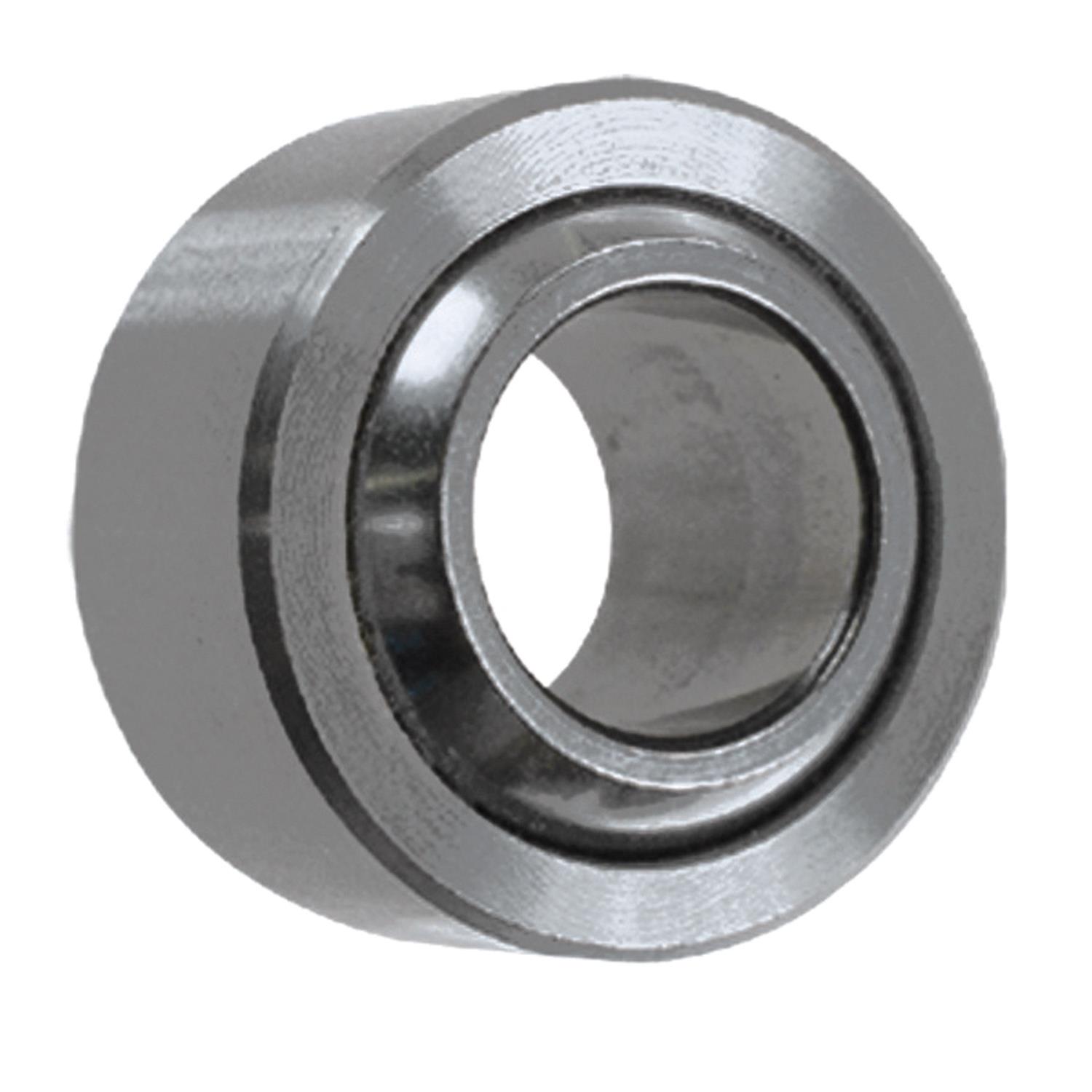

QA1 NPB-T Narrow Series Bearing - 3/4in Bore - Heat Treated Chrome Plated Stainless Steel w/PTFE
QA1 NPB-T Narrow Series Bearing - 3/4in Bore - Heat Treated Chrome Plated Stainless Steel w/PTFE
A$64.84
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
For a precision spherical bearing, select QA1 NPB-T Narrow Stainless Steel Series spherical bearings. QA1 NPB-T narrow bearings feature tighter tolerances than traditional spherical bearings. They are constructed with heat-treated stainless steel races, self-lubricating PTFE liners, and heat-treated, hard chrome plated 440C stainless steel balls that are precision-ground for smooth operation. Choose the quality you want and the affordability you need for your project with QA1 NPB-T Narrow Stainless Steel series spherical bearings.
Product Overview
For a precision spherical bearing, QA1's NPB-T Narrow Stainless Steel Series spherical bearings are the perfect selection. Each bearing is made from stainless steel with a PTFE liner and has tighter tolerances than traditional spherical bearings. The ball is made from 440C stainless steel that has been heat treated, hard chrome plated and precision ground. The PTFE liner is self-lubricating, and the race is made from heat treated stainless steel.
Features and Benefits
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 NPB-T Narrow Series Bearing - 3/4in Bore - Heat Treated Chrome Plated Stainless Steel w/PTFE |
| Inside Diameter: | 0.75 |
| Manufacturer Part Number: | NPB12T |
| Outside Diameter: | 1.4375 |
| Part Number: | qapNPB12T |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Bearing NPB12T |
| UPC: | 806990009401 |
Part Type
Suspension Bearing
Features
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
- Wide selection for a variety of uses
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- NPB12T
- Product Attributes - Part Type
- Rod End Receiver Bearings
- Product Attributes - Product Line
- QA1 NPB-T Narrow Stainless Steel Series Spherical Bearings
- Product Attributes - UPC
- 806990009401
- Product Attributes - Receiver Race Diameter
- 1.4375 in.
- Product Attributes - Race Width
- 0.593 in.
- Product Attributes - Inner Ball Width
- 0.750 in.
- Product Attributes - Inner Ball Diameter
- 0.7500 in.
- Product Attributes - Rod End Ball Diameter
- 1.187 in.
- Product Attributes - Chamfer Reference
- 0.044 in.
- Product Attributes - Rod End Misalign Angle
- 8 degrees
- Product Attributes - ULT. Static Radial Load (lbs.)
- 46,400 lbs.
- Product Attributes - Rod End Bearing Material
- Stainless steel
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- The bearing and race are stainless steel. This is a PTFE lined self lubricating bearing.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapNPB12T |
| SFX Item ID | 4095101 |
| Supplier Item Code | 4095101 |
| Manufacturer SKU | NPB12T |
| Manufacturer UPC | 806990009401 |
| Alternative References | qa1, QA1-NPB12T, 3/4in |
