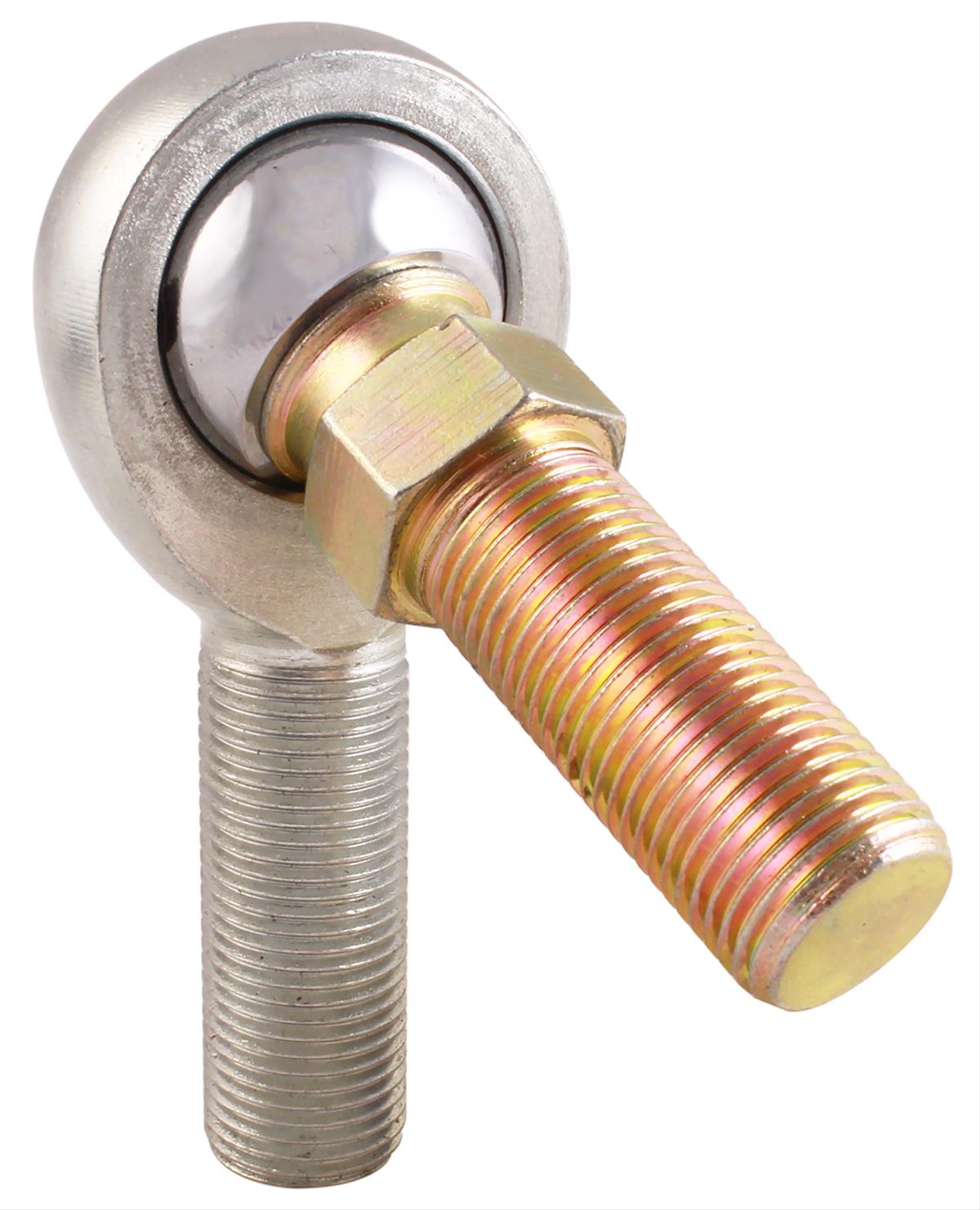

QA1 X Series Endura Rod End - Male/Right Hand - 10mm Bore x M10x1.5 w/Stud - Alloy Steel
QA1 X Series Endura Rod End - Male/Right Hand - 10mm Bore x M10x1.5 w/Stud - Alloy Steel
A$44.23
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Need strength and durability for your build? QA1 Endura MX Series rod ends are the connections needed to secure your desired performance. MX heavy-duty metric rod ends are completely self-sealing and self-lubricating. They feature bodies crafted from heat-treated and coated chromoly steel with reinforced nylon/PTFE-lined, injection-molded races—and precision-ground, heat-treated, and hard chrome plated 52100 bearing steel balls. Their increased cross-sectional thickness offers greater tensile strength and metal-to-metal support for heavy shock loads. Rugged and strong, QA1 Endura MX Series rod ends are your links to a successful project.
Product Overview
QA1 X Series Endura Rod End - Male/Right Hand - 10mm Bore x M10x1.5 w/Stud - Alloy Steel
Product Details
| Description: | QA1 X Series Endura Rod End - Male/Right Hand - 10mm Bore x M10x1.5 w/Stud - Alloy Steel |
|---|---|
| Part Number: | qapMXMR10S |
Part Type
Rod Ends
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MXMR10S
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 Endura MX Series Rod Ends
- Product Attributes - UPC
- 806990124081
- Product Attributes - Rod End Thread Size
- M10 x 1.5
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 10.000mm
- Product Attributes - Rod End Construction
- 1-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE lined
- Product Attributes - Thread Length
- 21.000mm
- Product Attributes - Rod End Head Diameter
- 27.000mm
- Product Attributes - Rod End Head Width
- 10.500mm
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 43.000mm
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 14.000mm
- Product Attributes - Rod End Misalign Angle
- 17 degrees
- Product Attributes - Rod End Static Load Capacity
- 14,262 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Features stud on end.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMXMR10S |
| SFX Item ID | 4095025 |
| Supplier Item Code | 4095025 |
| Manufacturer SKU | MXMR10S |
| Manufacturer UPC | 806990124081 |
| Alternative References | qa1, QA1-MXMR10S, 10mm, M10x1.5 |
