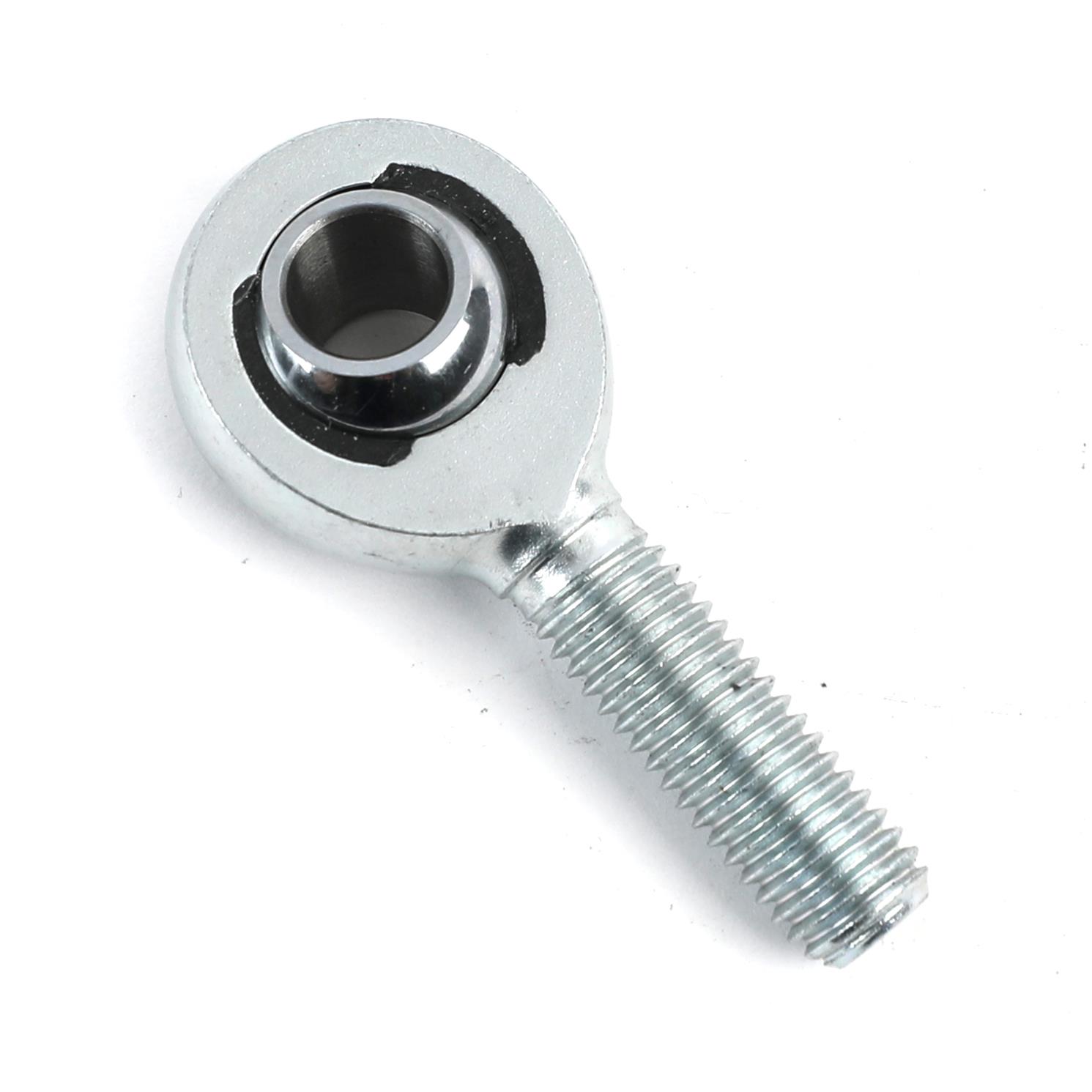

QA1 X Series Endura Rod End - Male/Left Hand - 10mm Bore x M10x1.5 - Alloy Steel
QA1 X Series Endura Rod End - Male/Left Hand - 10mm Bore x M10x1.5 - Alloy Steel
A$34.77
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Need strength and durability for your build? QA1 Endura MX Series rod ends are the connections needed to secure your desired performance. MX heavy-duty metric rod ends are completely self-sealing and self-lubricating. They feature bodies crafted from heat-treated and coated chromoly steel with reinforced nylon/PTFE-lined, injection-molded races—and precision-ground, heat-treated, and hard chrome plated 52100 bearing steel balls. Their increased cross-sectional thickness offers greater tensile strength and metal-to-metal support for heavy shock loads. Rugged and strong, QA1 Endura MX Series rod ends are your links to a successful project.
Product Overview
For the ultimate in performance rod ends, look no further than QA1's MXM Chromoly Steel Series male rod ends. These metric heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. MXM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from chromoly steel that has been heat treated and protective coated for corrosion resistance. Features metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 X Series Endura Rod End - Male/Left Hand - 10mm Bore x M10x1.5 - Alloy Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 10 |
| Manufacturer Part Number: | MXML10 |
| Outside Diameter: | 27 |
| Part Number: | qapMXML10 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing MXML10 |
| UPC: | 806990070074 |
| Width: | 14 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MXML10
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 Endura MX Series Rod Ends
- Product Attributes - UPC
- 806990070074
- Product Attributes - Rod End Thread Size
- M10 x 1.5 LH
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 10.000mm
- Product Attributes - Rod End Construction
- 1-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE lined
- Product Attributes - Thread Length
- 21.000mm
- Product Attributes - Rod End Head Diameter
- 27.000mm
- Product Attributes - Rod End Head Width
- 10.500mm
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 43.000mm
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 14.000mm
- Product Attributes - Rod End Misalign Angle
- 17 degrees
- Product Attributes - Rod End Static Load Capacity
- 14,262 lbs.
- Product Attributes - Rod End Material
- Chromoly
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMXML10 |
| SFX Item ID | 4095015 |
| Supplier Item Code | 4095015 |
| Manufacturer SKU | MXML10 |
| Manufacturer UPC | 806990070074 |
| Alternative References | qa1, QA1-MXML10, 10mm, M10x1.5 |
