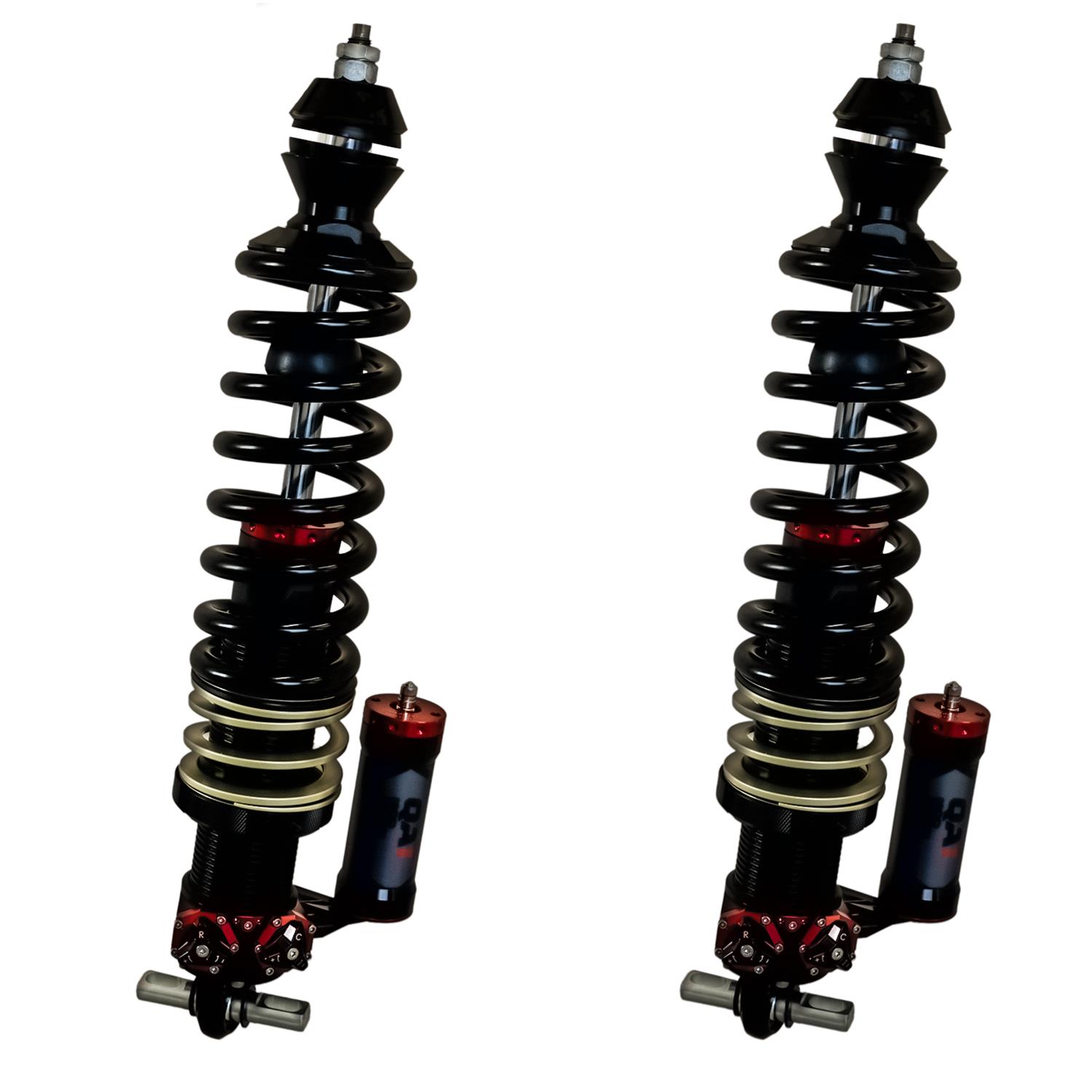

QA1 97-13 Chevrolet Corvette 8-550 X 2.25in ID Kit Pro-Coil Front Aluminum MOD
QA1 97-13 Chevrolet Corvette 8-550 X 2.25in ID Kit Pro-Coil Front Aluminum MOD
A$4,565.76
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Don't be limited to adjustments! Completely re-valve in minutes with the QA1 MOD Series Pro coilover systems. Designed specifically to meet the demands required by today's high performance drag race and handling/pro-touring cars, QA1's multi-patent-pending MOD Series shocks will transform the way racers respond to changing track conditions and configurations. The key element to this tunability is QuickTune Technology: dry modular valve packs that can easily be swapped out, all while the shocks remain on the car. An industry first, MOD Series shocks can easily be re-valved without interrupting the oil path or opening up the shock for debris and air contamination. Medium compression and rebound valve packs come standard; soft or firm compression and rebound valve packs are also available.
Once the desired valving is in place, the unique double-adjustable design (with adjustable low-speed bleed) allows for fully independent control over the compression and rebound characteristics. With all these adjustability options, MOD Series shocks achieve an expansive force curve capability and an unprecedented level of tunability. The shocks also feature mounting adjustability to accommodate a variety of vehicles and mounting configurations. The nitrogen-charged canister is available in a piggyback or remote configuration for ease of installation in tight areas, and the base eyelet is indexable, so you can unbolt and reattach it at the angle you need for the best shock and canister placement. Like all QA1 shocks, MOD Series coilovers are 100 percent dyno-tested and serialized. Order the kit recommended for your vehicle.
Product Overview
Convert your Corvette?s leaf spring suspension to QA1?s MOD Series coil-over shocks to maximize handling performance, suspension tunability and ride height adjustment for the perfect stance. These 4-way adjustable Corvette coil-overs are perfect for pushing your car to the limit at the track then setting the valving for comfortable street use. Designed to meet the demands of top-tier pro touring and track cars that require more aggressive force curves, MOD Series shocks utilize modular valve packs. This allows you to change valving without removing the shocks from the car or exposing the shock oil to contamination. Additionally, low-speed bleed adjustability helps you further refine weight transfer and low-speed valving characteristics in any conditions. The nitrogen-charged piggyback canister delivers optimal performance while fitting within the tight confines of stock Corvette suspension geometry. Does not require the use of a to link relocation kit. Adjust your car?s ride height to improve its handling, lower the center of gravity and corner balance your car for maximum performance. You can lower both base model cars (1" to 2" of drop) and Z06 models (.5" to 1.5" of drop). QA1?s bolt-in coil-overs are easy to install with basic hand tools and use factory mounting locations. They are available with multiple spring rate options to help you find the perfect rate for your intended use. The medium springs offer great street-ability for cars that will mostly be used on the road. The firm option is geared toward track-oriented cars, further reducing body roll under hard cornering and providing a more planted feel. , , Installation notes: , , Models with electronic ride control require Real Time Damping simulators. , , Does not require the use of a toe link relocation kit.
Features and Benefits
- 4-way adjustable high and low speed bleed
- QuickTune Technology: dry modular valve packs that can easily be swapped out
- Valve packs shock can quickly and easily be revalved without interrupting the oil path or opening the shock up for debris and air contamination
- Remote or piggyback canister mounting options
- 100% dyno tested and serialized
- Made in the USA
Product Details
| Active or Passive Suspension: | Passive |
|---|---|
| Adjustable Compression: | Yes |
| Adjustable Rebound: | Yes |
| Adjustable Ride Height: | Yes |
| Assembled: | No |
| Brand: | QA1 |
| Description: | QA1 97-13 Chevrolet Corvette 8-550 X 2.25in ID Kit Pro-Coil Front Aluminum MOD |
| Grade Type: | Performance |
| Internal Construction Type: | Dual Tube |
| Manufacturer Part Number: | MG455-08550 |
| Part Number: | qapMG455-08550 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Remote Reservoir: | No |
| Spring Color: | Black |
| Spring Material: | High Tensile Chrome Silicon |
| Title: | QA1 Shock Absorber and Coil Spring Assembly GD455-08550 |
| UPC: | 806990163905 |
Part Type
Coilover Set
Features
- 100% dyno tested and serialized
- 4-way adjustable high and low speed bleed
- Made in the USA
- QuickTune Technology: dry modular valve packs that can easily be swapped out
- Remote or piggyback canister mounting options
- Valve packs shock can quickly and easily be revalved without interrupting the oil path or opening the shock up for debris and air contamination
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- MG455-08550
- Product Attributes - Part Type
- Coilover Kits
- Product Attributes - Product Line
- QA1 MOD Series Pro Coilover Systems
- Product Attributes - UPC
- 806990163905
- Product Attributes - Coilover Kit Position
- Front
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 576
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Internal Design
- Twin-tube
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Spring Rate (lbs./in.)
- 550 lbs./in.
- Product Attributes - Suspension Height Adjustment
- 1.0-2.0 in. lowered front
- Product Attributes - Recommended Front-End Weight
- 2,101-2,200 lbs.
- Product Attributes - Gas Charged
- Yes
- Product Attributes - Threaded Adjustment Range
- 3.000 in.
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- T-bar
- Product Attributes - Body Diameter (in.)
- 3.000
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Black
- Product Attributes - Bushing Material
- Spherical bearing
- Product Attributes - Bushing Color
- Natural
- Product Attributes - Spring Finish
- Black
- Product Attributes - Crossmember Included
- No
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Welding Required
- No
- Product Attributes - Quantity
- Sold as a pair.
- Product Attributes - Notes
- Models with electronic ride control require real time damping simulators.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapMG455-08550 |
| SFX Item ID | 4095901 |
| Supplier Item Code | 4095901 |
| Manufacturer SKU | MG455-08550 |
| Manufacturer UPC | 806990163905 |
| Alternative References | qa1, QA1-MG455-08550, 2.25in |
