QA1 75-81 GM F-Body Level 3 Handling Kit
QA1 75-81 GM F-Body Level 3 Handling Kit
A$24,168.79
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
QA1's handling suspension kits provide a full-vehicle upgrade that fits your needs. Available in three different levels of performance, you can build your car in stages, using QA1's parts list as a road map to get to the level of performance you want and have peace of mind knowing you won't have compatibility issues.
Top performance is the desired goal of many automotive upgrades—precisely what QA1 Level 3 handling suspension kits deliver. Compared with the Level 1 and 2 packages, these heavy-duty assemblies offer additional control components, as well as stiffer springs to maximize your cornering ability and handling. QA1 Level 3 kits are available with or without shocks and struts—giving you the flexibility to obtain the shocks or struts and spring rates you want. Select the kit designed for your vehicle.
Product Overview

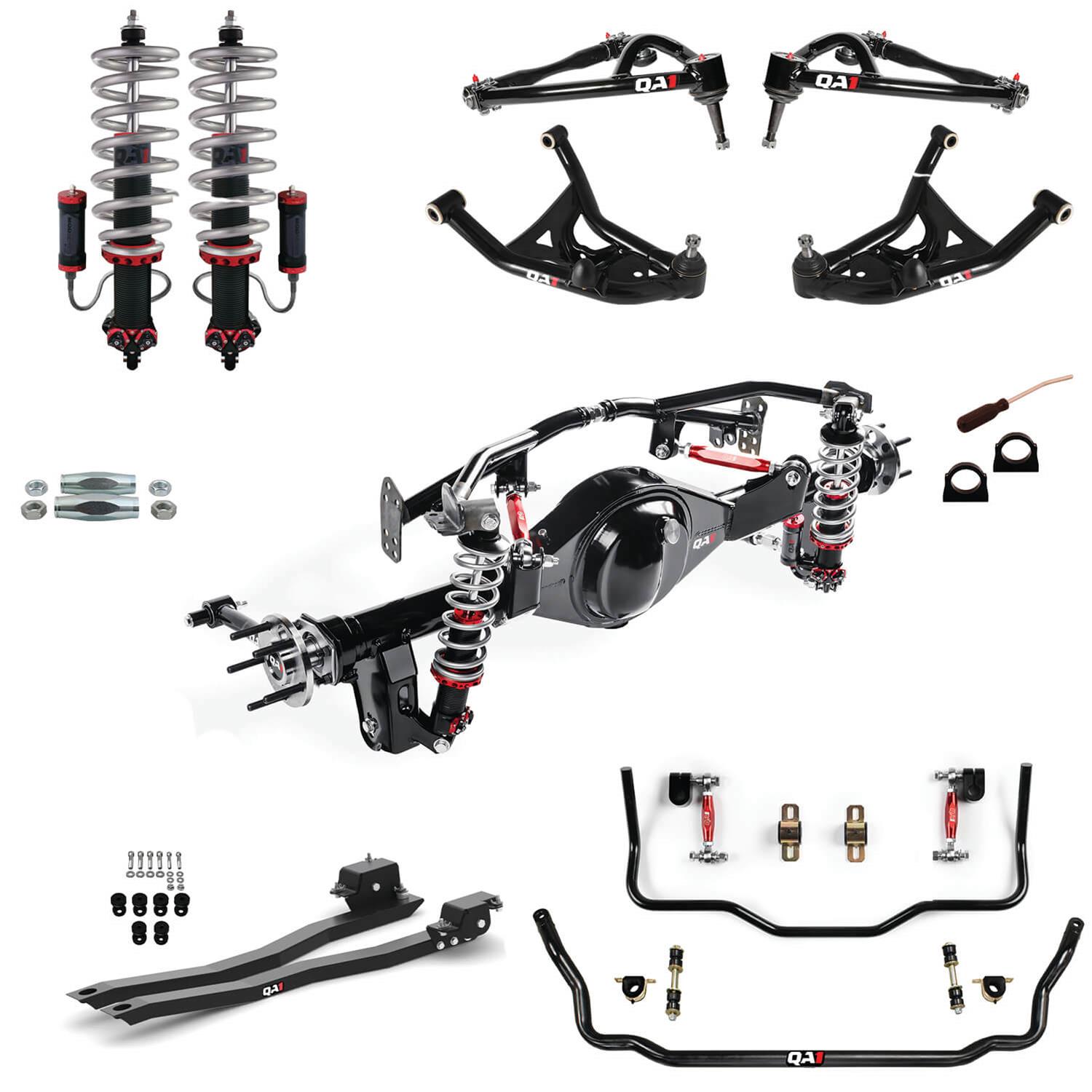

PRODUCT OVERVIEW QA1's Handling Kit is the premier suspension upgrade for '75-81 Camaro/Firebird (GM F-body) owners seeking exceptional handling. This kit replaces the front and rear suspension with QA1 MOD series 4-way adjustable coilovers and a narrowed QA1 9" rear housing, and four-link optimized for wider wheels and tires. HUGE HANDLING GAINS Experience superior handling with lightweight control arms that improve geometry and reduce flex. The adjustable four-link design eliminates wheel hop and improves traction and handling. Front and rear sway bars and subframe connectors minimize roll in tight corners. AGGRESSIVE STANCE Factory springs limit stance, but QA1's MOD series coilovers and 4-link offer 2 inches of front adjustability and 1.25 inches in the rear for ideal ride height. The kit allows for massive 12-inch-wide wheels with 335 tires. PERFORMANCE 9" REAR HOUSING Strength: Fabricated center section with 3 OD, wall axle tubes support 800HP and 31 spline axles are rated to 650HP. Features: Standard options include powder coat, drain and fill plugs, jack pad, and all necessary hardware. Specs: Narrowed wheel mounting width: 56-1/8 (narrowed 2-1/2 per side for mini tubs) Big Ford New Style Torino Axle Flanges with 2.5 axle offset Bolt pattern: 5x4-3/4 for easy wheel compatibility Wheel studs: x 3 for alloy wheels Requires third member for Ford 9 housings with 31 spline axles EASY INSTALL The QA1 Handling Kit features a straightforward installation. The rear crossmember needs minimal MIG welding, and all other components are direct bolt-in. MADE IN THE USA Components manufactured in the USA FITMENT NOTES Narrowed housing is recommended for custom offset wheels and mini tubs Verify wheel and tire fitment on the vehicle Mini tubs required for maximum tire width Some welding may be necessary Exhaust modifications may be needed
Features and Benefits
- Complete Suspension Kit: Upgraded performance for street and track.
- QA1 MOD Shocks: Fine-tune your ride height and handling for a perfect stance and performance in any driving scenario.
- Custom 9" Rear Housing: Supports up to 800HP.
- Lightweight Front Suspension: Enhances control and reduces flex.
- Easy Installation: Bolt-on with minimal welding required.
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 75-81 GM F-Body Level 3 Handling Kit |
| Front Spring Rate: | 450lb/in. |
| Manufacturer Part Number: | HK53-GMF2RN |
| Part Number: | qapHK53-GMF2RN |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Rear Spring Rate: | 170lb/in. |
| Shock Valving: | MOD Series |
| Title: | QA1 Suspension Kit HK53-GMF2RN |
| UPC: | 00806990230706 |
Part Type
Coilover Adjustable Spring Lowering Kit
Features
- Complete Suspension Kit: Upgraded performance for street and track.
- Custom 9" Rear Housing: Supports up to 800HP.
- Easy Installation: Bolt-on with minimal welding required.
- Lightweight Front Suspension: Enhances control and reduces flex.
- QA1 MOD Shocks: Fine-tune your ride height and handling for a perfect stance and performance in any driving scenario.
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HK53-GMF2RN
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 3 Full Vehicle Handling Suspension Kits
- Product Attributes - UPC
- 806990230706
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.375 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 34.93 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Diameter (in.)
- 0.875 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 22.23 mm
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- No
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- Yes
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes narrowed 9 in. housing.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHK53-GMF2RN |
| SFX Item ID | 4096295 |
| Supplier Item Code | 4096295 |
| Manufacturer SKU | HK53-GMF2RN |
| Manufacturer UPC | 806990230706 |
| Alternative References | qa1, QA1-HK53-GMF2RN |
