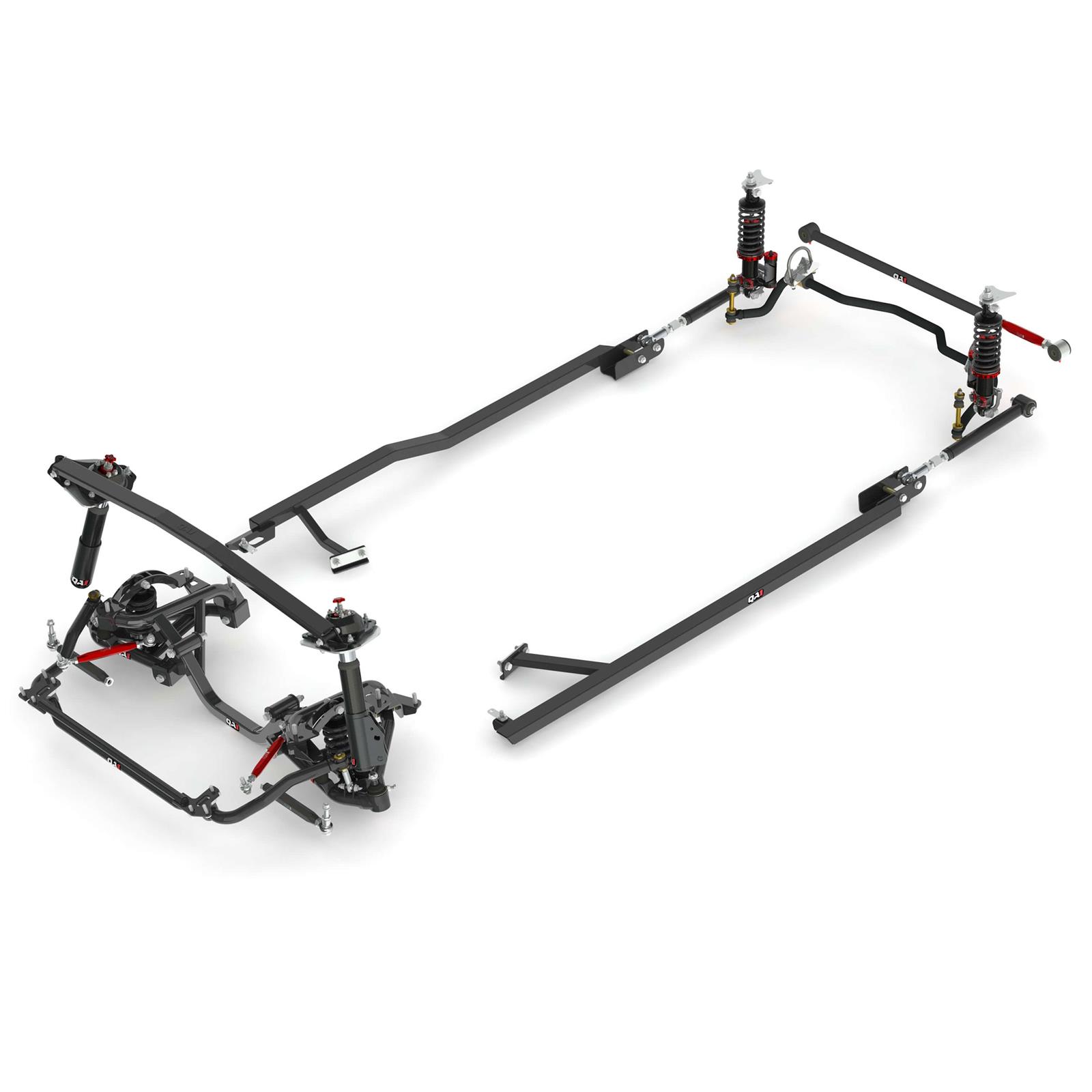

QA1 82-92 GM F-Body Level 3 Full Vehicle Handling Kit (Bundled Kit)
QA1 82-92 GM F-Body Level 3 Full Vehicle Handling Kit (Bundled Kit)
A$19,406.75
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
QA1's handling suspension kits provide a full-vehicle upgrade that fits your needs. Available in three different levels of performance, you can build your car in stages, using QA1's parts list as a road map to get to the level of performance you want and have peace of mind knowing you won't have compatibility issues.
Top performance is the desired goal of many automotive upgrades—precisely what QA1 Level 3 handling suspension kits deliver. Compared with the Level 1 and 2 packages, these heavy-duty assemblies offer additional control components, as well as stiffer springs to maximize your cornering ability and handling. QA1 Level 3 kits are available with or without shocks and struts—giving you the flexibility to obtain the shocks or struts and spring rates you want. Select the kit designed for your vehicle.
Product Overview
The QA1 Level 3 Handling Kit is the top choice for 1982-1992 3rd gen Chevy Camaro and Pontiac Firebird (F-body) owners looking to dominate on the track. It includes everything for peak performance, like double-adjustable front struts and four-way-adjustable MOD series rear shocks. The lightweight K-member reduces front-end weight, strengthens the chassis, and simplifies engine swaps. PERFORMANCE RIDE & HANDLING QA1 MOD shocks are built for high-performance pro-touring and track cars, offering four-way adjustability with 24 clicks each for high-speed compression and rebound, plus full low-speed adjustability. Swappable modular valve packs let you quickly fine-tune your suspension for any driving condition. WHEEL & TIRE CLEARANCE QA1 Spring Sliders retain factory inboard spring location, providing room for wide tires and more negative camber. This setup enhances cornering grip without sacrificing strut tower integrity and allows easy ride height adjustments. ENGINE & TRANSMISSION SWAPS The QA1 tubular K-member makes engine swaps straightforward with interchangeable mounts and sheds over 30 pounds compared to factory. OPTIMAL STANCE Lower your ride height by up to 2-inches with coilover shocks and Spring Sliders for a better stance and improved cornering. The adjustable Panhard Bar ensures correct axle placement, ideal for lowered cars or those running wider tires. STIFFEN YOUR CHASSIS The 3rd gen F-body is known for a weak steering box area. The QA1 Wonder Bar strengthens the front frame, reducing stress and improving steering response, cornering, and overall handling. Subframe connectors and the strut tower brace are included to further stiffen the chassis, reducing flex during aggressive driving. Pair this with the QA1 tunnel-mounted torque arm and transmission crossmember for a significant performance boost, durability, and easier transmission and axle upgrades. Fitment Notes: Engine mounts not included. QA1 adjustable torque arm recommended.
Features and Benefits
- Improved handling and stability
- Customizable engine and transmission options
- Increased chassis rigidity
- Easy bolt-in design
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 82-92 GM F-Body Level 3 Full Vehicle Handling Kit |
| Manufacturer Part Number: | HK43-GMF3 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Kit HK43-GMF3 |
| UPC: | 00806990176370 |
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | qap52122 | 52122 | 806990176141 | QA1 82-92 Chevrolet Camaro/Pontiac Firebird (F-Body) Steering Brace Wonder Bar |
 | 1x | qap5275 | 5275 | 806990064660 | QA1 82-02 Chevrolet Camaro Trailing Arm Relocation Brackets |
 | 1x | qap5222 | 5222 | 806990064332 | QA1 82-02 Chevrolet Camaro Adjustable Tubular Panhard Bar |
 | 1x | qapBAX106 | BAX106 | 806990176325 | QA1 82-92 Chevrolet Camaro / Pontiac Firebird (F-Body) Bump Steer Kit |
 | 1x | qap52121 | 52121 | 806990176134 | QA1 82-92 Chevrolet Camaro/Pontiac Firebird (F-Body) Strut Tower Brace |
 | 1x | qapCC116 | CC116 | 806990173911 | QA1 82-92 Chevrolet Camaro Caster-Camber Plate Kit |
 | 1x | qap52825 | 52825 | 806990176257 | QA1 82-92 Chevrolet Camaro/Pontiac Firebird (F-Body) 1-3/8in Front Sway Bar |
 | 1x | qap52835 | 52835 | 806990176264 | QA1 82-02 Chevrolet Camaro/Pontiac Firebird (F-Body) 1-1/8in Rear Sway Bar |
 | 1x | qap5234 | 5234 | 806990174635 | QA1 78-88 GM G-Body Trailing Arms Lower Adjustable |
 | 2x | qapHD06 | HD06 | 806990174208 | QA1 82-92 Chevrolet Camaro Proma Star Coilover Strut Double-Adj 13.25 |
 | 1x | qap52096 | 52096 | 806990176127 | QA1 82-92 Chevrolet Camaro/Pontiac Firebird (F-Body) Subframe Connector Kit |
 | 1x | qap52025 | 52025 | 806990176097 | QA1 82-92 Chevrolet Camaro/Pontiac Firebird (F-Body) Tubular K-Member |
| 1x | qap52525 | 52525 | 806990176240 | QA1 82-92 Chevrolet Camaro GM F Body Control Arm Kit - Pro-Touring - Lower |
 | 1x | qapRCK52633 | RCK52633 | 806990176462 | QA1 82-02 Chevrolet Camaro/Pontiac Firebird (F-Body) MOD Series Rear Pro Coil Shocks - 200lb |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Handling Packages
Features
Customizable engine and transmission options
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- HK43-GMF3
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 3 Full Vehicle Handling Suspension Kits
- Product Attributes - UPC
- 806990176370
- Product Attributes - Front Coil Springs Included
- No
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable twin-tube
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Front Sway Bar Diameter (mm)
- 31.75 mm
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Solid
- Product Attributes - Rear Sway Bar Diameter (in.)
- 0.875 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 22.23 mm
- Product Attributes - Tie Rod Sleeves Included
- No
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- No
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- Yes
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- No
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- Yes
- Product Attributes - K-Member Included
- Yes
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- Yes
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapHK43-GMF3 |
| SFX Item ID | 4563186 |
| Supplier Item Code | 4563186 |
| Manufacturer SKU | HK43-GMF3 |
| Manufacturer UPC | N/A |
| Alternative References | QA1, qap-5222, qap-5275, qap-CC116, CC116, qapHD06 |
