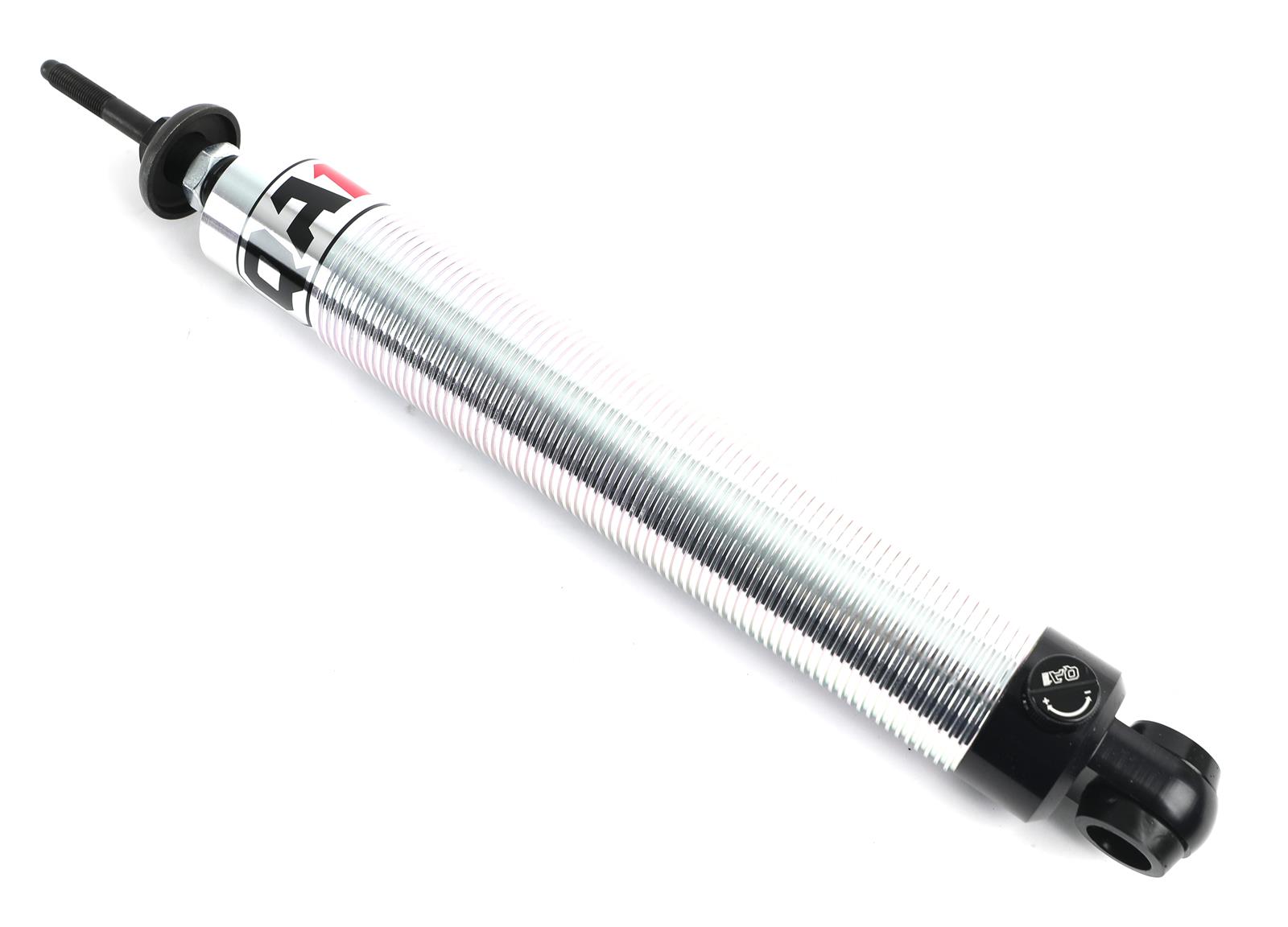

QA1 Proma Star Series Coil-Over Shock Absorber - Single Adj. - Bushing Mount - 15in/23.125in - Alum
QA1 Proma Star Series Coil-Over Shock Absorber - Single Adj. - Bushing Mount - 15in/23.125in - Alum
A$532.43
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 Proma Star externally adjustable coilover shocks and struts provide just the right combination of consistency, reaction, and durability for drag racing. They have special valving, which is designed to compensate for high shaft speed, while allowing for low shaft speed control. When combined with the 18 externally adjustable valve settings, they ensure an improved grip on the track from end to end. Other features include a bright-anodized aluminum body, PTFE-lined bearings or polyurethane bushings, a 5/8 in. centerless-ground chrome piston rod, and aerospace-caliber sealing materials.
Product Overview
With QA1's Proma Star single adjustable coil-over shock, you can easily adjust your compression and rebound valving and get the hard-core performance you need. One knob allows you to choose from 18 valving options that adjust both compression and rebound valving simultaneously, allowing total suspension control in one easy-to-reach location. Simultaneous Compression and Rebound Adjustment, Coil-Over, Lightweight Aluminum, Ride Height Adjustable, Spring Mounting Hardware Included, 100% Dyno Tested and Serialized, Revalveable and Rebuildable by the QA1 Factory or QA1 Authorized Service Centers, American Made, Precision Machined Aluminum Piston with PTFE Piston Band, 5/8" Centerless Ground, Hard Chrome Plated, Solid Piston Rod, Three Step Sealing System.
Features and Benefits
- Easily adjust your ride height for the perfect stance.
- Achieve the perfect balance of ride quality and performance with simultaneous tuning of rebound and compression.
- Multiple bushing or bearing configurations available to fit your needs.
- Limited Lifetime Warranty for peace of mind.
- Proudly made in the USA.
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 Proma Star Series Coil-Over Shock Absorber - Single Adj. - Bushing Mount - 15in/23.125in - Alum |
| Manufacturer Part Number: | DS903 |
| Part Number: | qapDS903 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Shock Absorber DS903 |
| UPC: | 806990063885 |
Part Type
Coilover
Features
- Achieve the perfect balance of ride quality and performance with simultaneous tuning of rebound and compression.
- Easily adjust your ride height for the perfect stance.
- Limited Lifetime Warranty for peace of mind.
- Multiple bushing or bearing configurations available to fit your needs.
- Proudly made in the USA.
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- DS903
- Product Attributes - Part Type
- Coilover Shocks and Struts
- Product Attributes - Product Line
- QA1 Proma Star Coilover Shocks and Struts
- Product Attributes - UPC
- 806990063885
- Product Attributes - Coilover Shock Type
- Single-adjustable
- Product Attributes - Shock Body Material
- Aluminum
- Product Attributes - Shock Body Finish
- Silver
- Product Attributes - Adjustable Valving
- Yes
- Product Attributes - Number of Valving Selections
- 18
- Product Attributes - Extended Length (in.)
- 23.63
- Product Attributes - Collapsed Length (in.)
- 15.00
- Product Attributes - Upper Mount
- Stud
- Product Attributes - Lower Mount
- Eyelet
- Product Attributes - Internal Design
- Twin-tube
- Product Attributes - Gas Charged
- No
- Product Attributes - Body Diameter (in.)
- 2.000
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Coilover Springs Included
- No
- Product Attributes - Recommended Spring Diameter (in.)
- 2.50 in.
- Product Attributes - Recommended Minimum Spring Length (in.)
- 14.00 in.
- Product Attributes - Adjustable Mounting Bracket Included
- No
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapDS903 |
| SFX Item ID | 4093404 |
| Supplier Item Code | 4093404 |
| Manufacturer SKU | DS903 |
| Manufacturer UPC | 806990063885 |
| Alternative References | qa1, QA1-DS903, 15in/23.125in |
