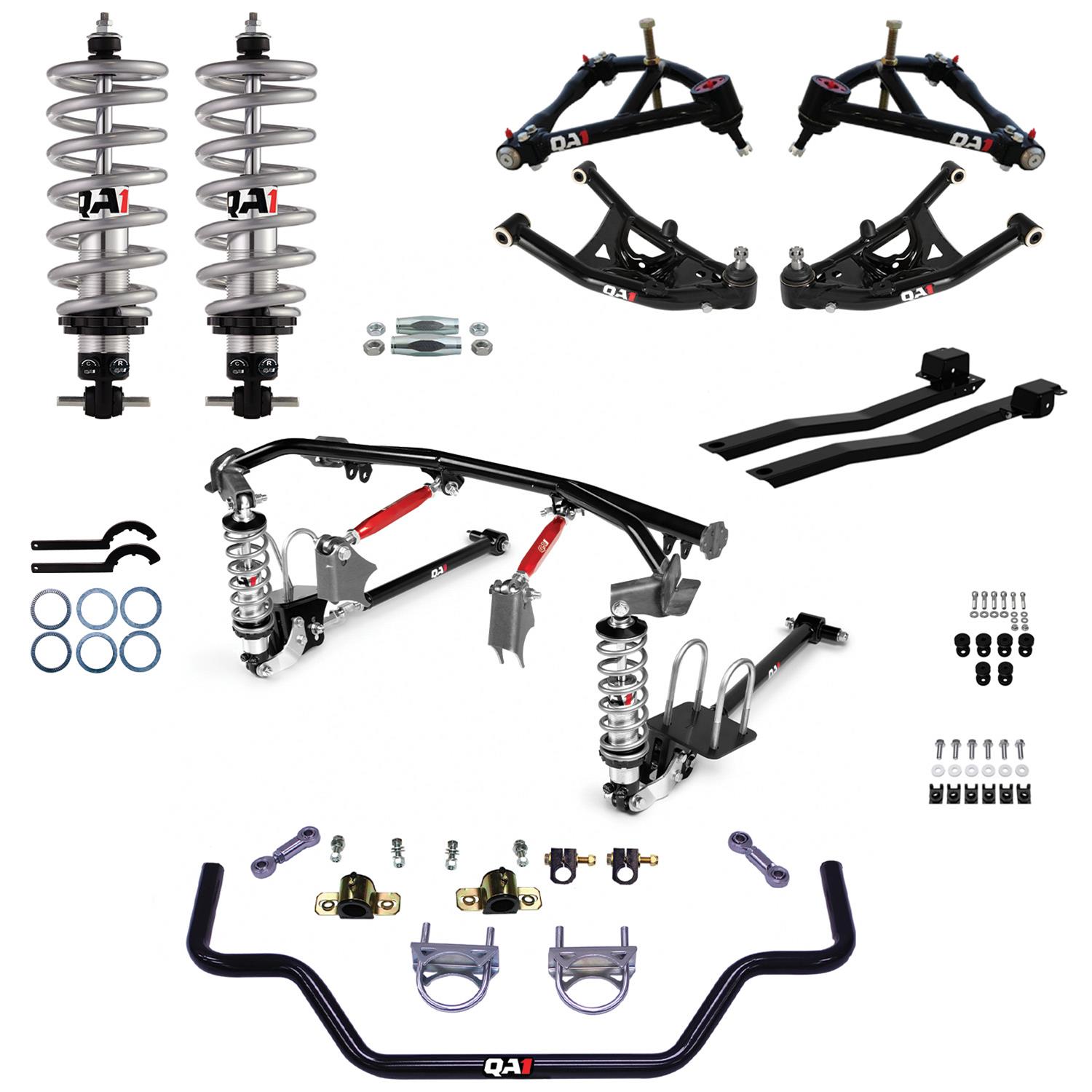

QA1 67-69 GM F-Body Level 2 Full Vehicle Drag Kit w/ Shocks (Bundled Kit)
QA1 67-69 GM F-Body Level 2 Full Vehicle Drag Kit w/ Shocks (Bundled Kit)
A$12,592.56
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Product Overview QA1's Level 2 Drag Kit is a complete solution for F-body owners who drag race their car. This complete solution replaces your entire front and rear suspension, optimizing your car's weight transfer and straightline performance. The coilovers offer adjustable ride height, while the rear suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front control arms are some of the lightest on the market and racers can tune launch characteristics using an adjustable droop stop. Low-friction ball joints and composite bushings enhance weight transfer, ensuring smooth and bind-free movement. Paired with QA1's double adjustable Pro-Coil coilovers, this kit offers plenty of front end control. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance. QA1's coilovers and tubular 4-link provides 0 to -2 inches of adjustability in the front and +2 to -3 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with standard or mini-tubs, this system offers clearance for wider wheels and tires. This enables you to choose the appropriate tire for the class you race, or street/strip combination. Note: Achieving maximum tire width requires mini tubs. Improved Performance and Stability Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability, for exceptional launch control and improved 60-foot times. Easy Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No floor pan modifications required. Note: Welding required Best In-Class Lifetime Shock Warranty Made in the USA Fitment Notes Wheel and tire fitment should be verified on vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors recommended May require Exhaust Modification
Product Overview
Product Overview QA1's Level 2 Drag Kit is a complete solution for F-body owners who drag race their car. This complete solution replaces your entire front and rear suspension, optimizing your car's weight transfer and straightline performance. The coilovers offer adjustable ride height, while the rear suspension was optimized for wider wheels and tires. Bind Free Light-weight Front Suspension QA1's tubular front control arms are some of the lightest on the market and racers can tune launch characteristics using an adjustable droop stop. Low-friction ball joints and composite bushings enhance weight transfer, ensuring smooth and bind-free movement. Paired with QA1's double adjustable Pro-Coil coilovers, this kit offers plenty of front end control. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance. QA1's coilovers and tubular 4-link provides 0 to -2 inches of adjustability in the front and +2 to -3 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with standard or mini-tubs, this system offers clearance for wider wheels and tires. This enables you to choose the appropriate tire for the class you race, or street/strip combination. Note: Achieving maximum tire width requires mini tubs. Improved Performance and Stability Perfect for both street and track use, double adjustable shocks are famous for their independent rebound and compression tunability for exceptional launch control and improved 60-foot times. Easy Installation And Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No floor pan modifications required. Note: Welding required Best In-Class Lifetime Shock Warranty Made in the USA Fitment Notes Wheel and tire fitment should be verified on vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors recommended May require Exhaust Modification
Features and Benefits
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 67-69 GM F-Body Level 2 Full Vehicle Drag Kit w/ Shocks |
| Manufacturer Part Number: | DK42-GMF1 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Kit DK42-GMF1 |
| UPC: | 806990175236 |
This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 1x | qap7888-109 | 7888-109 | 806990017376 | QA1 2-1/2in Thrust Bearing Kit w/Washers for 2 Shocks |
 | 1x | qap5251 | 5251 | 806990064578 | QA1 Heavy Duty Tie Rod Sleeve Kit - 5/8-18 x 4.9in Sleeve - 5/8-18 Thread x 5.65in Long w/Jam Nuts |
 | 1x | qap52827 | 52827 | 806990174666 | QA1 67-69 GM F-Body 4-Link Sway Bar Kit Rear 7/8in |
 | 1x | qap52093 | 52093 | 806990175274 | QA1 67-69 GM F-Body Subframe Connector Kit |
 | 1x | qap52917 | 52917 | 806990160324 | QA1 67-69 GM F-Body/68-74 X-Body Drag Race Upper Control Arm Kit - Front |
 | 1x | qapGD401-11300A | GD401-11300A | 806990062413 | QA1 GM Pro Front Coil-Over System - Double Adj. - 11in x 300lbs/in - Pigtail - Aluminum |
 | 1x | qap52919 | 52919 | 806990160331 | QA1 67-69 GM F-Body/68-74 X-Body Drag Race Lower Control Arm Kit - Front |
 | 1x | qapR256-170 | R256-170 | 806990175205 | QA1 67-69 GM F-Body Double Adjustable Rear Four Link Suspension System |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Suspension Kit
Features
3 levels of kits to choose from for better launch, straight-line stability & consistent performance
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- DK42-GMF1
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 2 Full Vehicle Drag Racing Suspension Kits
- Product Attributes - UPC
- 806990175236
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- No
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black
- Product Attributes - Rear Sway Bar Type
- Solid
- Product Attributes - Rear Sway Bar Diameter (in.)
- 0.875 in.
- Product Attributes - Rear Sway Bar Diameter (mm)
- 22.00 mm
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- No
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- No
- Product Attributes - Panhard Bar Included
- No
- Product Attributes - Torque Arm Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Chromoly
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- Yes
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Polyurethane/Steel
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Included coil over springs feature a rate of 300 lbs in the front and 170 lbs in the rear.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapDK42-GMF1 |
| SFX Item ID | 4563200 |
| Supplier Item Code | 4563200 |
| Manufacturer SKU | DK42-GMF1 |
| Manufacturer UPC | 806990175236 |
| Alternative References | QA1, qap-5251, 4.9in, 5.65in, qap-52917, qap52919 |
