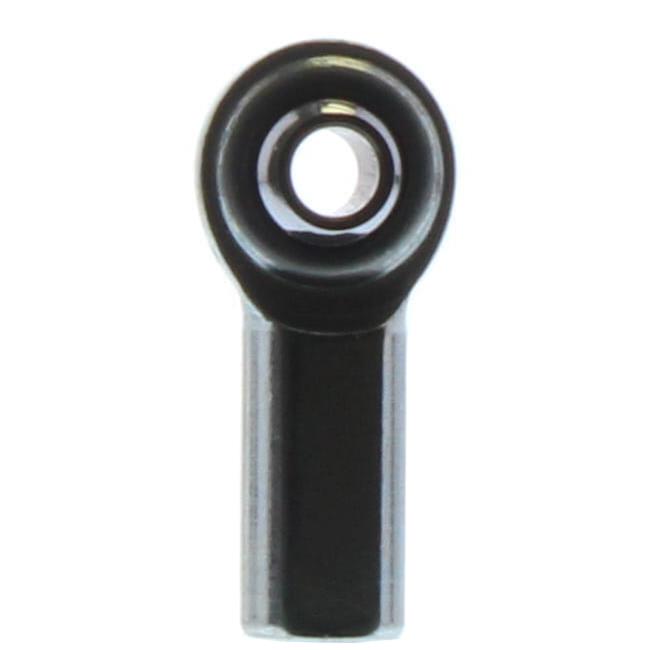

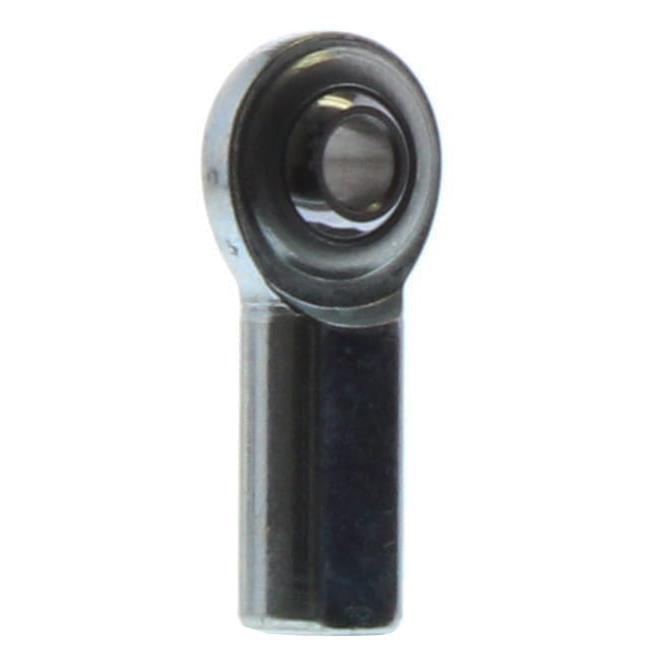

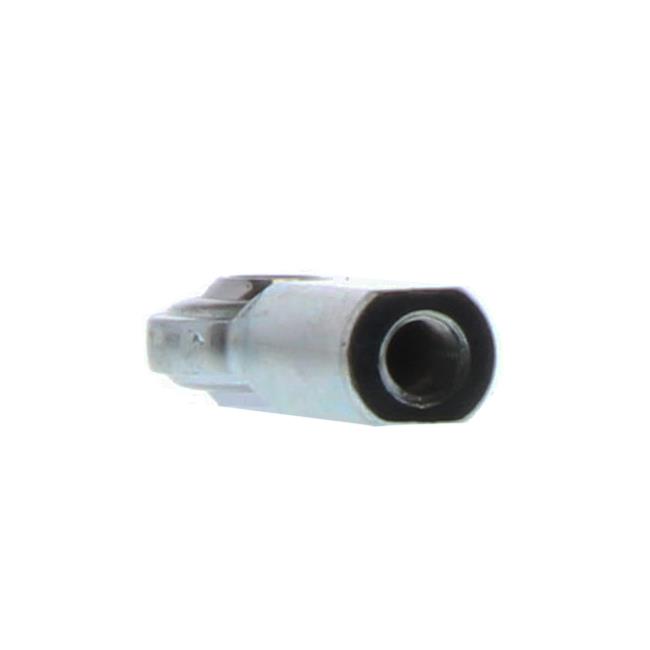

QA1 C Series 2-Pc Rod End - Female/Right Hand - .25in Bore x 1/4-28 - Carbon Steel
QA1 C Series 2-Pc Rod End - Female/Right Hand - .25in Bore x 1/4-28 - Carbon Steel
Sale ends in Calculating...
A$11.44 A$69.81
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
QA1 C Series rod ends are a perfect choice for an economical, yet durable rod end. Featuring a coated carbon steel body and a heat-treated ball, they will perform and last. The rod ends are available in hundreds of size options, including thread and head specs, as well as metal-to-metal and PTFE-lined styles.
Product Overview
For a self-lubricating version of a traditional carbon steel two-piece female rod end, QA1 offers its CF-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, PTFE Lined.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 C Series 2-Pc Rod End - Female/Right Hand - .25in Bore x 1/4-28 - Carbon Steel |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.25 |
| Manufacturer Part Number: | CFR4 |
| Outside Diameter: | 0.75 |
| Part Number: | qapCFR4 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing CFR4 |
| UPC: | 806990002020 |
| Width: | 0.375 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- CFR4
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 C Series Rod Ends
- Product Attributes - UPC
- 806990002020
- Product Attributes - Rod End Thread Size
- 1/4 in.-28
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Head Bore Size
- 0.250 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 0.687 in.
- Product Attributes - Rod End Head Diameter
- 0.750 in.
- Product Attributes - Rod End Head Width
- 0.375 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.312 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.375 in.
- Product Attributes - Rod End Misalign Angle
- 27 degrees
- Product Attributes - Rod End Static Load Capacity
- 3,820 lbs.
- Product Attributes - Rod End Material
- Carbon steel
- Product Attributes - Rod End Finish
- Zinc plated
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapCFR4 |
| SFX Item ID | 4093056 |
| Supplier Item Code | 4093056 |
| Manufacturer SKU | CFR4 |
| Manufacturer UPC | 806990002020 |
| Alternative References | qa1, QA1CFR4, 2-Pc, .25in |
