QA1 78-88 GM G-Body Level 2 Big Wheel Kit (Bundled Kit)
QA1 78-88 GM G-Body Level 2 Big Wheel Kit (Bundled Kit)
A$12,667.24
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Level 2 Big Wheel Kit, 78-88 GM G-Body, Double Adjustable ShocksFit up to 24" wheels on your Monte Carlo or Cutlass with a complete bolt-in suspension system, including control arms and sway bars. It has everything you need to get your G-body sitting right while giving you a better ride and improved handling.Double-Adjustable Coil-OversGet the perfect look by easily adjusting your ride height with front and rear coil-overs. Raise the front your car up to 2" above stock height, and go 1" above to 3" below in the rear. Dial in the exact style you want in minutes with the included spanner wrench. Individually tune your shock compression and rebound to get the perfect ride and get more grip off the line for drag racing. With registration, your shocks can be backed with a best-in-class Limited Lifetime Warranty.Adjustable Upper and Lower Trailing ArmsGet your wheel and tire package to fit with adjustable trailing arms that center your rear axle in the wheel well. This gives you more clearance for up to 24" wheels.Tubular Control ArmsUpgrade your front-end geometry for better drivability. These arms are designed specifically for big wheel cars with corrected suspension angles for large wheels and tires. They much are lighter and stronger than stock to get the most out of your car.Tubular Sway BarsQA1's high clearance front sway bar is 4" narrower than OEM bars, providing full turning radius on 24" wheels. It was also designed to work with OEM or notched front frame rails. Rear anti-roll bars reduce unwanted body roll and improved 60-foot times. Easy, Bolt-In InstallationParts come powder coated and ready to install with all necessary hardware. You can bolt up the kit right in your garage or work with your local shop.
Product Overview
Level 2 Big Wheel Kit, 78-88 GM G-Body, Double Adjustable ShocksFit up to 24" wheels on your Monte Carlo or Cutlass with a complete bolt-in suspension system, including control arms and sway bars. It has everything you need to get your G-body sitting right while giving you a better ride and improved handling.Double-Adjustable Coil-OversGet the perfect look by easily adjusting your ride height with front and rear coil-overs. Raise the front your car up to 2" above stock height, and go 1" above to 3" below in the rear. Dial in the exact style you want in minutes with the included spanner wrench. Individually tune your shock compression and rebound to get the perfect ride and get more grip off the line for drag racing. With registration, your shocks can be backed with a best-in-class Limited Lifetime Warranty.Adjustable Upper and Lower Trailing ArmsGet your wheel and tire package to fit with adjustable trailing arms that center your rear axle in the wheel well. This gives you more clearance for up to 24" wheels.Tubular Control ArmsUpgrade your front-end geometry for better drivability. These arms are designed specifically for big wheel cars with corrected suspension angles for large wheels and tires. They much are lighter and stronger than stock to get the most out of your car.Tubular Sway BarsQA1's high clearance front sway bar is 4" narrower than OEM bars, providing full turning radius on 24" wheels. It was also designed to work with OEM or notched front frame rails. Rear anti-roll bars reduce unwanted body roll and improved 60-foot times. Easy, Bolt-In InstallationParts come powder coated and ready to install with all necessary hardware. You can bolt up the kit right in your garage or work with your local shop.
Features and Benefits
- Everything you need to get your big wheel car sitting right
- Adjustable trailing arms to center wheels in the well
- Adjustable ride height
- On-the-car shock adjustments
- Tubular control arms
- Easy bolt-in installation
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 78-88 GM G-Body Level 2 Big Wheel Kit |
| Manufacturer Part Number: | BW02-GMG1 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 BW02-GMG1 Level 2 Big Wheel Suspension Kit |
| UPC: | 806990169341 |

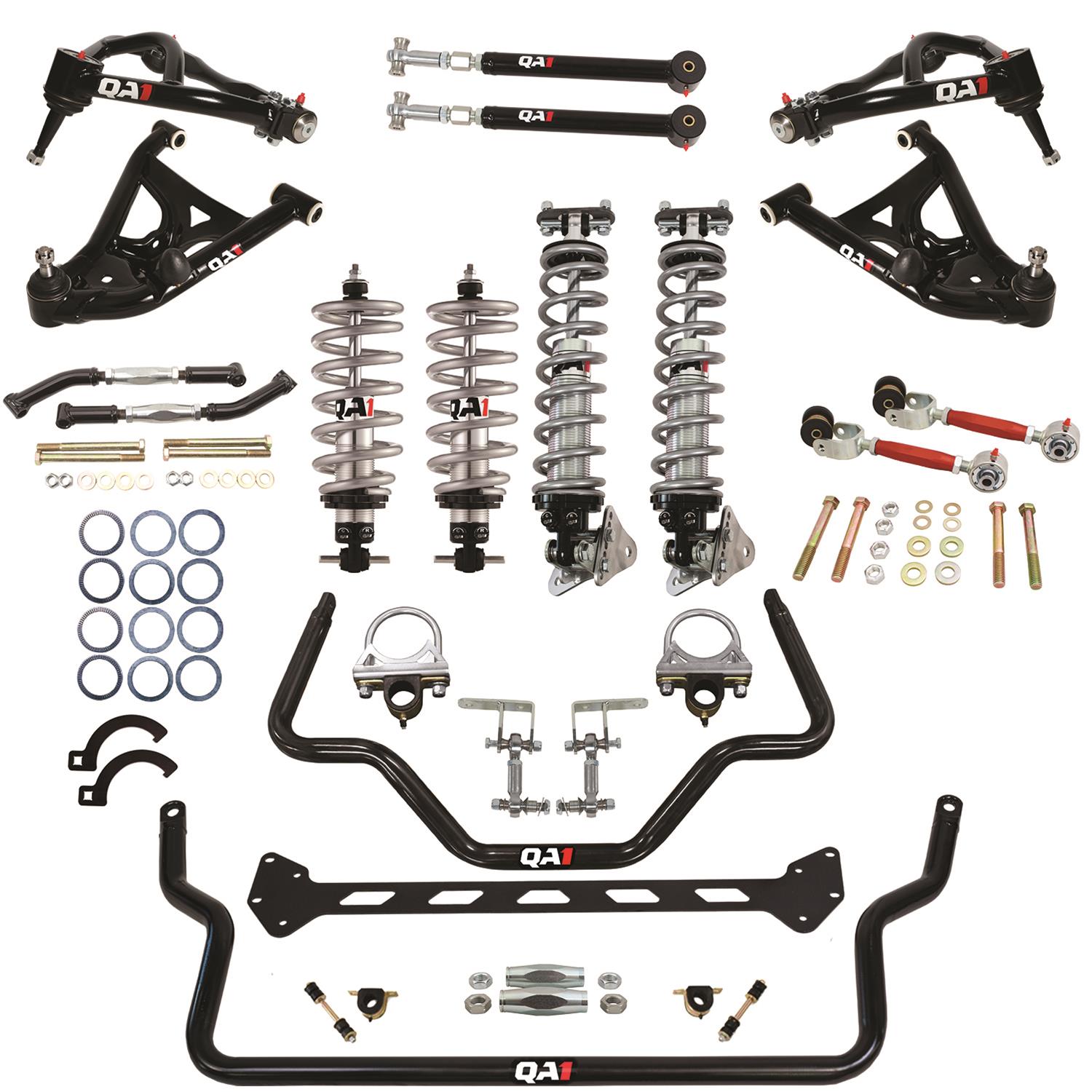

This is a group bundle consisting of:
| Image | Qty | SKU | MFR SKU | UPC | Description |
|---|---|---|---|---|---|
 | 2x | qapT115W | T115W | 806990076205 | QA1 Ratchet Drive Spanner Wrench - Drag/Street (Non MOD Series) |
 | 2x | qap7888-109 | 7888-109 | 806990017376 | QA1 2-1/2in Thrust Bearing Kit w/Washers for 2 Shocks |
 | 1x | qap5250 | 5250 | 806990064561 | QA1 Heavy Duty Tie Rod Sleeve Kit - 5/8-18 x 3.4in Sleeve - 5/8-18 Thread x 4.15in Long w/Jam Nuts |
 | 1x | qap5285 | 5285 | 806990064745 | QA1 78-88 GM A/G-Body Adjustable Rear Frame Support |
 | 1x | qap5247 | 5247 | 806990064530 | QA1 78-88 GM G-Body/73-77 A-Body Upper Adjustable Trailing Arms |
 | 1x | qap52854 | 52854 | 806990169303 | QA1 78-88 GM G-Body Big Wheel Sway Bar Kit Front 1-3/8in |
 | 1x | qap52853 | 52853 | 806990174680 | QA1 78-88 GM G-Body Anti-Roll Bar Kit Rear 1-1/4in |
 | 1x | qap5234 | 5234 | 806990174635 | QA1 78-88 GM G-Body Trailing Arms Lower Adjustable |
 | 1x | qap52565 | 52565 | 806990160270 | QA1 78-88 GM G-Body Pro-Touring Upper Control Arm Kit - Front |
 | 1x | qap52764 | 52764 | 806990160461 | QA1 78-88 GM G-Body Street Performance Lower Control Arm Kit - Front |
 | 1x | qapGD507-10450C | GD507-10450C | 806990136602 | QA1 GM Pro Front Coil-Over System - Double Adj. - 10in x 450lbs/in - Flat Large - Aluminum |
 | 1x | qapRCK52367 | RCK52367 | 806990169372 | QA1 78-88 GM G-Body 12-200 Kit Rear Pro-Coil D-Adj |
Bundled group items may ship from multiple locations and could have slightly longer transit times if parts are sourced from different warehouses.
Images in this listing may include individual and/or group shots of the products included in the bundle. Please refer to the table to see a breakdown of what is included. Click on a SKU to see individual item details.
For details on the individual components in this bundle, click here.
Part Type
Big Wheel Kit Level 1 GM G-Body
Features
Everything you need to get your big wheel car sitting right
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- BW02-GMG1
- Product Attributes - Part Type
- Suspension Handling Packages
- Product Attributes - Product Line
- QA1 Level 2 Full Vehicle Handling Suspension Kits
- Product Attributes - UPC
- 806990169341
- Product Attributes - Front Coil Springs Included
- Yes
- Product Attributes - Rear Coil Springs Included
- Yes
- Product Attributes - Rear Leaf Springs Included
- No
- Product Attributes - Front Shocks/Struts Included
- Yes
- Product Attributes - Front Shock Type
- Double adjustable coilover
- Product Attributes - Rear Shocks/Struts Included
- Yes
- Product Attributes - Rear Shock Type
- Double adjustable coilover
- Product Attributes - Front Sway Bar Included
- Yes
- Product Attributes - Front Sway Bar Color
- Black hammertone
- Product Attributes - Front Sway Bar Type
- Hollow
- Product Attributes - Front Sway Bar Diameter (in.)
- 1.375 in.
- Product Attributes - Rear Sway Bar Included
- Yes
- Product Attributes - Rear Sway Bar Color
- Black hammertone
- Product Attributes - Rear Sway Bar Type
- Hollow
- Product Attributes - Rear Sway Bar Diameter (in.)
- 1.250 in.
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - End Link Bushings Included
- Yes
- Product Attributes - Rear Leaf Spring Bushings Included
- No
- Product Attributes - Sway Bar Bushings Included
- Yes
- Product Attributes - Upper Trailing Arms Included
- Yes
- Product Attributes - Lower Trailing Arms Included
- Yes
- Product Attributes - Trailing Arm Mount Braces Included
- Yes
- Product Attributes - Panhard Bar Included
- Yes
- Product Attributes - Torque Arm Included
- Yes
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Front Strut Tower Bar Included
- No
- Product Attributes - K-Member Included
- No
- Product Attributes - K-Member Support Brace Included
- No
- Product Attributes - Rear Strut Tower Bar Included
- No
- Product Attributes - Subframe Connectors Included
- No
- Product Attributes - Chassis Stiffener Included
- No
- Product Attributes - Calipers Included
- No
- Product Attributes - Rotors Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Brake Lines Included
- No
- Product Attributes - Wheel Studs Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - Spindles Included
- No
- Product Attributes - Inner Tie Rod Ends Included
- No
- Product Attributes - Outer Tie Rod Ends Included
- No
- Product Attributes - Bushing Material
- Polyurethane
- Product Attributes - Bushing Color
- Black
- Product Attributes - Mounting Hardware Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapBW02-GMG1 |
| SFX Item ID | 4562877 |
| Supplier Item Code | 4562877 |
| Manufacturer SKU | BW02-GMG1 |
| Manufacturer UPC | N/A |
| Alternative References | QA1, qap-5247, qap-5250, 3.4in, 4.15in, qap52565 |
