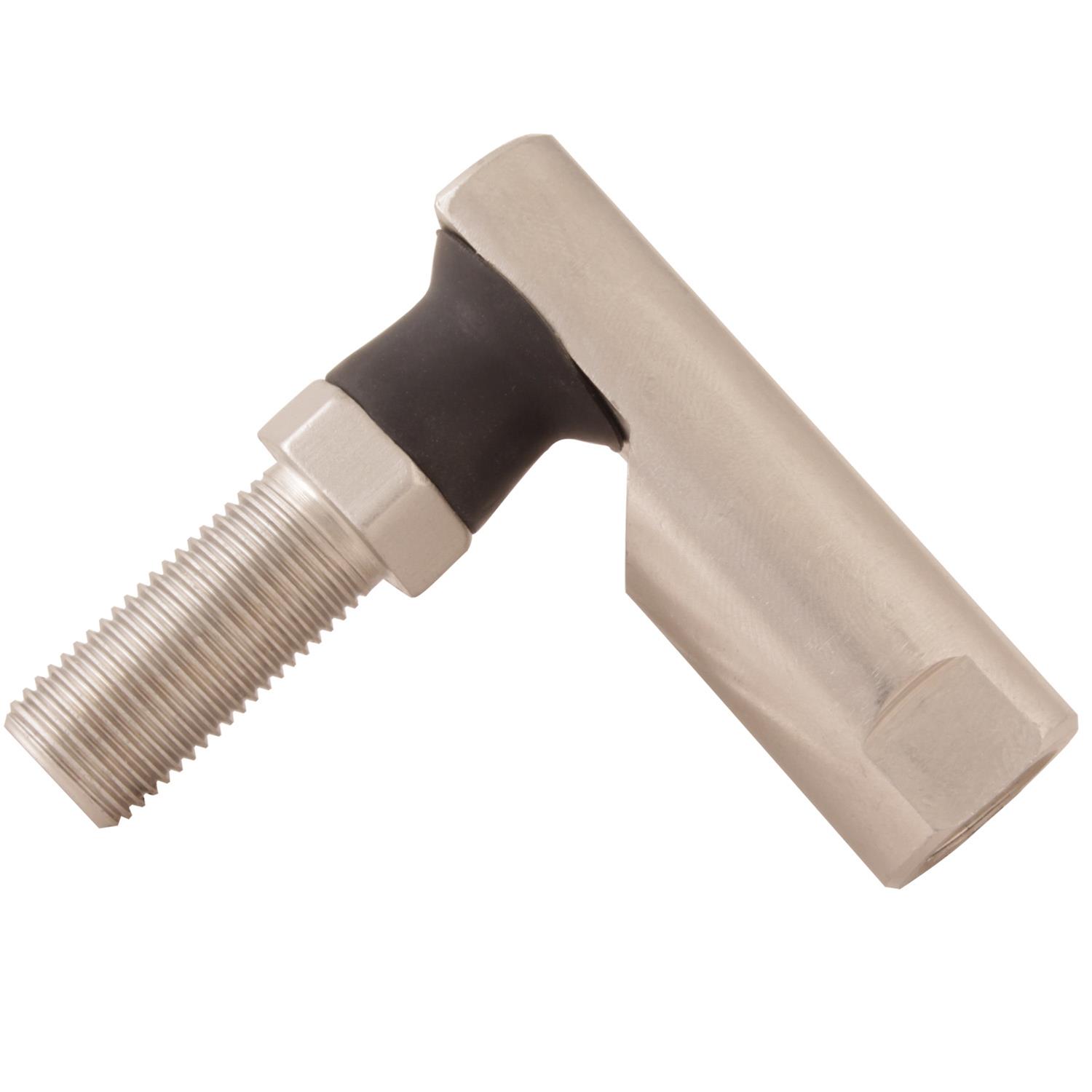

QA1 Grommet Ball Joint - 3/8-24 UNF Right Hand - 304 Stainless Steel
QA1 Grommet Ball Joint - 3/8-24 UNF Right Hand - 304 Stainless Steel
A$21.21
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 staked ball joints are designed with the ball staked into the housing to restrict excessive play. This also makes them ideal for applications requiring higher pullout loads and misalignment angles. These industrial ball joints are available in carbon or stainless steel, and right or left hand thread versions. They feature a rubber boot to help prevent contamination in the joint area. Whether your application is OEM or aftermarket, motorsport or agricultural, or something else entirely—QA1 staked ball joints help you successfully complete your project with confidence.
Product Overview
In the widely used staked ball joint assembly, the tube is swaged around the ball for a metal-to-metal ball joint that doesn?t allow excessive play. QA1's staked ball joints include a rubber grommet or boot that acts as a highly effective seal against debris. Right and left hand threads are available for use in various OEM and aftermarket applications, including motorsports, lawn and garden, agricultural and construction equipment and many other applications. Commonly used in sway bar end links, throttle and shifter linkages and various other linkages. BALL STUD, , Carbon Steel, Protective Coated for Corrosion Resistance, BODY, , Carbon Steel, Protective Coated for Corrosion Resistance, SPRING, , Stainless Steel.
Features and Benefits
- Ideal for applications requiring rapid assembly or disassembly
- Available in carbon or stainless steel
- Choose standard or metric thread pitch
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 Grommet Ball Joint - 3/8-24 UNF Right Hand - 304 Stainless Steel |
| Manufacturer Part Number: | BJGR6H |
| Part Number: | qapBJGR6H |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 Suspension Ball Joint BJGR6H |
| UPC: | 806990123749 |
Part Type
Multi-Purpose Ball Joint
Features
- Available in carbon or stainless steel
- Choose standard or metric thread pitch
- Ideal for applications requiring rapid assembly or disassembly
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- BJGR6H
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 Staked Ball Joints
- Product Attributes - UPC
- 806990123749
- Product Attributes - Rod End Thread Size
- 3/8 in.-24
- Product Attributes - Rod End Attachment
- Female threads
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- Metal to metal
- Product Attributes - Thread Length
- 0.750 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.375 in.
- Product Attributes - Heat-Treated
- No
- Product Attributes - Rod End Misalign Angle
- 38 degrees
- Product Attributes - Rod End Material
- Stainless steel
- Product Attributes - Rod End Finish
- Natural
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapBJGR6H |
| SFX Item ID | 4092985 |
| Supplier Item Code | 4092985 |
| Manufacturer SKU | BJGR6H |
| Manufacturer UPC | 806990123749 |
| Alternative References | qa1, QA1-BJGR6H |
