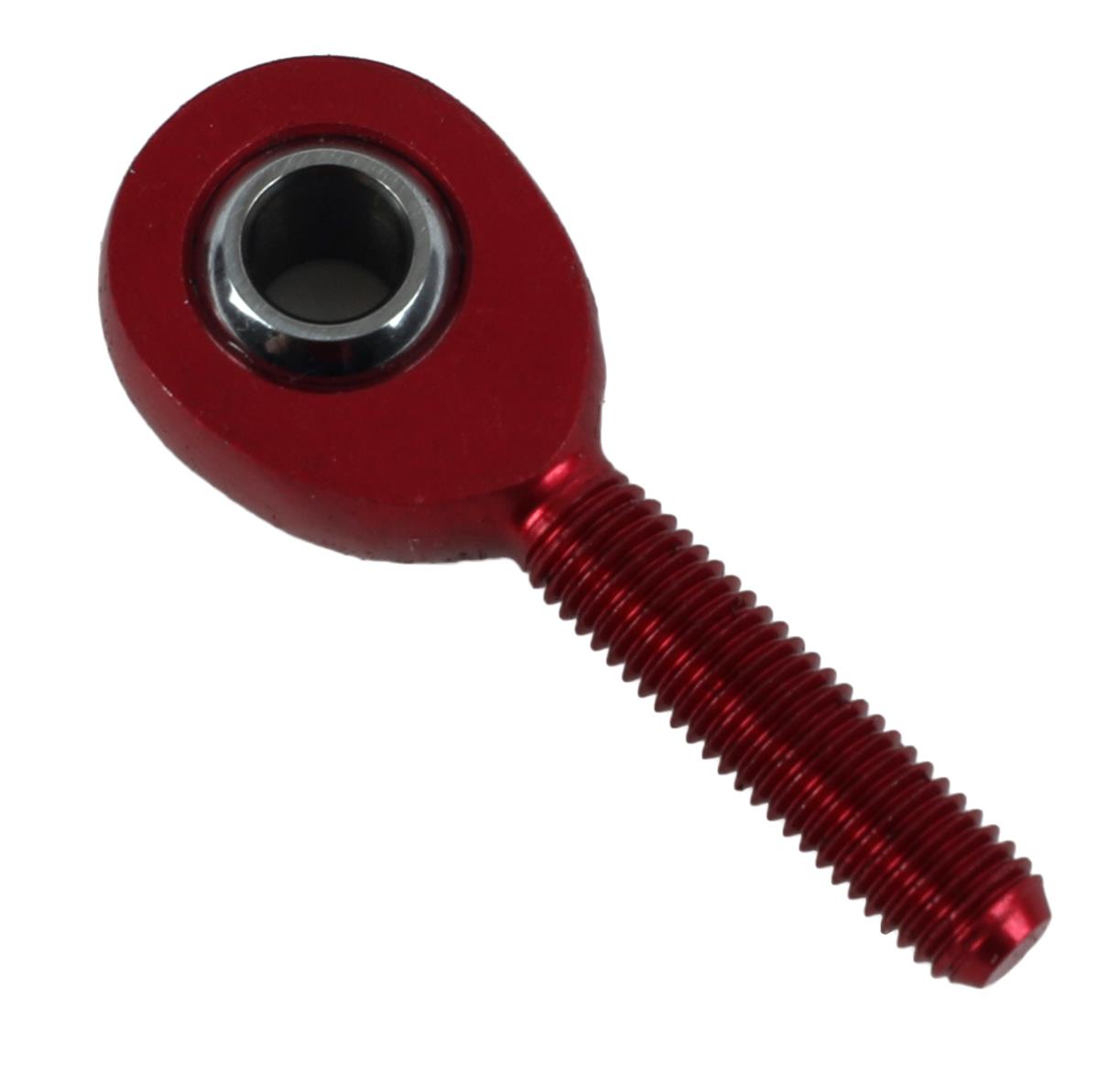

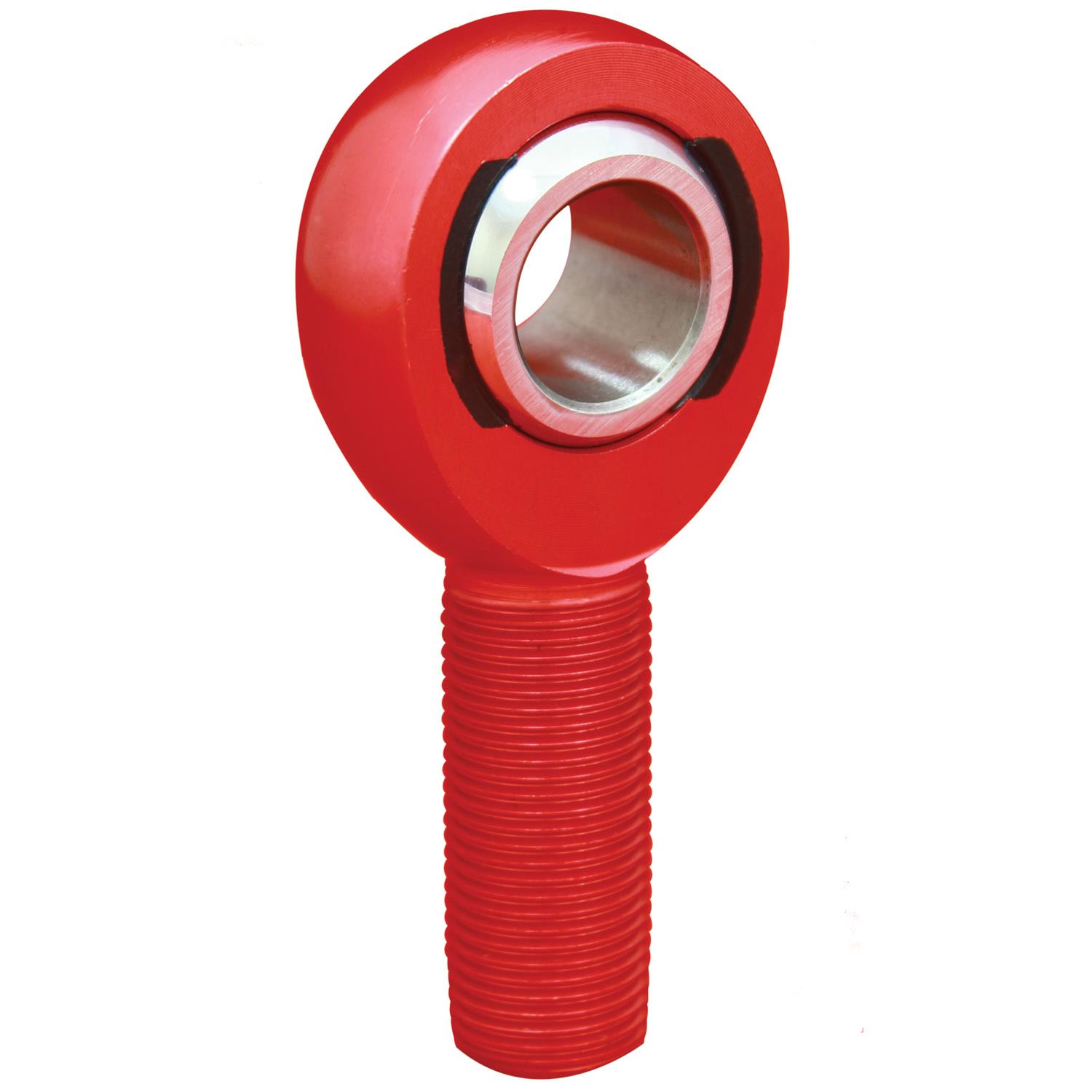

QA1 A Series Endura Rod End - Male/Left Hand - .25in Bore x 1/4-28 - Red Aluminum
QA1 A Series Endura Rod End - Male/Left Hand - .25in Bore x 1/4-28 - Red Aluminum
A$18.63
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
QA1 A Series rod ends are 10 percent lighter than traditional 3-piece rod ends. They feature metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength. A self-sealing liner that won't pound out like other styles extends the life of the rod ends as well. So, add some strength and reduce weight at the same time with durable QA1 A Series rod ends.
Product Overview
AM Aluminum Series rod ends from QA1 are male rod ends that are designed specifically to save weight on performance applications. They feature a Nylon/PTFE injection molded race and are completely self-sealing and self-lubricating, keeping dirt and debris out. The AM Series rod ends are over 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Nylon/PTFE, Self-Lubricating, Self-Sealing, , BODY, Aircraft Aluminum, Color Anodized Red as Standard, , EXCLUSIVE FEATURES, Metal to Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength.
Features and Benefits
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 A Series Endura Rod End - Male/Left Hand - .25in Bore x 1/4-28 - Red Aluminum |
| Gasket Or Seal Included: | No |
| Inside Diameter: | 0.25 |
| Manufacturer Part Number: | AML4 |
| Outside Diameter: | 0.75 |
| Part Number: | qapAML4 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Race Included: | Yes |
| Title: | QA1 Suspension Rod End Bearing AML4 |
| UPC: | 806990008435 |
| Width: | 0.375 |
Part Type
Suspension Rod End Bearing
Features
- Guaranteed strength, durability and quality champions demand
- Precise tolerances
- Rod ends for every motorsport need
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- AML4
- Product Attributes - Part Type
- Rod Ends
- Product Attributes - Product Line
- QA1 A Series Rod Ends
- Product Attributes - UPC
- 806990008435
- Product Attributes - Rod End Thread Size
- 1/4 in.-28 LH
- Product Attributes - Rod End Attachment
- Male threads
- Product Attributes - Rod End Head Bore Size
- 0.250 in.
- Product Attributes - Rod End Construction
- 2-piece
- Product Attributes - Jam Nut Included
- No
- Product Attributes - Rod End Style
- PTFE/Kevlar® lined
- Product Attributes - Thread Length
- 1.000 in.
- Product Attributes - Rod End Head Diameter
- 0.750 in.
- Product Attributes - Rod End Head Width
- 0.375 in.
- Product Attributes - Grease Fitting
- No
- Product Attributes - Rod End Centerline Length
- 1.562 in.
- Product Attributes - Heat-Treated
- Yes
- Product Attributes - Rod End Ball Width
- 0.375 in.
- Product Attributes - Rod End Misalign Angle
- 16 degrees
- Product Attributes - Rod End Static Load Capacity
- 1,433 lbs.
- Product Attributes - Rod End Material
- Aluminum
- Product Attributes - Rod End Finish
- Red anodized
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Only the rod end ball is heat-treated.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qapAML4 |
| SFX Item ID | 4092889 |
| Supplier Item Code | 4092889 |
| Manufacturer SKU | AML4 |
| Manufacturer UPC | 806990008435 |
| Alternative References | qa1, QA1-AML4, .25in |
