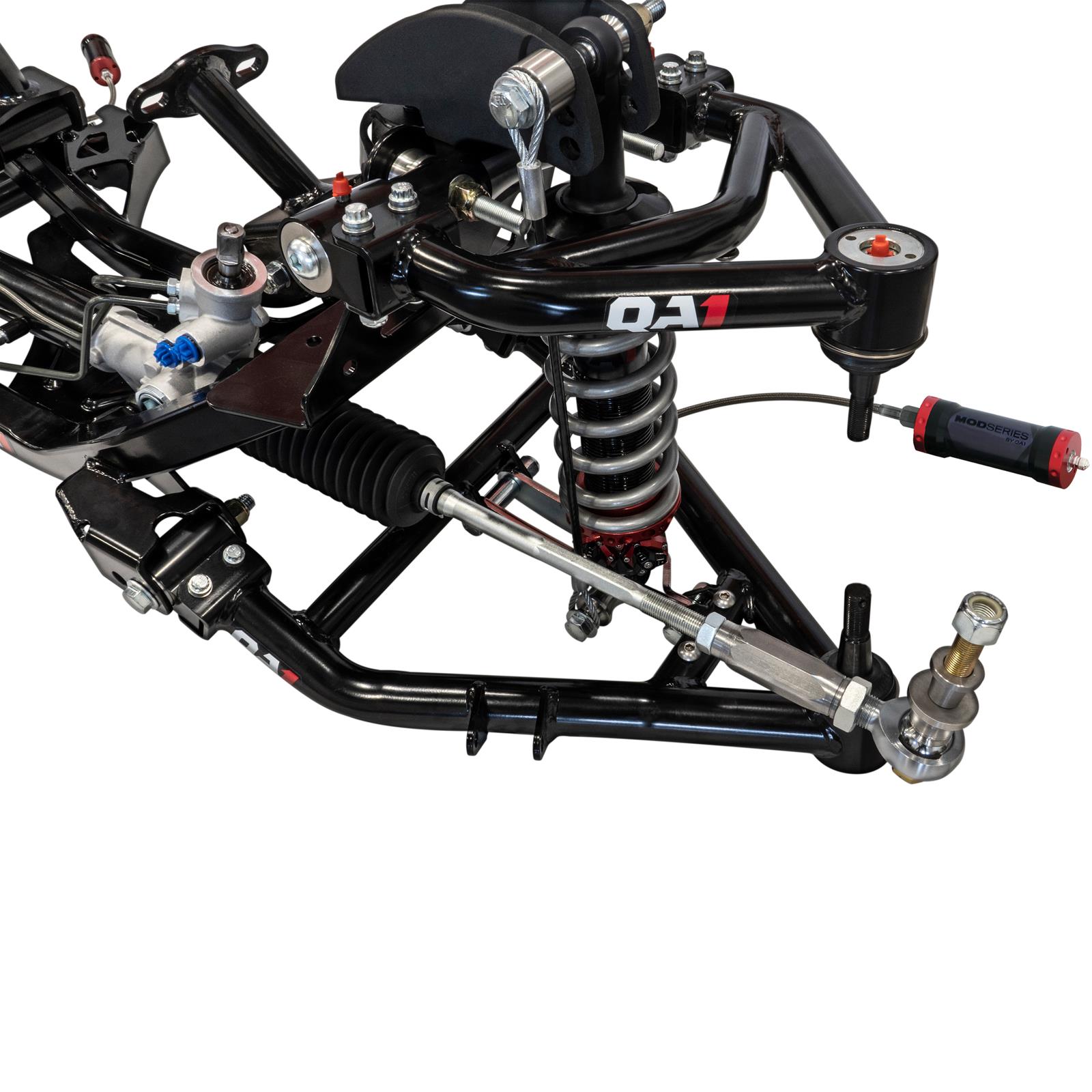

QA1 63-72 Chevrolet C10 Front Suspension Kit - Mod Series - 850lb/in
QA1 63-72 Chevrolet C10 Front Suspension Kit - Mod Series - 850lb/in
A$22,278.01
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Upgrade your classic truck to a modern driving feel and performance with QA1's 1963-1972 C10 coilover conversion systems. The kits come with everything you need to convert your C10's front end to coilovers and a tubular crossmember with rack-and-pinion steering. These systems are a great way to overhaul your suspension in one go, giving you adjustable ride height to achieve the perfect stance with up to 8 in. of drop—all while dialing in the ideal ride quality and performance for your application while reducing weight 140 lbs. over stock. Order the QA1 1963-72 C10 coilover conversion system recommended for your year/make and model vehicle.
Product features and details:
* Powered rack-and-pinion offers quicker steering and a tighter feel. Plus, increase steering angle when fitting larger wheels and tires, and improve geometry for enhanced drivability
* Increased Ground Clearance: The crossmember and control arms make your undercab rails the truck's lowest point—new upper shock mounts increase travel for a great ride and performance, even at low ride heights
* Adjustable Shock Valving: Double-adjustable shocks offer independent rebound and compression tunability—great for trucks that will see track time or drivers who really want to dial in ride quality on the street
* Easy, Bolt-In Installation: The crossmember comes powder coated and ready to install—no need to cut or weld your frame—it easily locates the steering rack, and you can choose mounts (sold separately) for common engines
* Modular Engine Mounts: Choose from modular engine mounts (sold separately) that allow you to reuse your existing transmission mount and driveshaft (kits are available for small block Chevy, big block Chevy and LS applications—DIY mounts are also available if you want to customize the location of your engine
* Front Sway Bar: The optional front sway bar (sold separately) adds even more cornering capabilities—it reduces body roll and keeps your tires planted to give you more grip in the turns
Fitment Notes:
* If you already have QA1's coil-over system, you can find retrofit kits to use your existing components
* Total drop range depends on wheel/tire fitment
* Will require you to trim inner fenders
* Engine mounts are year-range specific to maintain OE bellhousing location
* Optimized bump steer settings require at least 18 in. wheels
-- 18 in. wheels can run up to 6 in. of backspacing
-- 20 in. wheels can run up to 7 in. of backspacing
* Requires use of C10 spindles
* May require different headers and oil pan (Stock SBC and BBC pans fit)
* Steering shaft is not included
* May require new power steering hoses depending on fittings, pump, and engine placement
Product Overview
Front coil-over conversion kit for 63-72 C10 trucks. Includes upper and lower control arms, MOD Series shocks, high travel springs, upper bracket, crossmember, and all hardware.
Features and Benefits
- Easy bolt-in install
- Adjustable ride height
- Performance enhancing geometry
- Adjustable shock valving options for all driving scenarios
- Durable
- stronger than stock components
- Best-in-class warranty
- Made in the USA
Product Details
| Brand: | QA1 |
|---|---|
| Description: | QA1 63-72 Chevrolet C10 Front Suspension Kit - Mod Series - 850lb/in |
| Manufacturer Part Number: | 52622-M850 |
| Part Number: | qap52622-M850 |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov |
| Prop 65 Yes/No: | Yes |
| Title: | QA1 52622-M850 C10 Dropped Crossmember Suspension Kit, 1963-1972 |
| UPC: | 806990168122 |
Part Type
Coilover Adjustable Spring Lowering Kit
Features
- Adjustable ride height
- Adjustable shock valving options for all driving scenarios
- Best-in-class warranty
- Durable
- Easy bolt-in install
- Made in the USA
- Performance enhancing geometry
- stronger than stock components
Specifications
- Product Attributes - Brand
- QA1
- Product Attributes - Manufacturer's Part Number
- 52622-M850
- Product Attributes - Part Type
- Front Suspension Packages
- Product Attributes - Product Line
- QA1 1963-72 C10 Coilover Conversion Systems
- Product Attributes - UPC
- 806990168122
- Product Attributes - Crossmember Included
- Yes
- Product Attributes - Crossmember Material
- Steel
- Product Attributes - Crossmember Color
- Black powdercoated
- Product Attributes - Welding Required
- No
- Product Attributes - Front Spindles Included
- No
- Product Attributes - Upper Control Arms Included
- Yes
- Product Attributes - Lower Control Arms Included
- Yes
- Product Attributes - Control Arm Style
- Tubular
- Product Attributes - Control Arm Material
- Steel
- Product Attributes - Control Arm Color
- Black
- Product Attributes - Upper Ball Joints Included
- Yes
- Product Attributes - Lower Ball Joints Included
- Yes
- Product Attributes - Rack and Pinion Included
- Yes
- Product Attributes - Steering Rack Type
- Hydraulic power assist
- Product Attributes - Rack Material
- Aluminum
- Product Attributes - Rack Color
- Natural
- Product Attributes - Shocks Included
- Yes
- Product Attributes - Shock Type
- Double adjustable coilover
- Product Attributes - Coilover Springs Included
- Yes
- Product Attributes - Coilover Spring Rate (lbs/in)
- 850 lbs./in.
- Product Attributes - Spring Finish
- Black
- Product Attributes - Disc Brake Kit Included
- No
- Product Attributes - Front Rotor Included
- No
- Product Attributes - Front Caliper Included
- No
- Product Attributes - Brake Pads Included
- No
- Product Attributes - Sway Bar Included
- No
- Product Attributes - Center Link Included
- No
- Product Attributes - King Pins Included
- No
- Product Attributes - King Pin Bearings Included
- No
- Product Attributes - Pitman Arm Included
- No
- Product Attributes - Idler Arm Included
- No
- Product Attributes - Tie Rod Sleeves Included
- Yes
- Product Attributes - Inner Tie Rod Ends Included
- Yes
- Product Attributes - Outer Tie Rod Ends Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- MOD series shocks. Requires use of 1973-87 C10 spindles.
Reference Information
| Brand Name/s | Qa1 |
|---|---|
| StreetFX SKU | qap52622-M850 |
| SFX Item ID | 4096323 |
| Supplier Item Code | 4096323 |
| Manufacturer SKU | 52622-M850 |
| Manufacturer UPC | 806990168122 |
| Alternative References | qa1, QA1-52622-M850, C10, 850lb/in |
