Description

QA1 offers upper and lower rear trailing arms for Ford and GM applications in boxed, tubular, and heavy-duty adjustable options. All upper tubular and lower boxed trailing arms use polyurethane bushings on both ends, while upper adjustable and lower tubular trailing arms use a spherical ball or rod end assembly on the chassis end to eliminate bushing bind, allowing the suspension to move smoother for better control. They are powdercoated or zinc plated and anodized for a long-lasting finish. Keep your tires planted firmly on the ground for improved traction and a more predictable, better handling car with a set of QA1 rear trailing arms.

Features may include:

* Boxed trailing arms are constructed from 0.120 in. wall cold rolled steel tubing for maximum strength and flex elimination.
* Tubular trailing arms are constructed from 1 1/4 in. diameter, 0.120 in. wall steel tubing which offers increased strength over other designs, but also have the added advantage of lighter weight.
* Boxed and tubular styles feature fluted, greasable polyurethane bushings, which are superior to the stock rubber bushings.
* Heavy-duty adjustable trailing arms allow easy rear suspension adjustments for optimum handling and traction. Simply loosen the jam nuts and adjust the pinion angle without removing the arms from the vehicle. They replace soft OE differential bushings with polyurethane differential bushings, and they use a spherical ball or rod end assembly with UHMW polyethylene bushings on the chassis end
* Adjustable styles are available in aluminum and steel options

Product Overview

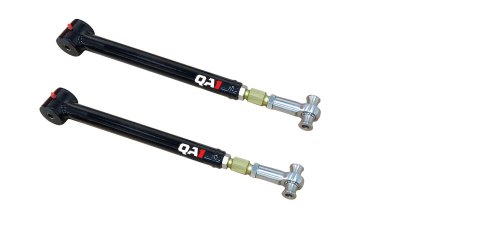

Big Wheel Adjustable Lower Trailing Arms, 71-96 GM B-Body

Features and Benefits

• Direct fit options for many popular GM, Ford & Mopars
• Adjustable arms offer easy wheelbase and pinion angle adjustment
• Easy, bolt-in install
• Made in the USA

Product Details

Brand:	QA1
Description:	QA1 71-96 GM B-Body Trailing Arms Lower Adjustable
Manufacturer Part Number:	5201
Part Number:	qap5201
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
Prop 65 Yes/No:	Yes
Title:	QA1 Suspension Trailing Arm 5201
UPC:	806990168856

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	qapBW01-GMB4	QA1 71-76 GM B-Body Level 1 Big Wheel Kit (1x qap5252, 1x qap5254, 2x qap7888-109, 1x qapGS507-10550C, 2x qapT115W, 1x qapRCK52361, 1x qap5201)
	qapBW01-GMB5	QA1 77-90 GM B-Body Level 1 Big Wheel Kit (1x qap5252, 1x qap5254, 2x qap7888-109, 1x qapGS507-10450C, 1x qapRCK52384, 2x qapT115W, 1x qap5201)
	qapBW01-GMB6	QA1 91-96 GM B-Body Level 1 Big Wheel Kit (1x qap5252, 1x qap5254, 2x qap7888-109, 1x qapGS507-10550C, 1x qapRCK52384, 2x qapT115W, 1x qap5201)
	qapBW02-GMB4	QA1 71-76 GM B-Body Level 2 Big Wheel Kit (1x qap52518, 1x qap5252, 1x qap5254, 2x qap7888-109, 1x qapGD507-10550C, 2x qapT115W, 1x qapRCK52364, 1x qap52721, 1x qap52850, 1x qap52851, 1x qap5201)
	qapBW02-GMB5	QA1 Level 2 Big Wheel Kits BW02-GMB5 Suspension Handling Packages, Kits, Coil Springs, Shocks/Struts, 0-2.000 in. Drop, Buick, Chevrolet, Oldsmobile, Pontiac, Kit
	qapBW02-GMB6	QA1 91-96 GM B-Body Level 2 Big Wheel Kit (1x qap52518, 1x qap5252, 1x qap5254, 1x qap52720, 1x qap52862, 2x qap7888-109, 1x qapGD507-10650C, 1x qapRCK52380, 2x qapT115W, 1x qap52851, 1x qap5201)
	qapBW03-GMB4	QA1 71-76 GM B-Body Level 3 Big Wheel Kit (1x qap52518, 1x qap5252, 1x qap5254, 2x qap9039-308, 1x qapMG507-10600C, 2x qapT121W, 1x qapRCK52461, 1x qap52721, 1x qap52850, 1x qap52851, 1x qap5201)
	qapBW03-GMB5	QA1 77-90 GM B-Body Level 3 Big Wheel Kit (1x qap52518, 1x qap5252, 1x qap5254, 1x qap52720, 1x qap52862, 2x qap9039-308, 1x qapMG507-10500C, 2x qapT121W, 1x qapRCK52464, 1x qap52851, 1x qap5201)
	qapBW03-GMB6	QA1 91-96 GM B-Body Level 3 Big Wheel Kit (1x qap52518, 1x qap5252, 1x qap5254, 1x qap52720, 1x qap52862, 2x qap9039-308, 1x qapMG507-10650C, 2x qapT121W, 1x qapRCK52464, 1x qap52851, 1x qap5201)

Data: v4.2 - Upd: 2026-10-31 01:35:50

Features

Specifications

Product Attributes - Brand

QA1

Product Attributes - Manufacturer's Part Number

5201

Product Attributes - Part Type

Control Arms

Product Attributes - Product Line

QA1 Rear Trailing Arms

Product Attributes - UPC

806990168856

Product Attributes - Control Arm Style

Tubular

Product Attributes - Control Arm Material

Steel

Product Attributes - Ball Joint Included

No

Product Attributes - Bushings Included

Yes

Product Attributes - Control Arm Color

Black

Product Attributes - Adjustable

Yes

Product Attributes - Hardware Included

Yes

Product Attributes - Bushing Material

Polyurethane

Product Attributes - Quantity

Sold as a pair.
