Home / Shop / Peterson Fluid Systems R4 Oil Pumps 04-1496-HEX Pump, Wet Sump, High-Volume, High-Pressure, Reverse Rotation, 3/8 in. Hex Driveshaft, Fittings Included, V-Band Mount, Rear Drive, One Stage, Each

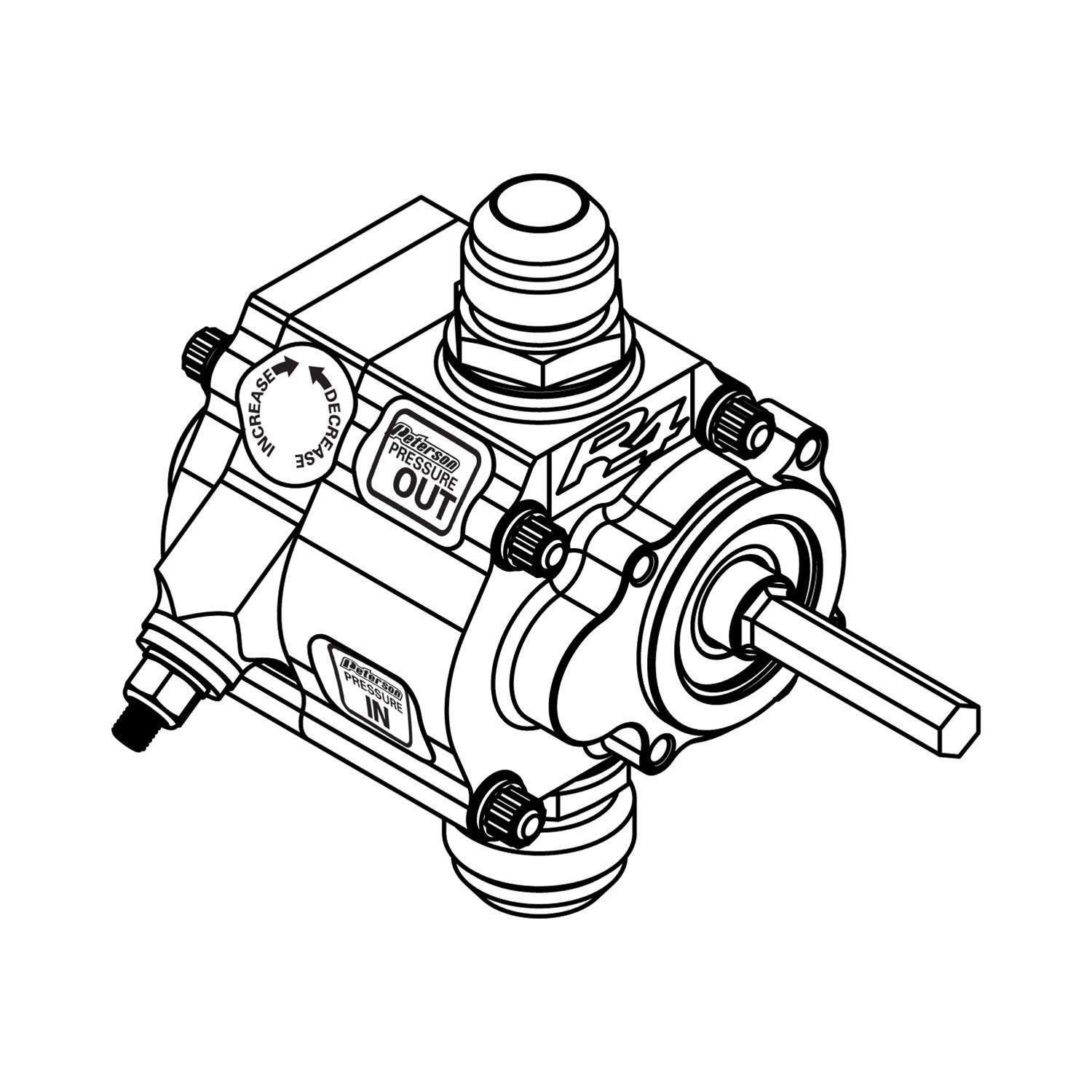

Peterson Fluid Systems R4 Oil Pumps 04-1496-HEX Pump, Wet Sump, High-Volume, High-Pressure, Reverse Rotation, 3/8 in. Hex Driveshaft, Fittings Included, V-Band Mount, Rear Drive, One Stage, Each

SKU: PFS04-1496-HEX

Oil Pumps

Peterson Fluid Systems

Peterson Fluid Systems R4 Oil Pumps 04-1496-HEX Pump, Wet Sump, High-Volume, High-Pressure, Reverse Rotation, 3/8 in. Hex Driveshaft, Fittings Included, V-Band Mount, Rear Drive, One Stage, Each

SKU: PFS04-1496-HEX

Oil Pumps

LAST ONE! Est Ship 4-7 days. LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

IMPORTANT NOTICE: V-band mount rear drive pump with 3/8 in. hex driveshaft. V-band mount for ProCharger Crankdrive not included.

Peterson Fluid Systems R4 oil pumps utilize a revolutionary twisted lobe rotor design, allowing for all-aluminum rotors in all sections—saving a huge amount of weight while also increasing performance. Offered in wet and dry sump styles, the pumps are designed with shallow-depth screw-in fittings, creating low-profile modular units that can be outfitted with numerous options to be suited for a variety of applications. Hundreds of models are available; select the options that best suit your application.

Peterson Fluid Systems R4 oil pumps feature:

* 6061-T6 billet aluminum
* CNC-machined for precision
* Unique twisted 4-lobe rotor
* Tab mounting system to save weight
* Low profile for easier mounting
* Wet sump pumps are single stage
* Dry sump pumps are offered in 2 to 8 stages
* Stages refer to total number of pumping bodies including one pressure section

Part Type

Oil Pump 1-Stage 1.4psi Reverse Rotation

Data: v4.2 - Upd: 2026-10-16 05:03:29

Specifications

Product Attributes - Brand: Peterson Fluid Systems
Product Attributes - Manufacturer's Part Number: 04-1496-HEX
Product Attributes - Part Type: Oil Pumps
Product Attributes - Product Line: Peterson Fluid Systems R4 Oil Pumps
Product Attributes - UPC: 00082642012856
Product Attributes - Oil Pump Style: Wet sump
Product Attributes - Oil Pump Volume: High-volume
Product Attributes - Oil Pump Pressure: High-pressure
Product Attributes - High-Pressure Oil Pump Spring Included: Yes
Product Attributes - Pickup Included: No
Product Attributes - Hardened Driveshaft Recommended: No
Product Attributes - Oil Pump Driveshaft Included: No
Product Attributes - External Oil Pump Stage Quantity: One
Product Attributes - External Oil Pump Pressure Section: 1.400 in.

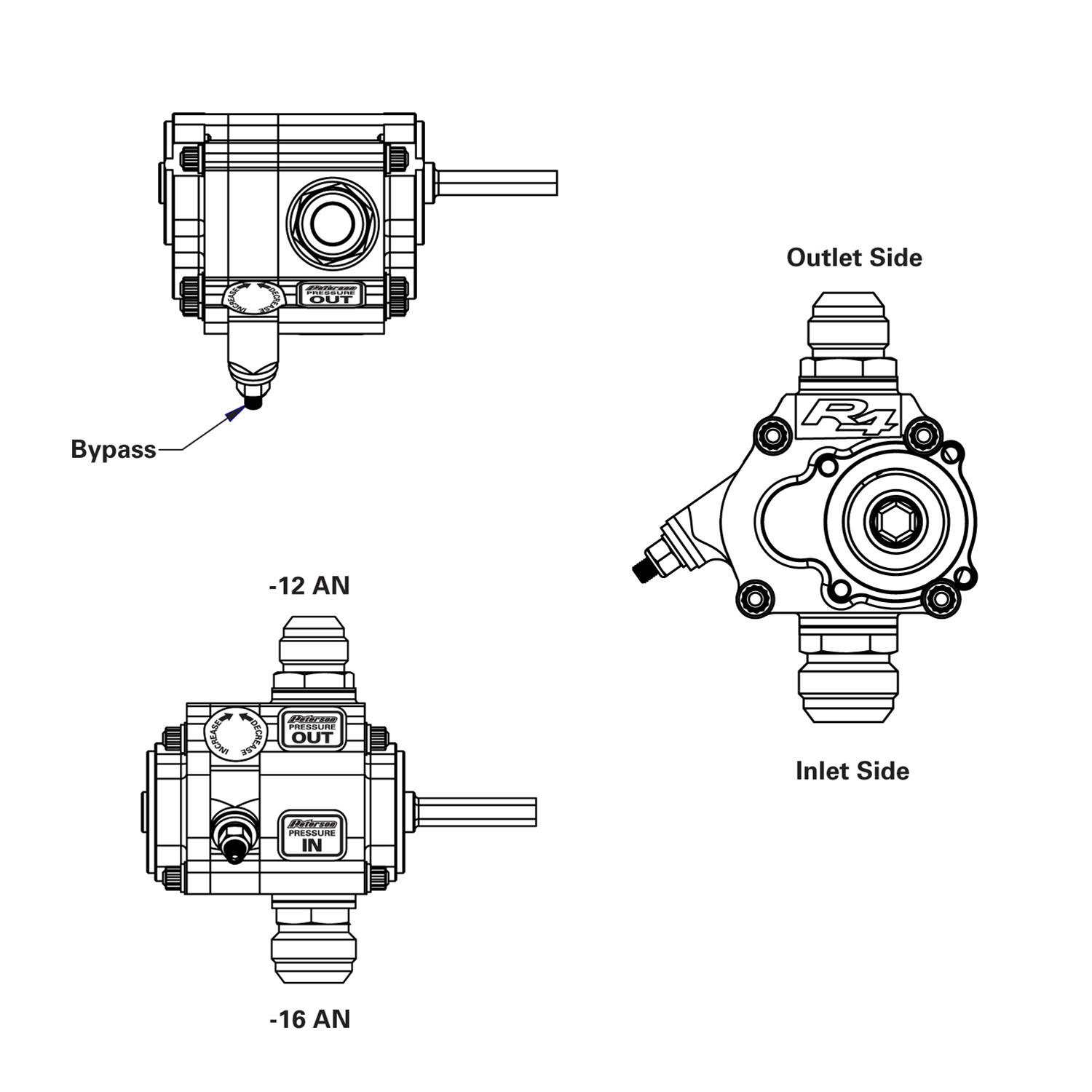

Product Attributes - Pressure Section Inlet Size: -16 AN
Product Attributes - Pressure Section Outlet Size: -12 AN
Product Attributes - Scavenge Section Inlet Size: -12 AN
Product Attributes - Scavenge Section Outlet Size: -16 AN
Product Attributes - External Oil Pump Pulley Included: No
Product Attributes - External Oil Pump Belt Included: No
Product Attributes - External Oil Pump Mounting Brackets Included: No
Product Attributes - External Oil Pump Rotation: Counterclockwise
Product Attributes - Hardware Included: No
Product Attributes - Gaskets Included: No
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold individually.
Product Attributes - Notes: V-band mount rear drive pump with 3/8 in. hex driveshaft. V-band mount for ProCharger Crankdrive not included.

Reference Information

Brand Name/s	Peterson Fluid Systems
StreetFX SKU	pfs04-1496-HEX
SFX Item ID	4984364
Supplier Item Code	4984364
Manufacturer SKU	04-1496-HEX
Manufacturer UPC	82642012856
Alternative References	PFF-04-1496-HEX, PTR04-1496-HEX
