Oracle Smart Touch RGB Dimmer
Oracle Smart Touch RGB Dimmer
A$215.15
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description

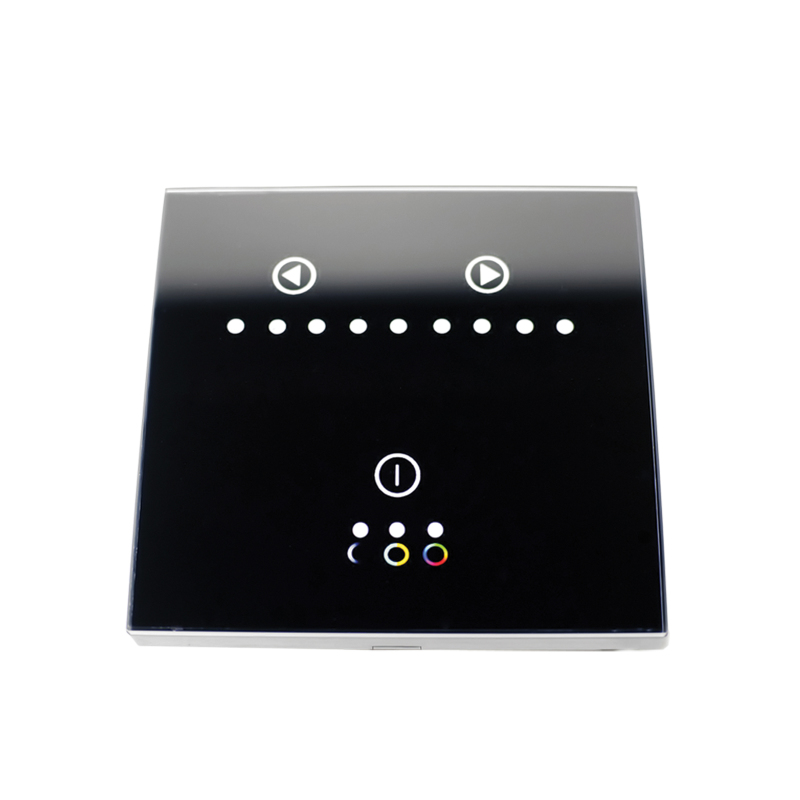

The ORACLE Touch Panel RGB DImmer is a newly developed high-end controller. It adopts a glass panel design, giving it a modern, sleek appearance. It has a high precision touch control chip, that increases touch sensitivity and reduces mistaken triggers. These control panels are specially used for controlling a variety of LED Lighting. For example like RGB Flex LED Lighting Strips, wall washer lights, panel lights, etc. Easy to connect, easy to use features such as jump changing, gradual changing, strobe, flash as well as other modes. Description: The Power Button: 1)A short press turns the controller on/off at any state. 2) A long press cycles between 3 different modes (shown by indicators). Indicator 1: Indicates that RGB mode is selected. Indicator 2: Indicates that color temperature mode is selected. Indicator 3: Indicates that dimmer mode is selected. The Left Arrow Button: is used to increase parameters (settings). The Right Arrow Button: is used to reduced parameters (settings). Function Instruction RGB Mode: A short press of the Left Arrow Button increases the mode within the RGB Function. A long press of the Left Arrow Button increases the brightness or speed. A short press of the Right Arrow Button reduces the mode. A long press of the Right Arrow Button reduces the brightness or speed. Mode Changes table: NOTE: This table shows the outputs while testing on an ORACLE 2.0 RGB Flex strip. Functions may be different when using other types of RGB strips.
Product Overview
The ORACLE Touch Panel RGB DImmer is a newly developed high-end controller. It adopts a glass panel design, giving it a modern, sleek appearance. It has a high precision touch control chip, that increases touch sensitivity and reduces mistaken triggers. These control panels are specially used for controlling a variety of LED Lighting. For example like RGB Flex LED Lighting Strips, wall washer lights, panel lights, etc. Easy to connect, easy to use features such as jump changing, gradual changing, strobe, flash as well as other modes. Description: The Power Button: 1)A short press turns the controller on/off at any state. 2) A long press cycles between 3 different modes (shown by indicators). Indicator 1: Indicates that RGB mode is selected. Indicator 2: Indicates that color temperature mode is selected. Indicator 3: Indicates that dimmer mode is selected. The Left Arrow Button: is used to increase parameters (settings). The Right Arrow Button: is used to reduced parameters (settings). Function Instruction RGB Mode: A short press of the Left Arrow Button increases the mode within the RGB Function. A long press of the Left Arrow Button increases the brightness or speed. A short press of the Right Arrow Button reduces the mode. A long press of the Right Arrow Button reduces the brightness or speed. Mode Changes table: NOTE: This table shows the outputs while testing on an ORACLE 2.0 RGB Flex strip. Functions may be different when using other types of RGB strips.
Features and Benefits
- High precision chip to reduce mistaken triggers
Product Details
| Add-On: | N/A |
|---|---|
| Color: | Black |
| Description: | Oracle Smart Touch RGB Dimmer |
| Dimensions: | Weight: 5.8 oz., 3.3 x 3 3 x 1.4 |
| Gender: | Female |
| Length: | 3 |
| Part Number: | orl9053-504 |
| Power Output: | 12V |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Long Label: | Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov |
| Prop 65 - Short Label: | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 - Warning: | Warning - Both Cancer and Reproduction.JPG |
| Prop 65 Yes/No: | Yes |
| Terminal Gender: | Female |
| Terminal Material: | Copper |
| Terminal Quantity: | 4 |
| Terminal Type: | Screw |
| Title: | 9053-504 - ORACLE Smart Touch RGB Dimmer |
| Voltage: | 12 24V DC |
| Wiring Harness Included: | No |
Application Summary
Universal
Part Type
Accessory Power Module Connector
Features
- High precision chip to reduce mistaken triggers
Specifications
- Add-On:
- N/A
- Color:
- Black
- Description:
- Oracle Smart Touch RGB Dimmer
- Dimensions:
- Weight: 5.8 oz., 3.3 x 3 3 x 1.4
- Gender:
- Female
- Length:
- 3
- Part Number:
- orl9053-504
- Power Output:
- 12V
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Long Label:
- Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
- Prop 65 - Short Label:
- WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
- Prop 65 - Warning:
- Warning - Both Cancer and Reproduction.JPG
- Prop 65 Yes/No:
- Yes
- Terminal Gender:
- Female
- Terminal Material:
- Copper
- Terminal Quantity:
- 4
- Terminal Type:
- Screw
- Title:
- 9053-504 - ORACLE Smart Touch RGB Dimmer
- Voltage:
- 12 24V DC
- Wiring Harness Included:
- No
Reference Information
| Brand Name/s | Oracle Lighting |
|---|---|
| StreetFX SKU | orl9053-504 |
| SFX Item ID | 4580667 |
| Supplier Item Code | 4580667 |
| Manufacturer SKU | 9053-504 |
| Manufacturer UPC | 905350420129 |
| Alternative References | OCL9053-504 |
Compatibility
Universal
