Oracle LED Light Bar Deluxe Rocker Switch - Black

SKU: ORL2070-504

Light Wiring Kit

ORL Switches...

Oracle LED Light Bar Deluxe Rocker Switch - Black

Oracle Lighting

Oracle LED Light Bar Deluxe Rocker Switch - Black

SKU: ORL2070-504

Light Wiring Kit

ORL Switches...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

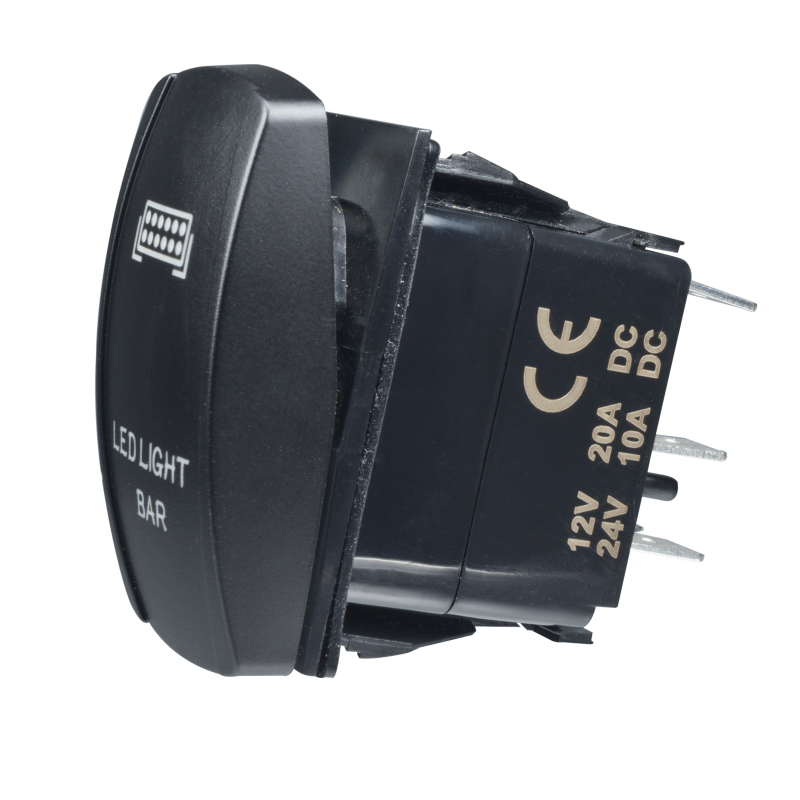

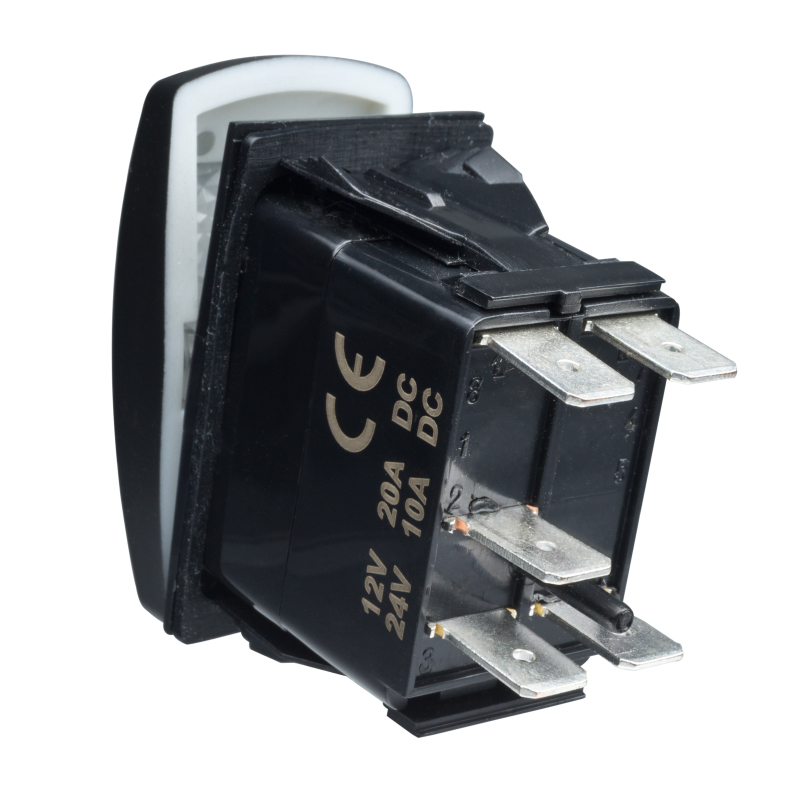

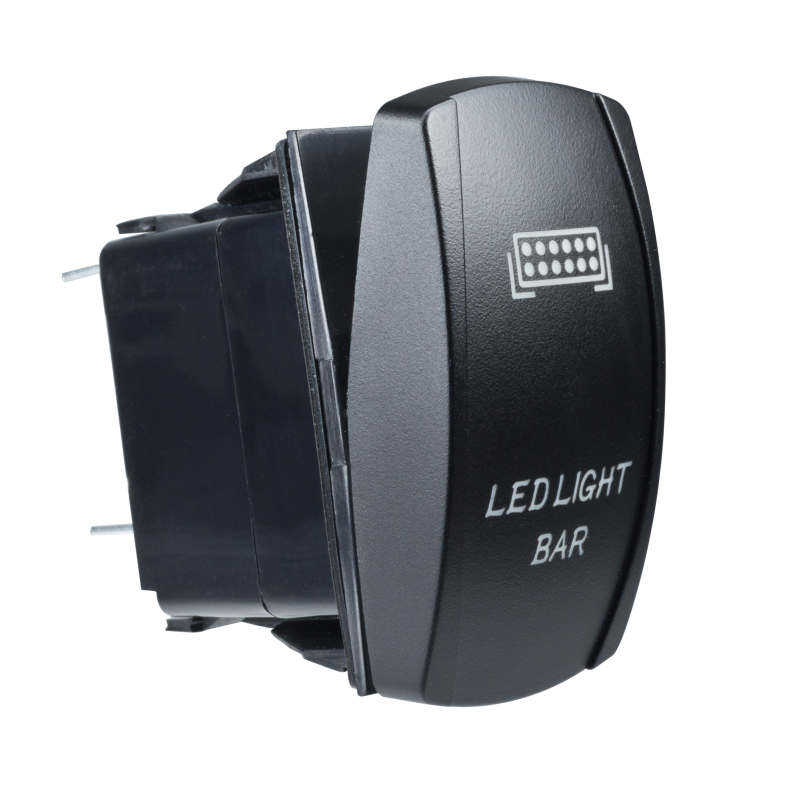

Control your ORACLE Off-Road LED Lights with a simple click! This rocker switch is designed for severe and demanding applications found in off-road vehicles, industrial equipment, heavy equipment, and marine-craft. The lower text illuminates when deactivated, and upper text illuminates when activated. The ORACLE LED Light Bar Deluxe Rocker Switch mounts into industry standard panel cutouts and includes rubber mounting gasket. Product Features: Single Pole / Single Throw (SPST) ON/OFF. Watertight Sealed. Five 1/4" Male Contact Terminals - use Mating 1/4 inch. Female Push ON Connector: CFP-164. Switch Mounting Cutout: 0.830in. by 1.45in. Optimal Panel Thickness: 0.125in (0.030in min. - 0.187in max.) Current Rating: 20A @ 12V. Package Includes: 1 x ORACLE LED Light Bar Deluxe Rocker Switch.

Product Overview

Features and Benefits

Lower text illuminates when deactivated, and upper text illuminates when activated

Product Details

Add-On:	N/A
Contents:	(1x) ORACLE LED Light Bar Deluxe Rocker Switch
Current Rating:	20A at 12V
Description:	Oracle LED Light Bar Deluxe Rocker Switch - Black
LED Color:	Black
Part Number:	orl2070-504
Prop 65 (C, R or CR):	CR
Prop 65 - Long Label:	Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Warning:	Warning - Both Cancer and Reproduction.JPG
Prop 65 Yes/No:	Yes
Switch Mounting Cutout:	0.830in. X 1.45in
Title:	2070-504 - ORACLE LED Light Bar Deluxe Rocker Switch

Application Summary

Universal

Part Type

Light Wiring Kit

Data: v4.2 - Upd: 2026-10-14 13:13:49

Features

Lower text illuminates when deactivated, and upper text illuminates when activated

Specifications

Add-On:: N/A
Contents:: (1x) ORACLE LED Light Bar Deluxe Rocker Switch
Current Rating:: 20A at 12V
Description:: Oracle LED Light Bar Deluxe Rocker Switch - Black
LED Color:: Black
Part Number:: orl2070-504
Prop 65 (C, R or CR):: CR
Prop 65 - Long Label:: Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
Prop 65 - Short Label:: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 - Warning:: Warning - Both Cancer and Reproduction.JPG
Prop 65 Yes/No:: Yes
Switch Mounting Cutout:: 0.830in. X 1.45in
Title:: 2070-504 - ORACLE LED Light Bar Deluxe Rocker Switch

Reference Information

Brand Name/s	Oracle Lighting
StreetFX SKU	orl2070-504
SFX Item ID	4580608
Supplier Item Code	4580608
Manufacturer SKU	2070-504
Manufacturer UPC	207050420158
Alternative References	OCL2070-504
