Msd Ignition
MSD Pro-Billet Distributors 8589 Distributor, Pro-Billet, Magnetic Trigger, Mechanical Advance, Holden, Each
msd8589
A$1,795.60
MSD Power Grid System Controllers 8772 Timing Controllers, Electronic, Controllers, A/Fuel, Digital, RPM Activated, Each
MSD Power Grid System Controllers 8772 Timing Controllers, Electronic, Controllers, A/Fuel, Digital, RPM Activated, Each
A$3,266.39
BACKORDER
This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
We accept
Description

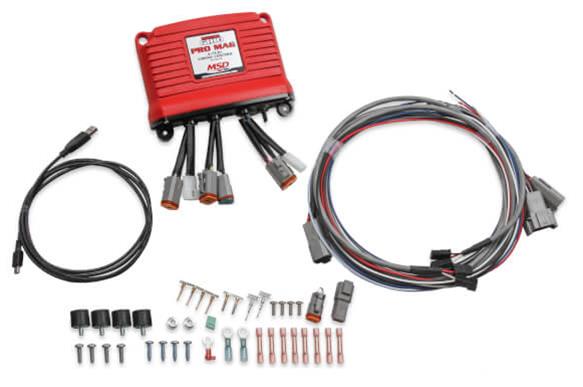

MSD Power Grid system controllers are the brains behind the entire Power Grid system, and they can be used with any MSD ignition or Pro Mag to provide advanced ignition tuning capabilities. While they're compatible with all MSD ignition boxes, they've been specially designed to mount on top of the Power Grid 7 ignition box.
Features include:
* USB connection for easy programming
* Timing based on engine rpm and gear value
* Advanced individual cylinder timing based on gear or time
* Five retard stages for nitrous
* Four steps of rpm limits for burnout, spool, launch, and overrev
* Output switch set on rpm, pressure, or time
* Shift light settings for each gear
* Ignition data acquisition accepts multiple runs
* View software

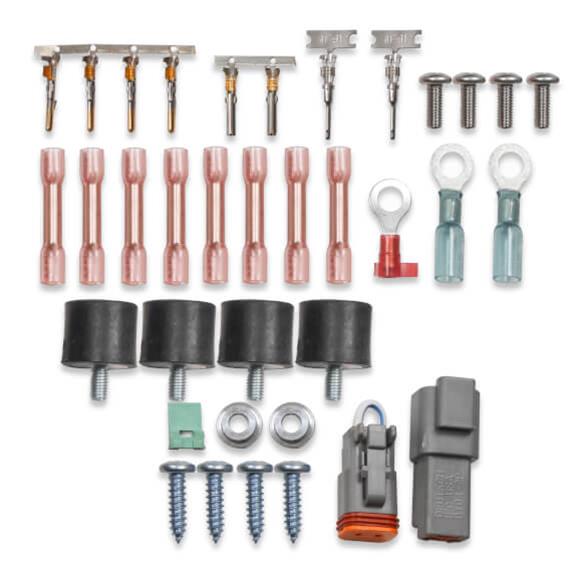

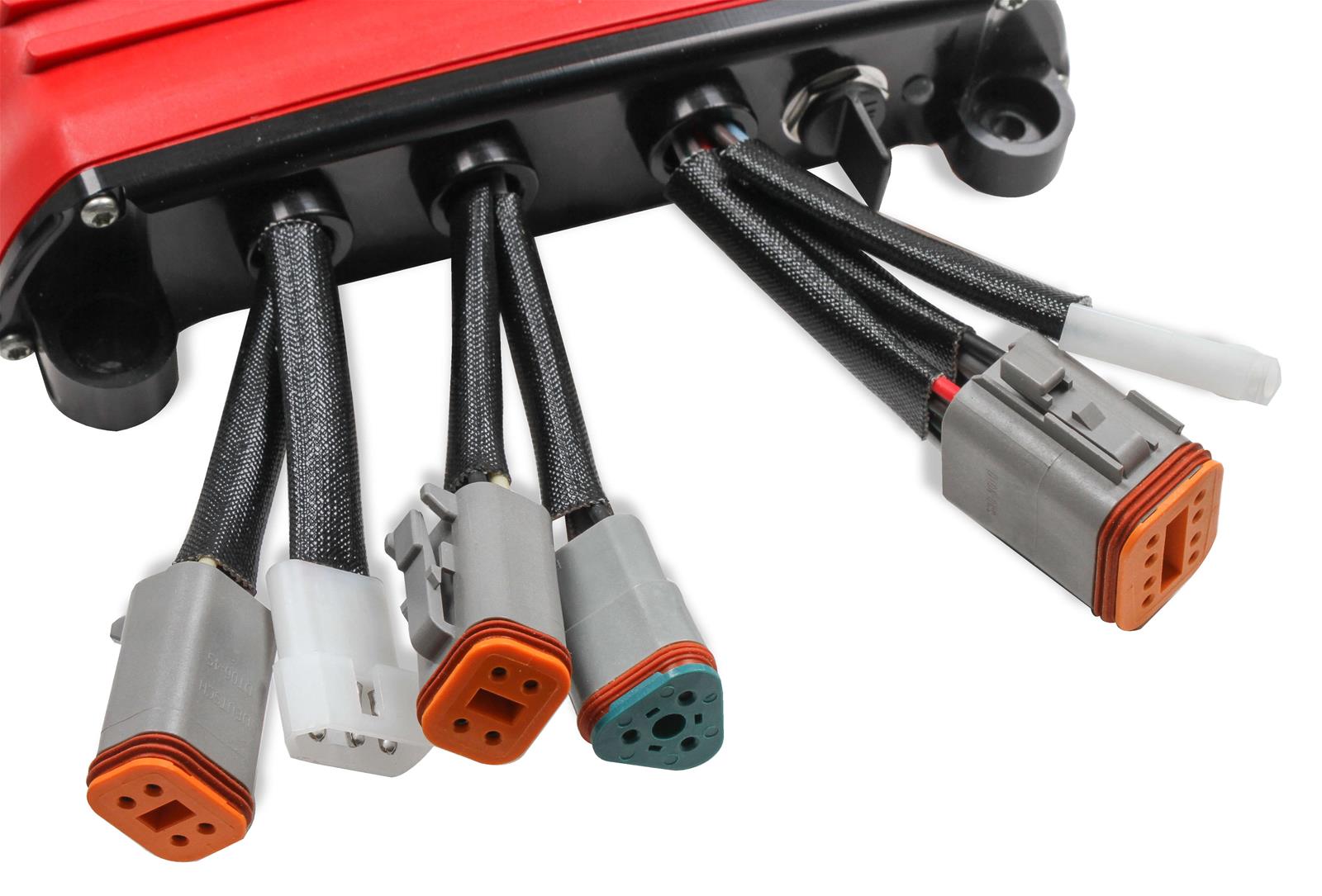

* Wiring harness
* Micro SD-card
Part Type
Timing Controllers, Electronic
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8772
- Product Attributes - Part Type
- Timing Controllers, Electronic
- Product Attributes - Product Line
- MSD Power Grid System Controllers
- Product Attributes - UPC
- 085132087723
- Product Attributes - Circuitry
- Digital
- Product Attributes - Controls Ignition Advance
- Yes
- Product Attributes - Controls Ignition Retard
- Yes
- Product Attributes - Stages of Ignition Retard
- 30
- Product Attributes - Controller Activation
- RPM activated
- Product Attributes - Adjustable
- Yes
- Product Attributes - Adjustment Style
- PC
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Compatible with Multiple Coil Ignitions
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- For use with MSD ProMag systems. When used with single or dual magneto systems on A/Fuel dragsters.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8772 |
| SFX Item ID | 4974231 |
| Supplier Item Code | 4974231 |
| Manufacturer SKU | 8772 |
| Manufacturer UPC | 85132087723 |
