MSD 6EFI Ignition Coils 86415 Coil, Remote Mount, Square, Epoxy, Black, 0.430 ohms, 45,000 Max Volts, Each
MSD 6EFI Ignition Coils 86415 Coil, Remote Mount, Square, Epoxy, Black, 0.430 ohms, 45,000 Max Volts, Each
Sale ends in Calculating...
A$262.07
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

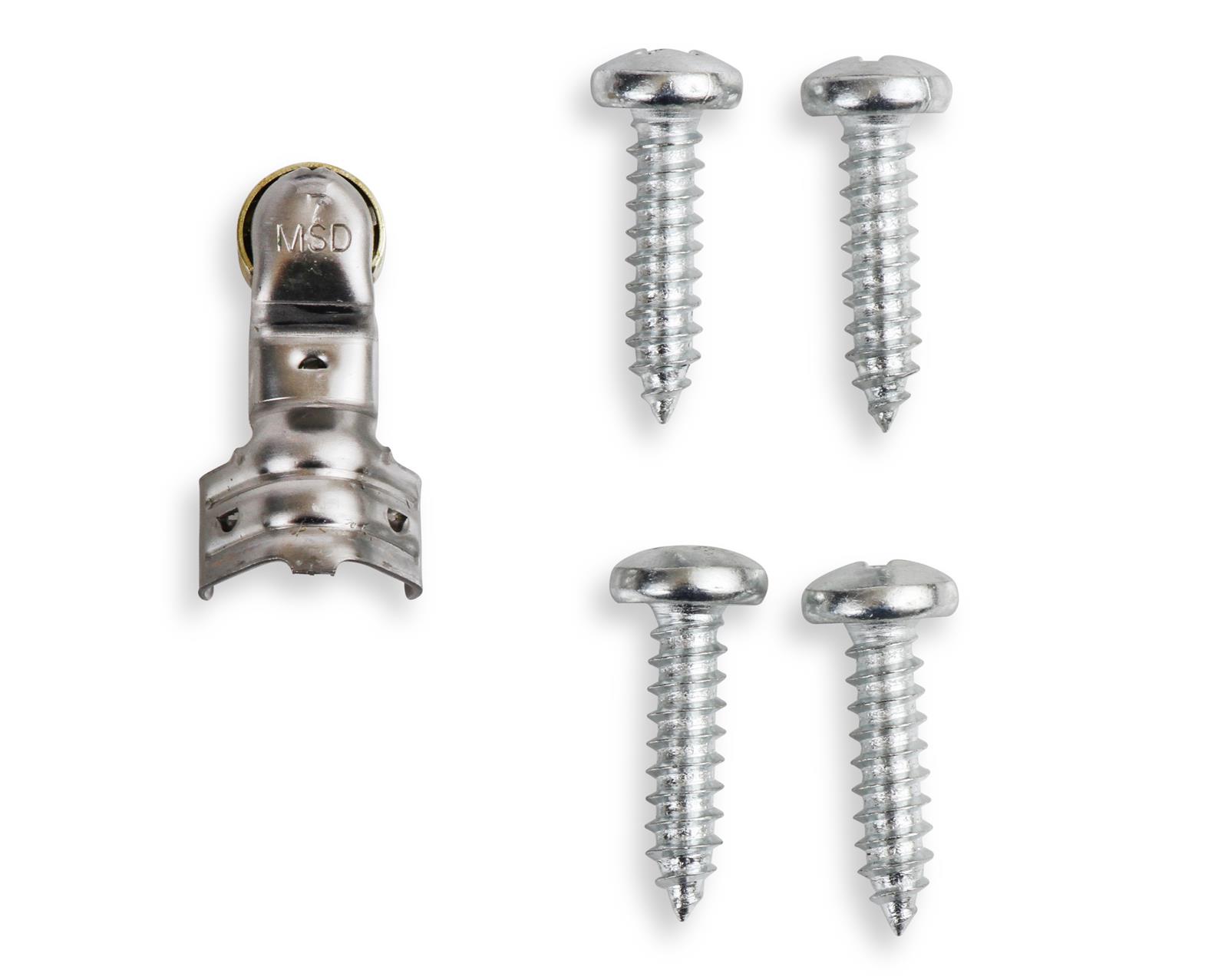

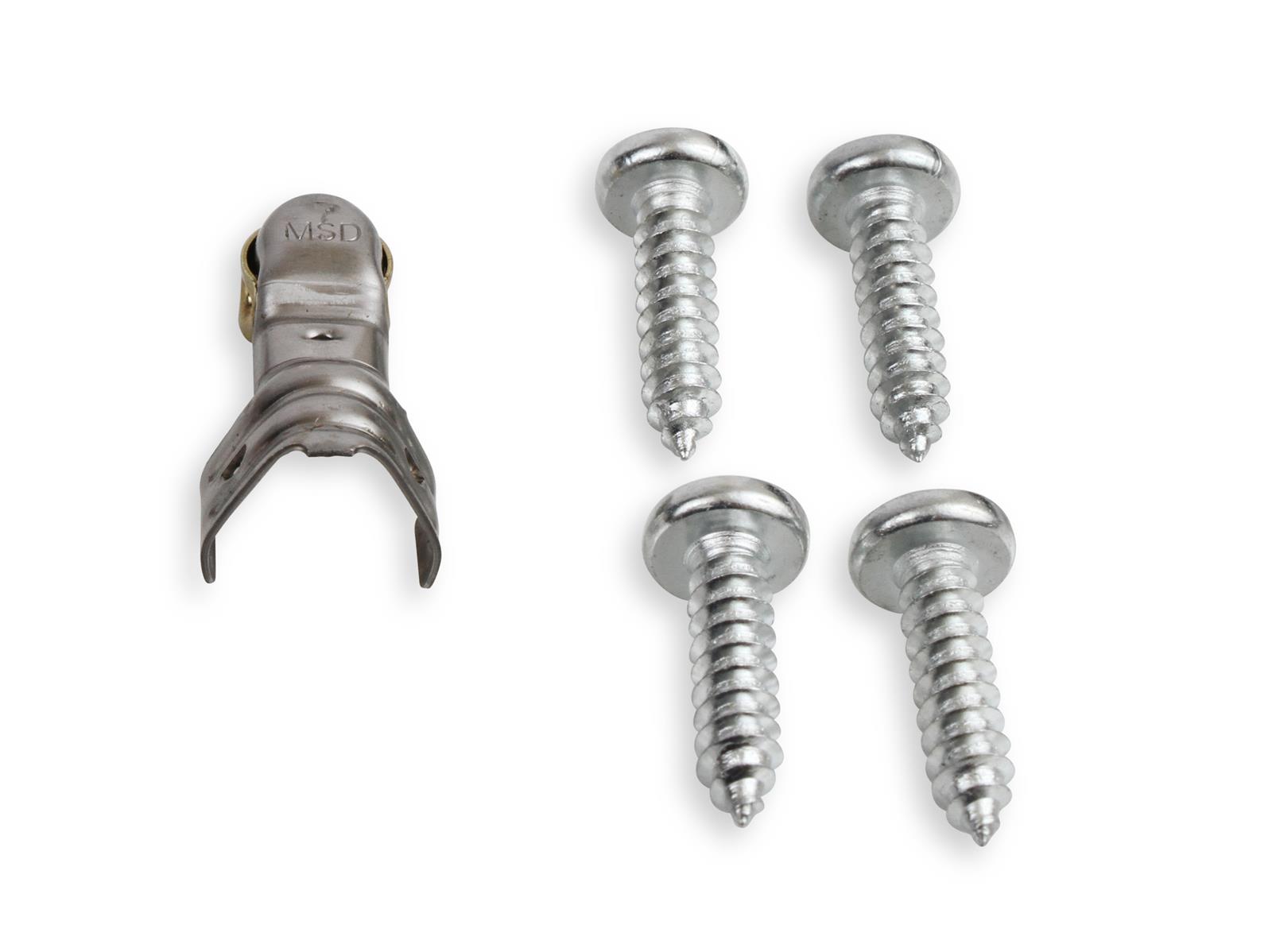

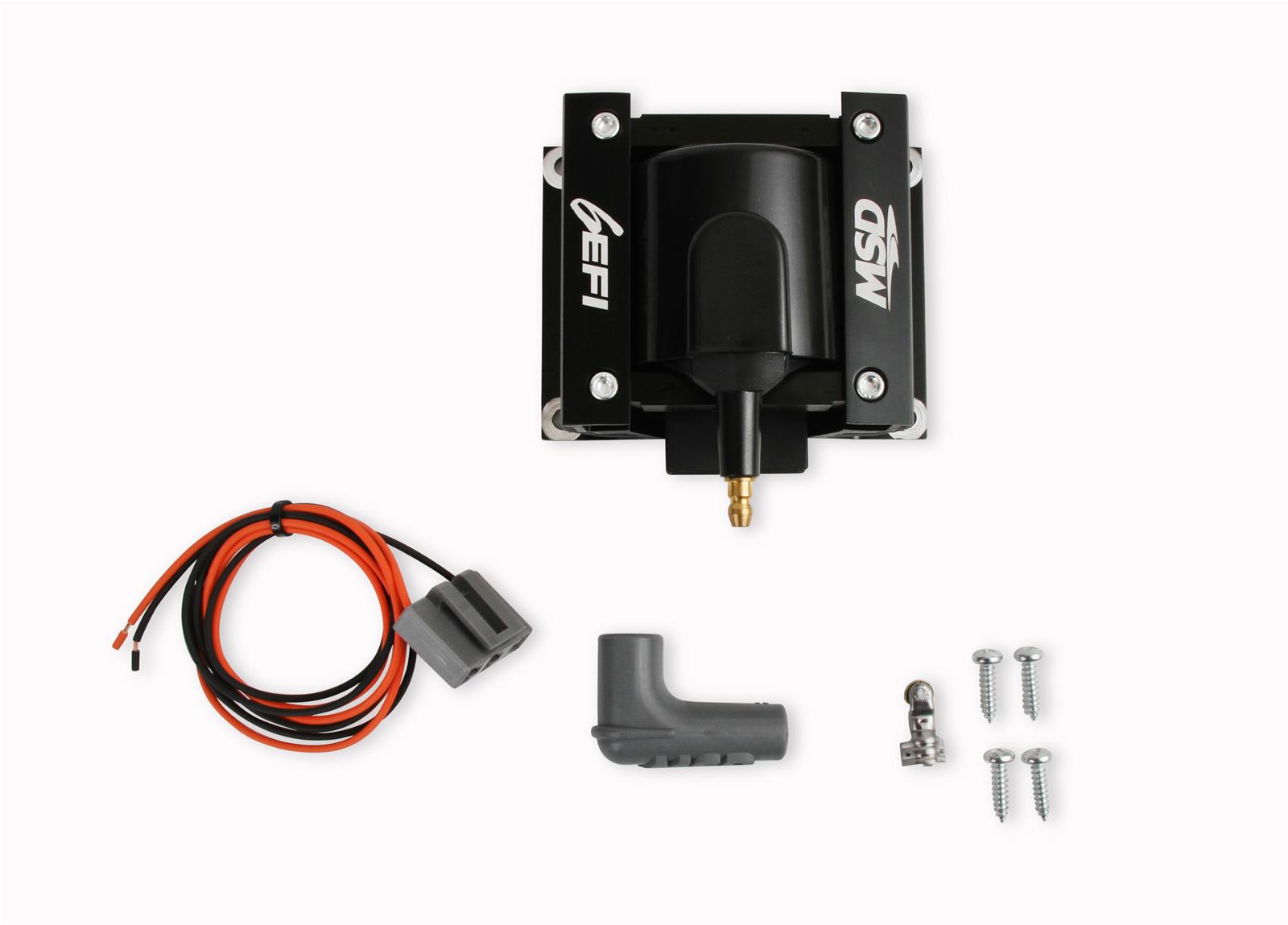

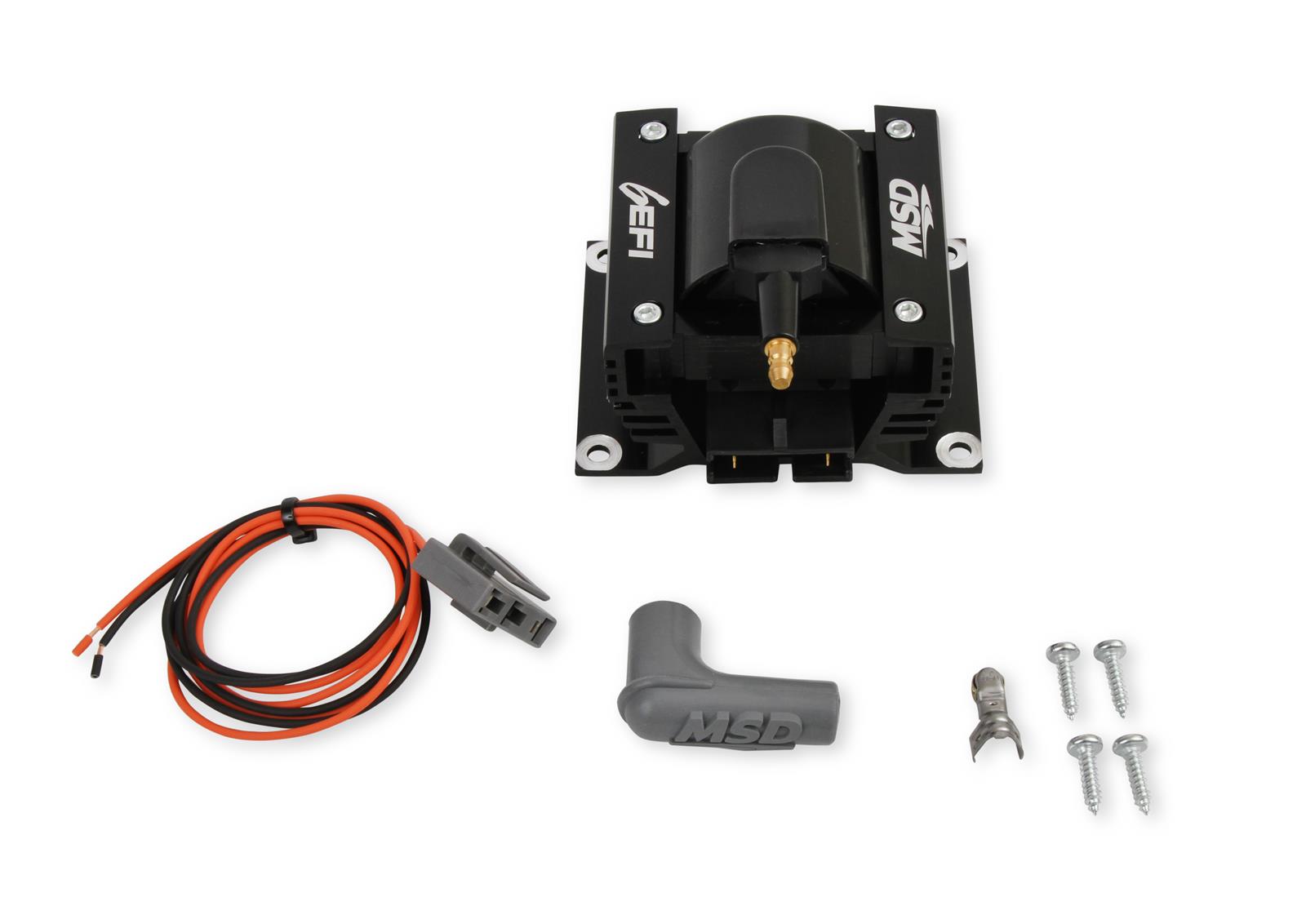

MSD 6EFI ignition coils produce high-spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on a black anodized aluminum mounting bracket, and is supplied with four, self-tapping mounting screws, plus a plug-in harness with color-coded wires to facilitate an easy installation. When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you! In addition, an MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female socket connection, to male high energy ignition (H.E.I.) connection if needed.
Part Type
Coil 6-EFI Ignition 1pk
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 86415
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- MSD 6EFI Ignition Coils
- Product Attributes - UPC
- 090127070383
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.430 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Black
- Product Attributes - Maximum Voltage
- 45,000 V
- Product Attributes - Turns Ratio
- 80:1
- Product Attributes - Secondary Resistance
- 4.60K ohms
- Product Attributes - Inductance
- 4.34 mH
- Product Attributes - Peak Current
- 300 mA
- Product Attributes - Spark Duration
- 300 uS
- Product Attributes - Mounting Bracket Included
- Yes
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed to be used with MSD 6EFI ignition box part number 6415.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd86415 |
| SFX Item ID | 4974488 |
| Supplier Item Code | 4974488 |
| Manufacturer SKU | 86415 |
| Manufacturer UPC | 90127070383 |
| Alternative References | 6EFI |
