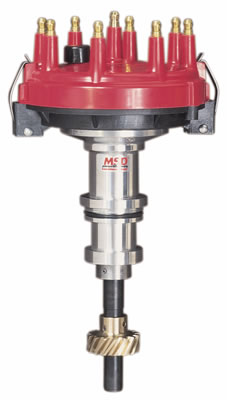

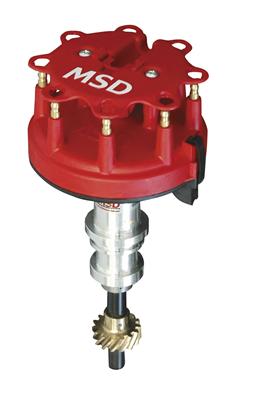

MSD Pro-Billet Crank Trigger Distributors 8569 Distributor, Pro-Billet, Trigger, No Advance, Ford, 351C, 351M, 400, 429, 460, Each
MSD Pro-Billet Crank Trigger Distributors 8569 Distributor, Pro-Billet, Trigger, No Advance, Ford, 351C, 351M, 400, 429, 460, Each
A$1,165.97
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

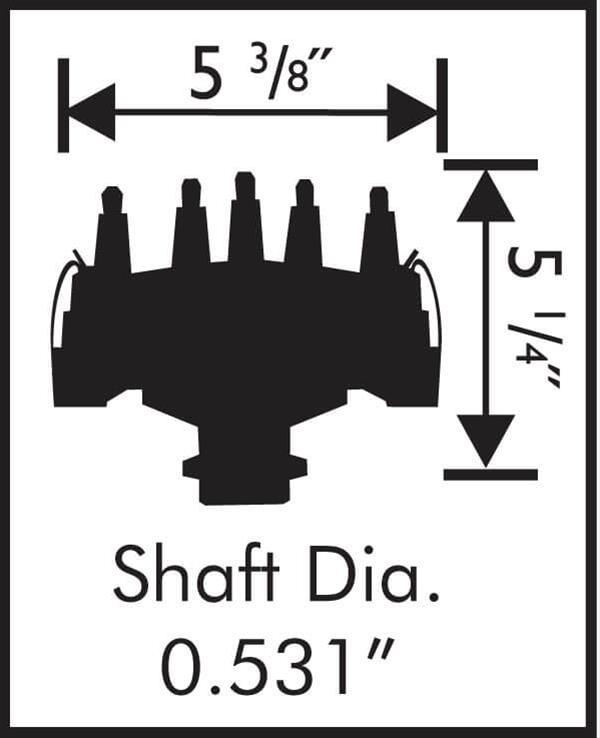

IMPORTANT NOTICE: Distributor is designed specifically for dual-carb sheet metal intakes and must be used with an MSD Flying Magnet crank trigger system. Distributor is 5.250 in. tall from engine to top of distributor cap.
MSD Pro-Billet crank distributors are built specifically for racing engines with almost no room for a distributor, due to tunnel rams or blowers. These units are equipped with a special low-profile crab-style distributor cap, allowing them to fit into extremely tight areas. The housing features two optional O-rings at the bottom that improves oil control by preventing oil pressure loss. Also, a small oil bleed hole (located in the base) sprays oil on the distributor and camshaft gears to prevent excessive wear.
Since these are racing distributors, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning the Pro-Billet crank distributor is MSD's own crab cap. This incorporates spark plug-style terminals for a better connection and grip to the plug wires. Order the model recommended for your vehicle and engine application.
Part Type
Ford Low Profile Dist
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8569
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- MSD Pro-Billet Crank Trigger Distributors
- Product Attributes - UPC
- 085132085699
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Large cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Crank trigger
- Product Attributes - Advance Type
- Locked
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Distributor Gear Material
- Bronze
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Distributor is designed specifically for dual-carb sheet metal intakes and must be used with an MSD Flying Magnet crank trigger system. Distributor is 5.250 in. tall from engine to top of distributor cap.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8569 |
| SFX Item ID | 4973967 |
| Supplier Item Code | 4973967 |
| Manufacturer SKU | 8569 |
| Manufacturer UPC | 85132085699 |
| Alternative References | 351C, 351M |
