Msd Ignition

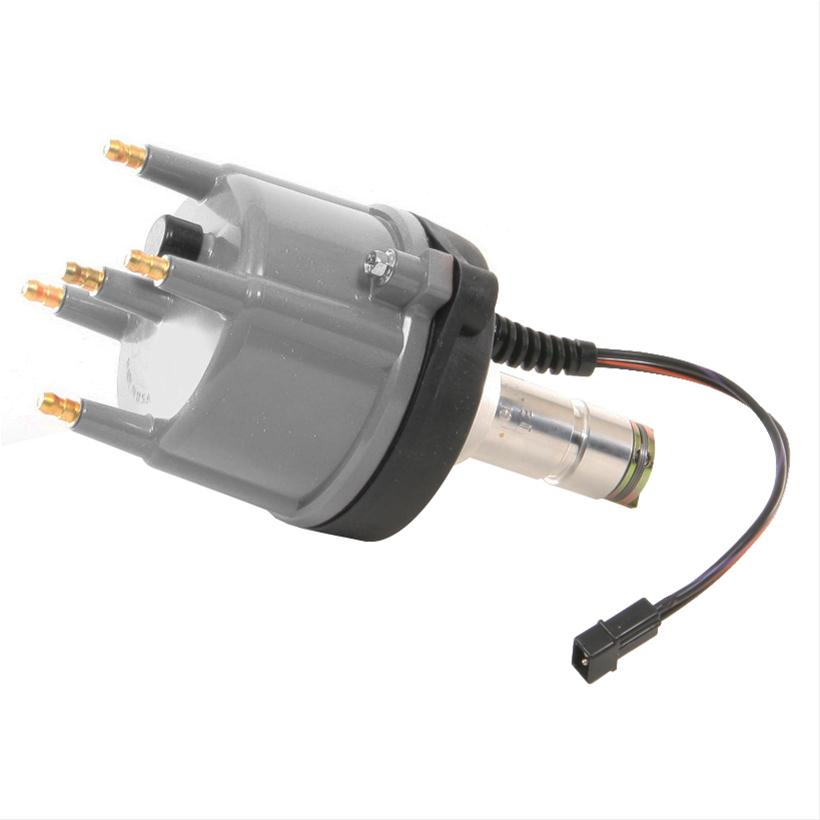

MSD Pro-Billet Distributors 8485 Distributor, Pro-Billet, Magnetic Trigger, Mechanical, Volkswagen, H4, Each

SKU: MSD8485

Distributors
MSD Pro-Billet Distributors 8485 Distributor, Pro-Billet, Magnetic Trigger, Mechanical, Volkswagen, H4, Each

Msd Ignition

MSD Pro-Billet Distributors 8485 Distributor, Pro-Billet, Magnetic Trigger, Mechanical, Volkswagen, H4, Each

SKU: MSD8485

Distributors
A$1,094.65
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart 0
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that's machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range.

For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.

Part Type

VW Billet Distributor

Data: v4.2 - Upd: 2026-10-15 03:12:59

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
8485
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Distributors
Product Attributes - UPC
085132084852
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Small cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
No
Product Attributes - Trigger Style
Magnetic
Product Attributes - Advance Type
Mechanical
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
No
Product Attributes - Distributor Gear Material
Iron
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Distributor is 6.3125 in. tall from engine to top of distributor cap.

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd8485
SFX Item ID 4973649
Supplier Item Code 4973649
Manufacturer SKU 8485
Manufacturer UPC 85132084852
Alternative References H4

Compatibility

Application Data
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1954
    Ending Year1964
    Engine TypeH4
    Engine Size1.2L/1192cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1965
    Ending Year1966
    Engine TypeH4
    Engine Size1.2L/1192cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1966
    Ending Year1966
    Engine TypeH4
    Engine Size1.3L/1285cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1967
    Ending Year1969
    Engine TypeH4
    Engine Size1.5L/1457cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1970
    Ending Year1970
    Engine TypeH4
    Engine Size1.6L/1584cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1971
    Ending Year1973
    Engine TypeH4
    Engine Size1.6L/1584cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1972
    Ending Year1974
    Engine TypeH4
    Engine Size1.6L/1584cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1973
    Ending Year1974
    Engine TypeH4
    Engine Size1.6L/1584cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
  • MakeVOLKSWAGEN
    ModelBEETLE
    Beginning Year1975
    Ending Year1979
    Engine TypeH4
    Engine Size1.6L/1584cc
    Engine FamilyVolkswagen aircooled 4-cylinder
    Application NotesDesigned for Type I air cooled applications.
