Msd Ignition
MSD Pro-Billet Distributors 8589 Distributor, Pro-Billet, Magnetic Trigger, Mechanical Advance, Holden, Each
msd8589
A$1,795.60

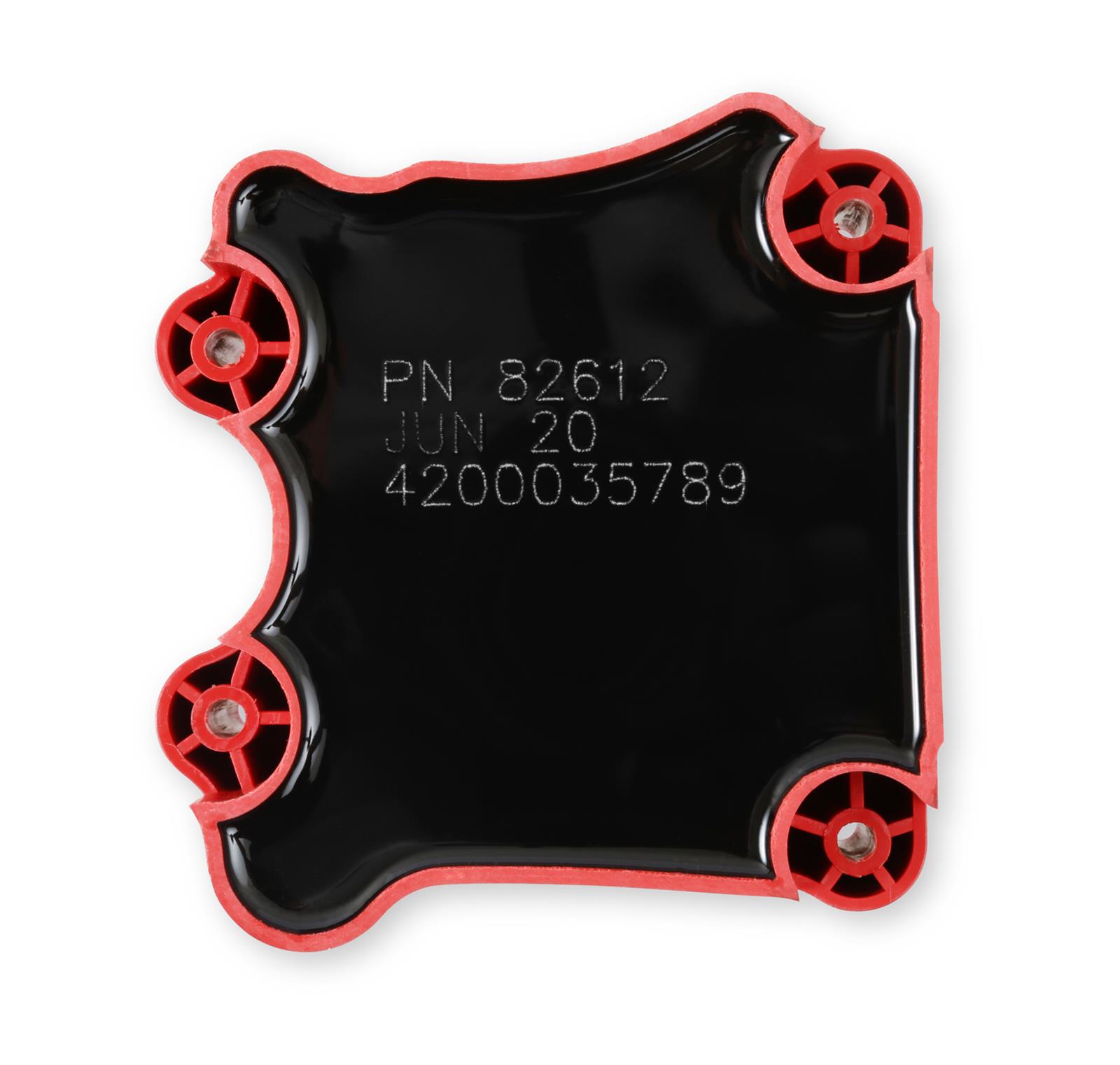

MSD HVC-3 Coils 82612 Ignition Coil, HVC-III W/CS, Red, Each
MSD HVC-3 Coils 82612 Ignition Coil, HVC-III W/CS, Red, Each
A$841.92
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD HVC III coils utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material, which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting-edge winding material that has improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning-quick rise time, and longer spark duration. The MSD HVC-3 coils are equipped with an industry-first third terminal to allow secondary current sensing, for each spark, when used in conjunction with the MSD 8001 Pro 600 Single Channel ignition.
Product details:
* Designed for racing applications with an MSD 7 or 8 Series ignition control or Pro 600 single channel
* New U-Core winding design produces more voltage and current
* 70:1 turns ratio and lower primary resistant compound for vibration resistance
* Windings are encased in fracture resistant compound for vibration resistance
* Dupont Rynite housing with isolated tower and brass primary terminals
* Supplied with mounting hardware and rubber shock mounts
* Built-in current sensing (when used in conjunction with MSD Pro 600 single channel)
Part Type
HVC III Ignition Coil Red
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 82612
- Product Attributes - Part Type
- Ignition Coils
- Product Attributes - Product Line
- MSD HVC-3 Coils
- Product Attributes - UPC
- 090127100660
- Product Attributes - Coil Style
- Remote mount
- Product Attributes - Primary Resistance
- 0.016 ohms
- Product Attributes - Coil Internal Construction
- Epoxy
- Product Attributes - Coil Wire Attachment
- Male/HEI
- Product Attributes - Coil Color
- Red
- Product Attributes - Maximum Voltage
- 45,000 V
- Product Attributes - Turns Ratio
- 70:1
- Product Attributes - Secondary Resistance
- 30.00K ohms
- Product Attributes - Inductance
- 0.25 mH
- Product Attributes - Peak Current
- 2 amps
- Product Attributes - Spark Duration
- 150 uS
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Ballast Resistor Included
- No
- Product Attributes - Coil Shape
- Square
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Designed for use with the MSD Power Grid 600 single channel ignitions, MSD 7 series or 8 series ignitions only.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd82612 |
| SFX Item ID | 4974357 |
| Supplier Item Code | 4974357 |
| Manufacturer SKU | 82612 |
| Manufacturer UPC | 90127100660 |
| Alternative References | HVC-3 |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
