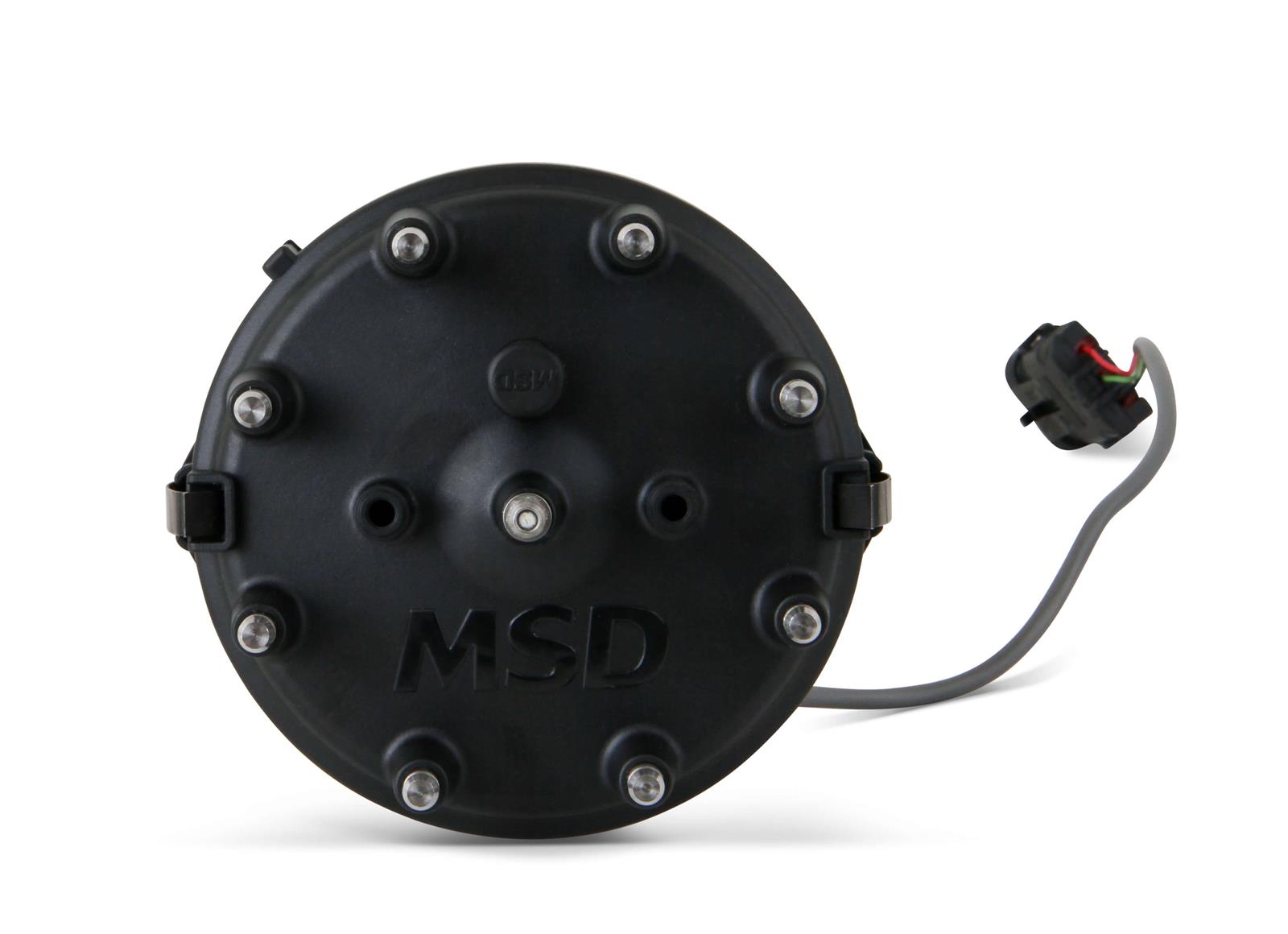

MSD Pro-Billet Cam Sync Crank Trigger Distributors 23401MSD Distributor, Trigger, Trigger, Adjustable Sync, Chevy, Big/Small Block, Each

SKU: MSD23401MSD

Distributors
MSD Pro-Billet Cam Sync Crank Trigger Distributors 23401MSD Distributor, Trigger, Trigger, Adjustable Sync, Chevy, Big/Small Block, Each

Msd Ignition

MSD Pro-Billet Cam Sync Crank Trigger Distributors 23401MSD Distributor, Trigger, Trigger, Adjustable Sync, Chevy, Big/Small Block, Each

SKU: MSD23401MSD

Distributors

Sale ends in Calculating...

A$1,851.88 A$1,893.46
BACKORDER This item will be special ordered in for you. Contact us prior to purchase if you require an ETA.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

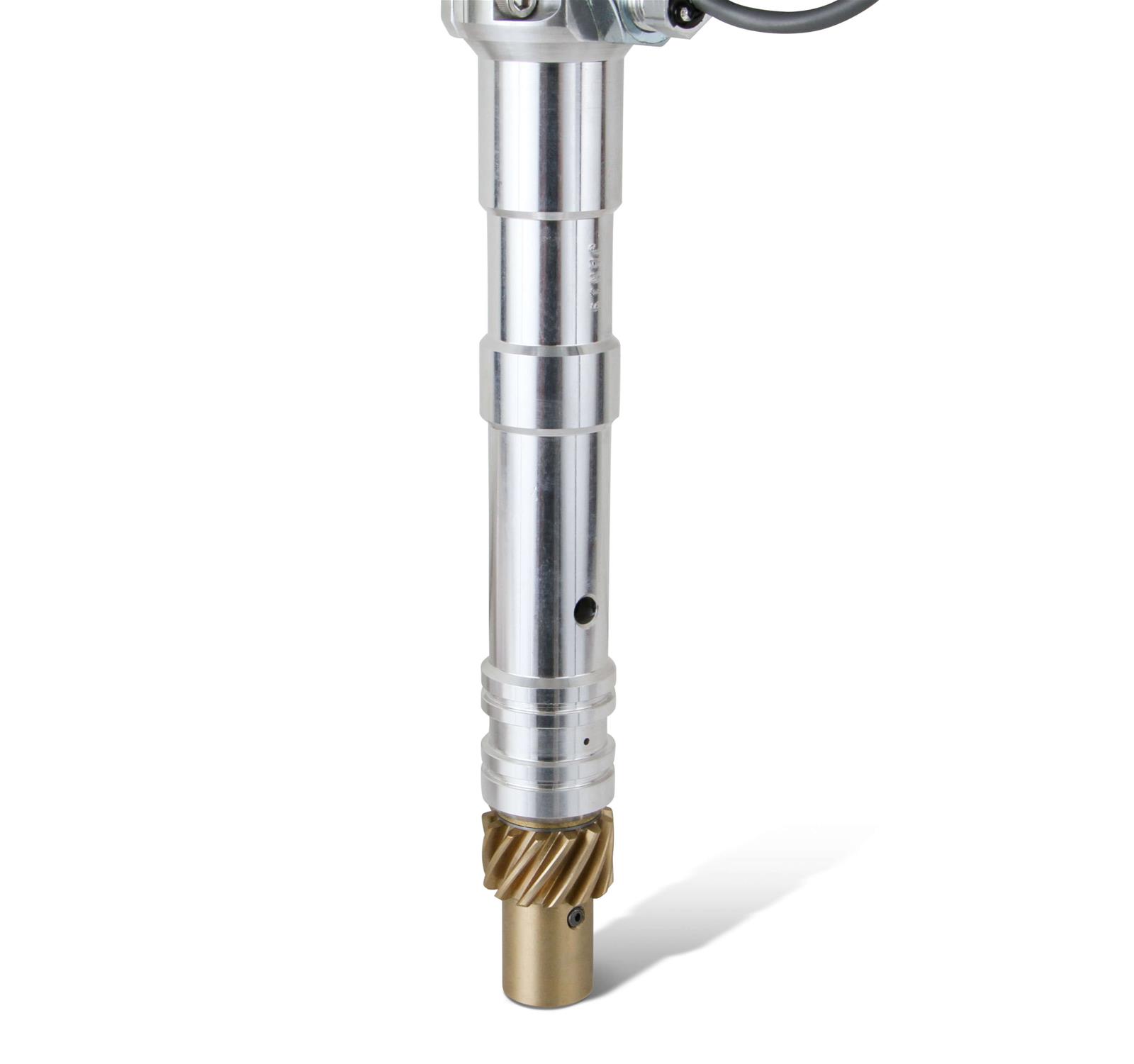

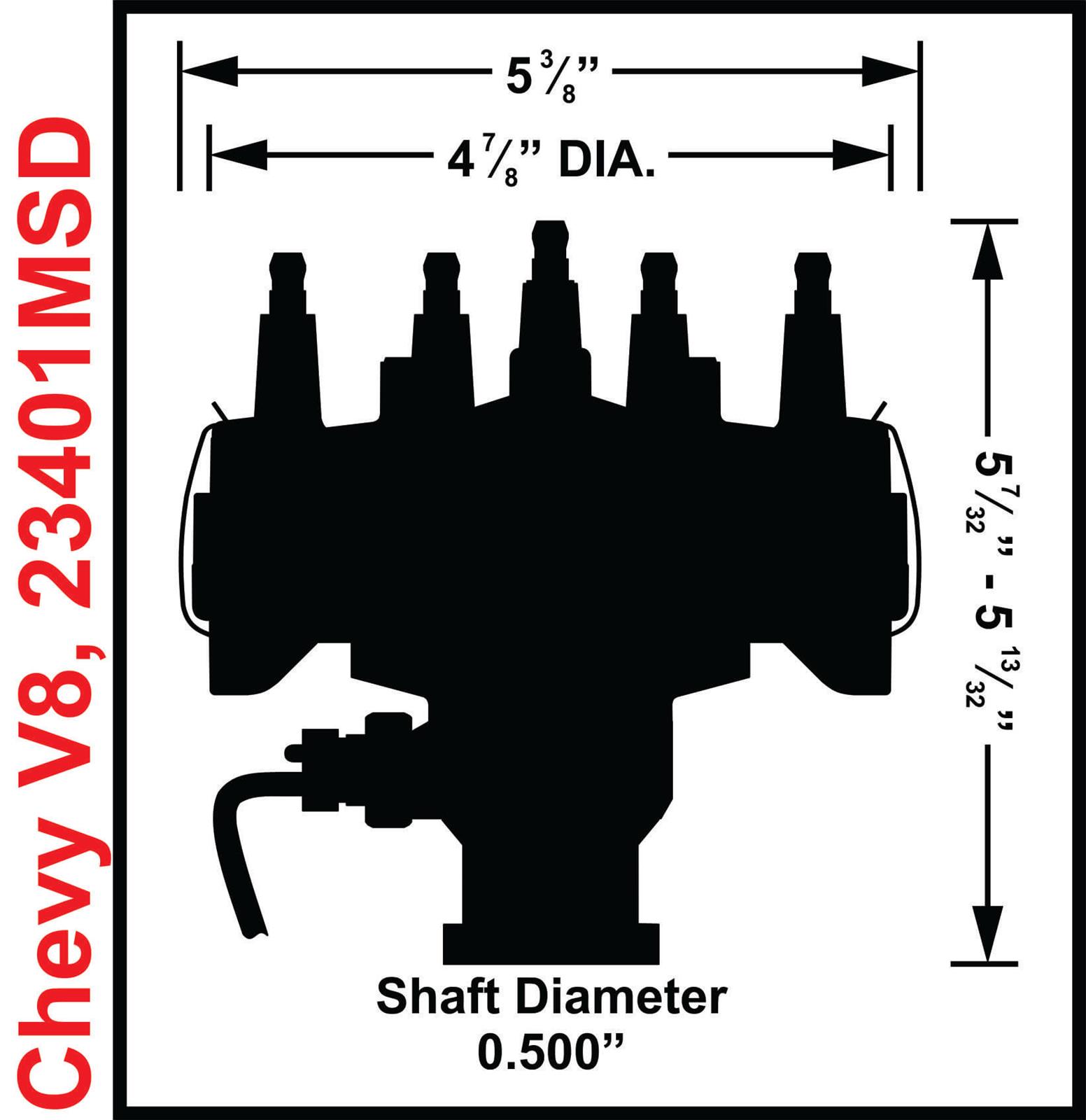

Are you running an aftermarket fuel injection system and looking for a top-notch distributor that actually works? If so, these Pro-Billet Cam Sync Crank Trigger distributors from MSD are just what you need. They're designed to work with EFI management systems that fire the fuel injectors in the same order as the engine's firing order. These systems require a sync signal to know when the number one cylinder is firing. The sync pickup of these distributors is fixed at 45 degrees BTDC on the number one cylinder, and this signal will reliably alert your ECU as to when the number one cylinder is preparing to fire. The distributors are available in a low-profile or small diameter models to help fit where space is tight. Each distributor housing is CNC-machined from billet 6061-T6 aluminum, creating a strong, precise housing. The rotor features thick vanes to stir up the air and is injection-molded from Rynite for high dielectric strength. The base of the low-profile model is also molded out of Rynite and is bolted to the billet aluminum housing. A 0.500 in. polished steel shaft spins the rotor, and is guided by a sealed ball bearing at the top and an extra-long sintered bushing at the bottom for added stability. These distributors are ready to drop in your race engine, from the bronze gear to the brass terminals of the cap. Chevrolet models have an adjustable slip collar that allows you to accurately set the distributor's installation depth in the engine. An MSD crank trigger, ignition control, and MSD 6, 7, 8, or 10 Series ignition must be used.

Part Type

Distributors

Data: v4.2 - Upd: 2026-10-14 20:10:55

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
23401MSD
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Cam Sync Crank Trigger Distributors
Product Attributes - UPC
085132234011
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Large cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
Yes
Product Attributes - Trigger Style
Crank trigger
Product Attributes - Advance Type
Computer-controlled
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
Yes
Product Attributes - Distributor Gear Material
Bronze
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Distributor Cap Color
Black
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd23401MSD
SFX Item ID 4974416
Supplier Item Code 4974416
Manufacturer SKU 23401MSD
Manufacturer UPC 85132234011

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1962
    Ending Year1969
    Engine TypeV8
    Engine Size5.3L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1964
    Ending Year1967
    Engine TypeV8
    Engine Size5.4L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1965
    Ending Year1970
    Engine TypeV8
    Engine Size6.5L/396
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1966
    Ending Year1969
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year1969
    Engine TypeV8
    Engine Size4.9L/302
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year2002
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1968
    Ending Year1973
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1972
    Engine TypeV8
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1980
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1990
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1975
    Ending Year1976
    Engine TypeV8
    Engine Size4.3L/262
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1976
    Ending Year2002
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1979
    Ending Year1982
    Engine TypeV8
    Engine Size4.4L/267
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1991
    Ending Year1995
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Gen V
  • MakeCHEVROLET
    Beginning Year1996
    Ending Year2000
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Gen VI
