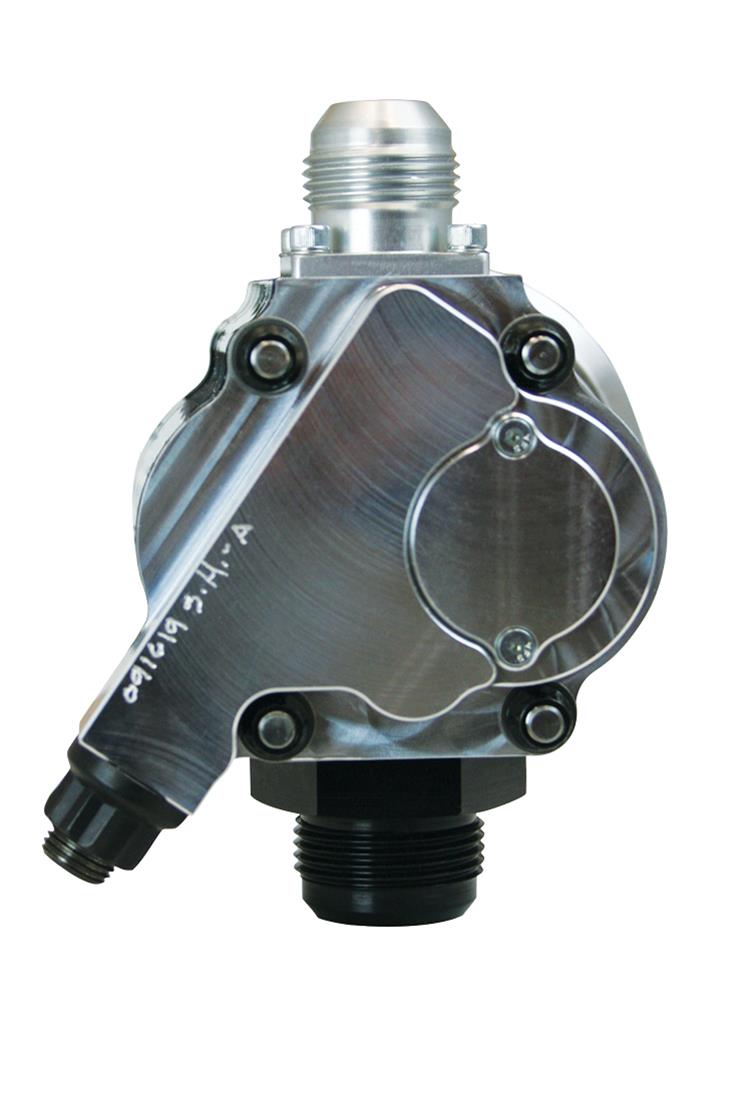

Moroso T3 Series Alston Single Stage External Oil Pump - Tri-Lobe - V-Band Clamp - 1.800 Pressure
Moroso T3 Series Alston Single Stage External Oil Pump - Tri-Lobe - V-Band Clamp - 1.800 Pressure
A$2,892.02
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Moroso aluminum Tri-Lobe dry sump oil pumps have been developed with their decades of oiling system expertise to provide you with a lighter, better performing design that will save weight and make more crankcase vacuum. They feature Tri-lobe aluminum scavenge sections with individual timing gears to ensure proper clearance at the highest rpm. The pumps use a spur gear pressure section based on Moroso's highly successful billet wet sump pump design, and variable spring rates optimize your oil pressure for smooth, reliable oil pressure readings. Moroso Tri-Lobe dry sump oil pumps have multiple -12, or -16 AN scavenge outlet options, weigh about half as much as gerotor pumps, and take up to 40 percent less power to drive.
Product Overview
Moroso T3 Series Alston Single Stage External Oil Pump - Tri-Lobe - V-Band Clamp - 1.800 Pressure
Product Details
| Description: | Moroso T3 Series Alston Single Stage External Oil Pump - Tri-Lobe - V-Band Clamp - 1.800 Pressure |
|---|---|
| Part Number: | mor22413 |
Part Type
Oil Pumps
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 22413
- Product Attributes - Part Type
- Oil Pumps
- Product Attributes - Product Line
- Moroso Tri-Lobe Dry Sump Oil Pumps
- Product Attributes - UPC
- 084663224133
- Product Attributes - Oil Pump Style
- External
- Product Attributes - High-Pressure Oil Pump Spring Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Hardened Driveshaft Recommended
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - External Oil Pump Stage Quantity
- One
- Product Attributes - External Oil Pump Pressure Section
- 1.800 in.
- Product Attributes - External Oil Pump Pulley Included
- No
- Product Attributes - External Oil Pump Belt Included
- No
- Product Attributes - External Oil Pump Mounting Brackets Included
- Yes
- Product Attributes - External Oil Pump Rotation
- Clockwise
- Product Attributes - Hardware Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- V-band Alston front drive mount. 1.800 in. pressure section.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor22413 |
| SFX Item ID | 4103601 |
| Supplier Item Code | 4103601 |
| Manufacturer SKU | 22413 |
| Manufacturer UPC | 84663224133 |
Compatibility
