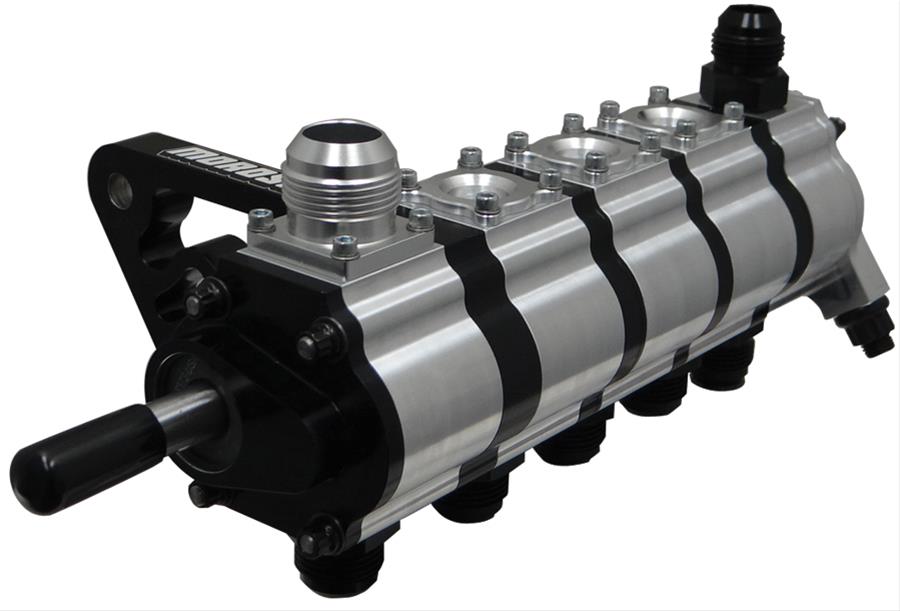

Moroso T3 Series 5 Stage Dry Sump Oil Pump - Tri-Lobe - Left Side - .900 Pressure
Moroso T3 Series 5 Stage Dry Sump Oil Pump - Tri-Lobe - Left Side - .900 Pressure
Sale ends in Calculating...
A$5,330.96 A$5,575.49
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Moroso aluminum Tri-Lobe dry sump oil pumps have been developed with their decades of oiling system expertise to provide you with a lighter, better performing design that will save weight and make more crankcase vacuum. They feature Tri-lobe aluminum scavenge sections with individual timing gears to ensure proper clearance at the highest rpm. The pumps use a spur gear pressure section based on Moroso's highly successful billet wet sump pump design, and variable spring rates optimize your oil pressure for smooth, reliable oil pressure readings. Moroso Tri-Lobe dry sump oil pumps have multiple -12, or -16 AN scavenge outlet options, weigh about half as much as gerotor pumps, and take up to 40 percent less power to drive.
Product Overview
Moroso T3 Series 5 Stage Dry Sump Oil Pump - Tri-Lobe - Left Side - .900 Pressure
Product Details
| Description: | Moroso T3 Series 5 Stage Dry Sump Oil Pump - Tri-Lobe - Left Side - .900 Pressure |
|---|---|
| Part Number: | mor22335 |
Part Type
DS Oil Pump Tri-Lobe 5-Stage LHS Mount
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 22335
- Product Attributes - Part Type
- Oil Pumps
- Product Attributes - Product Line
- Moroso Tri-Lobe Dry Sump Oil Pumps
- Product Attributes - UPC
- 084663223358
- Product Attributes - Oil Pump Style
- Dry sump
- Product Attributes - High-Pressure Oil Pump Spring Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Hardened Driveshaft Recommended
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - External Oil Pump Stage Quantity
- Five
- Product Attributes - External Oil Pump Pressure Section
- 0.900 in.
- Product Attributes - Pressure Section Inlet Size
- -12 AN
- Product Attributes - Pressure Section Outlet Size
- -12 AN
- Product Attributes - External Oil Pump Scavenge Section
- 1.700 in.
- Product Attributes - Scavenge Section Inlet Size
- -12 AN
- Product Attributes - Scavenge Section Outlet Size
- -16 AN
- Product Attributes - External Oil Pump Pulley Included
- No
- Product Attributes - External Oil Pump Belt Included
- No
- Product Attributes - External Oil Pump Mounting Brackets Included
- Yes
- Product Attributes - External Oil Pump Rotation
- Clockwise
- Product Attributes - Hardware Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Left side door car bracket included. 1.200 in. pressure section, 1.700 in. scavenge section.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor22335 |
| SFX Item ID | 4103583 |
| Supplier Item Code | 4103583 |
| Manufacturer SKU | 22335 |
| Manufacturer UPC | 84663223358 |
