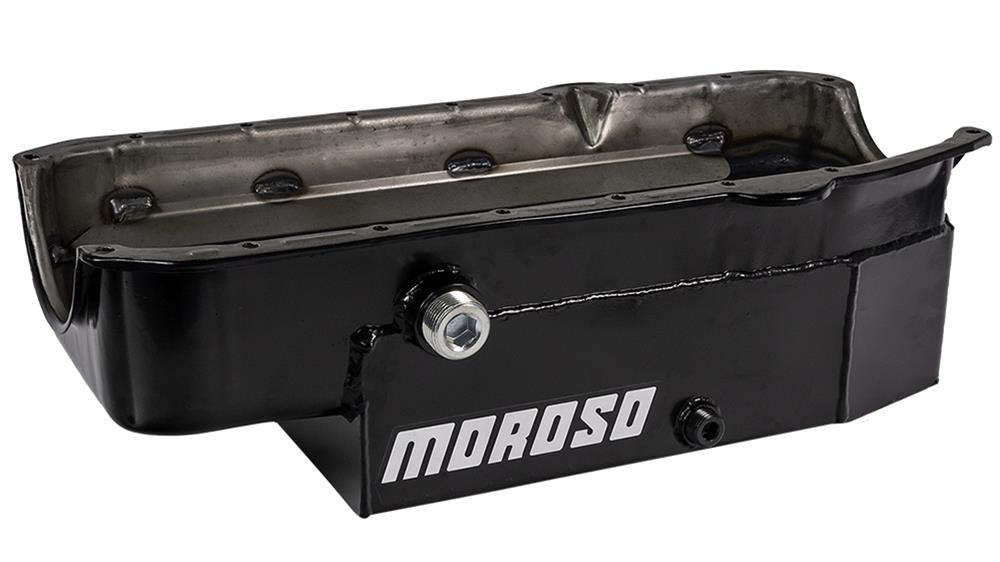

Moroso 80-85 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 8qt 6.5in Steel Oil Pan
Moroso 80-85 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 8qt 6.5in Steel Oil Pan
A$1,009.51
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Moroso circle track oil pans pans are manufactured in wet and dry sump configurations and include various levels of horsepower gain, ranging from Hobby Stock to NASCAR Winston Cup. They are available in a selection of quality materials and are a great economical choice for your performance engine.
Product Overview
Moroso 80-85 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 8qt 6.5in Steel Oil Pan
Product Details
| Description: | Moroso 80-85 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 8qt 6.5in Steel Oil Pan |
|---|---|
| Part Number: | mor21326 |
Part Type
SBC 8qt CT Oil Pan - RH Dipstick 80-85
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21326
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Circle Track Oil Pans
- Product Attributes - UPC
- 084663213267
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Circle Track
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 8.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.125 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No

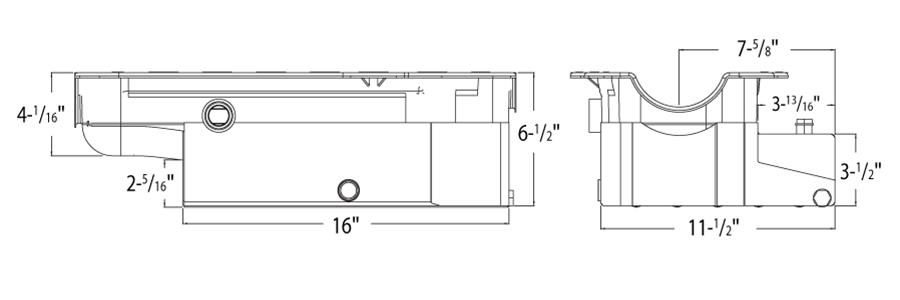

- Product Attributes - Oil Pan Depth (in.)
- 6.500
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Passenger side
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits Dart SHP blocks in limited sprints and other low ground clearance chassis without cross members. For use with four bolt Dart GM and Merlin main caps. 1/2 in. NPT oil temperature bung. Features 1 in. inspection bung to meet 2011-up IMCA rules.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21326 |
| SFX Item ID | 4103500 |
| Supplier Item Code | 4103500 |
| Manufacturer SKU | 21326 |
| Manufacturer UPC | 84663213267 |
| Alternative References | (w/1in, 8qt, 6.5in |
