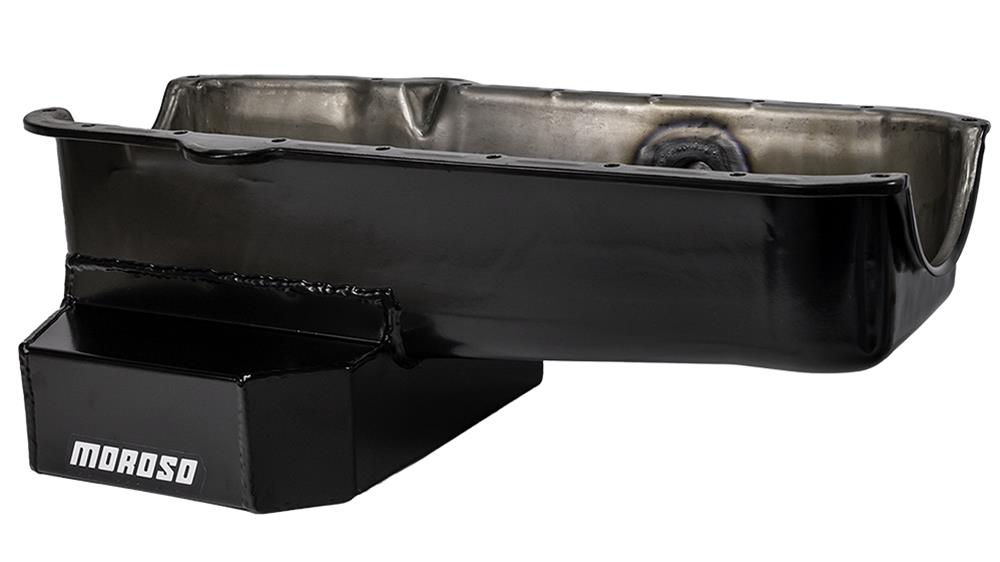

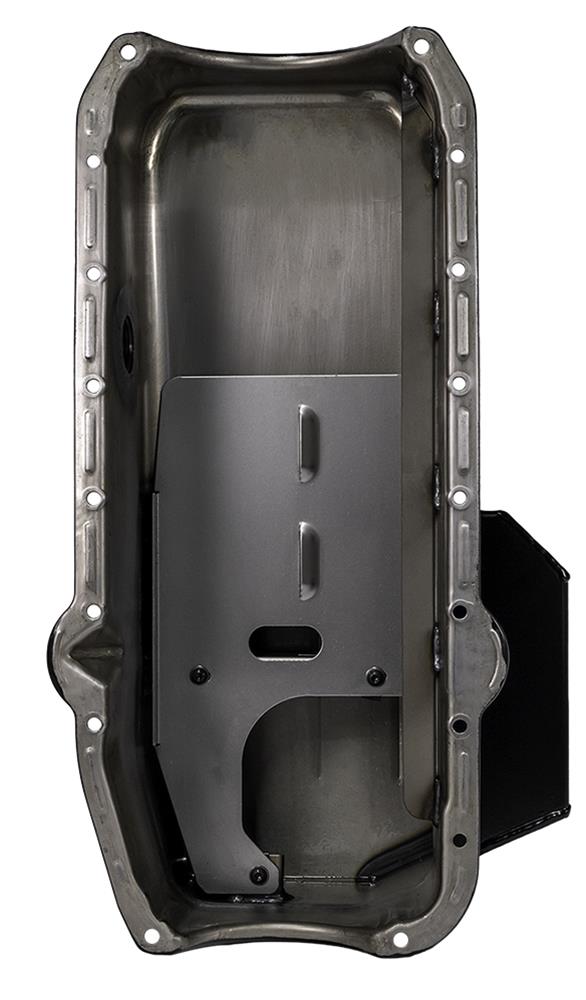

Moroso Pre-80 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 7qt 7.5in Steel Oil Pan
Moroso Pre-80 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 7qt 7.5in Steel Oil Pan
A$581.19
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
IMPORTANT NOTICE: Pan will work in any GM 1978-87 Metric chassis and aftermarket chassis with Camaro front clips. Will not fit engine blocks with splayed main caps. This pan has a bolt hole omitted near oil filter due to increased stroke clearance. Best sealing results are achieved when using a one piece rubber gasket.
Moroso circle track oil pans pans are manufactured in wet and dry sump configurations and include various levels of horsepower gain, ranging from Hobby Stock to NASCAR Winston Cup. They are available in a selection of quality materials and are a great economical choice for your performance engine.
Product Overview
Moroso Pre-80 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 7qt 7.5in Steel Oil Pan
Product Details
| Description: | Moroso Pre-80 Chevrolet Small Block (w/1in Inspection Bung) Wet Sump 7qt 7.5in Steel Oil Pan |
|---|---|
| Part Number: | mor21322 |
Part Type
SBC C/T Oil Pan - 7qt. LH Dipstick w/Ins. Bung
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21322
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Circle Track Oil Pans
- Product Attributes - UPC
- 084663213229
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Circle Track
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.125 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 7.500
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Passenger side
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- Yes
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Pan will work in any GM 1978-87 Metric chassis and aftermarket chassis with Camaro front clips. Will not fit engine blocks with splayed main caps. This pan has a bolt hole omitted near oil filter due to increased stroke clearance. Best sealing results are achieved when using a one piece rubber gasket.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21322 |
| SFX Item ID | 4103496 |
| Supplier Item Code | 4103496 |
| Manufacturer SKU | 21322 |
| Manufacturer UPC | 84663213229 |
| Alternative References | Pre-80, (w/1in, 7qt, 7.5in |
