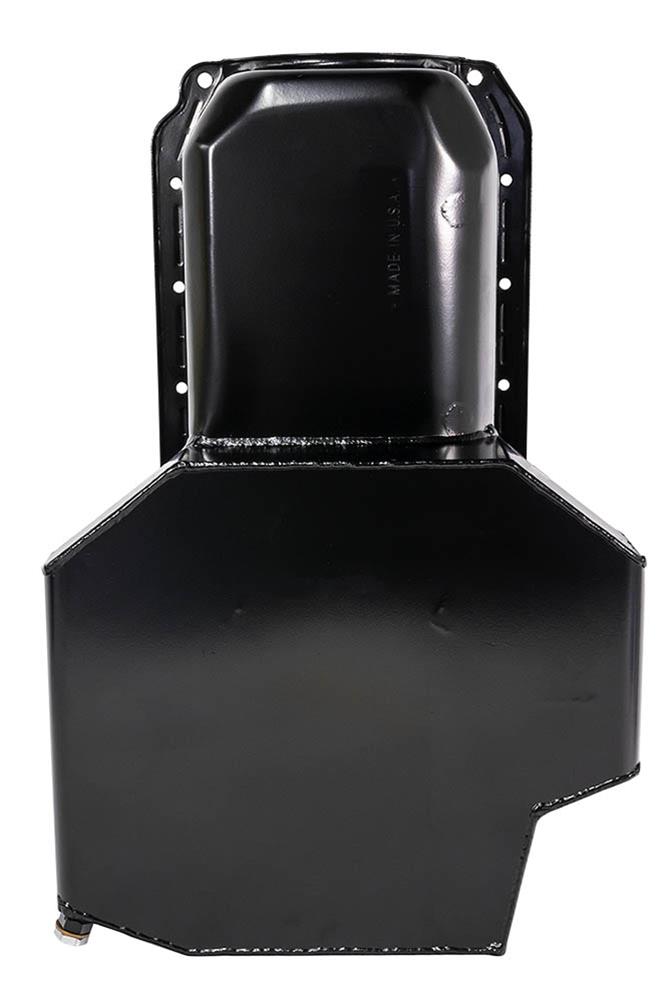

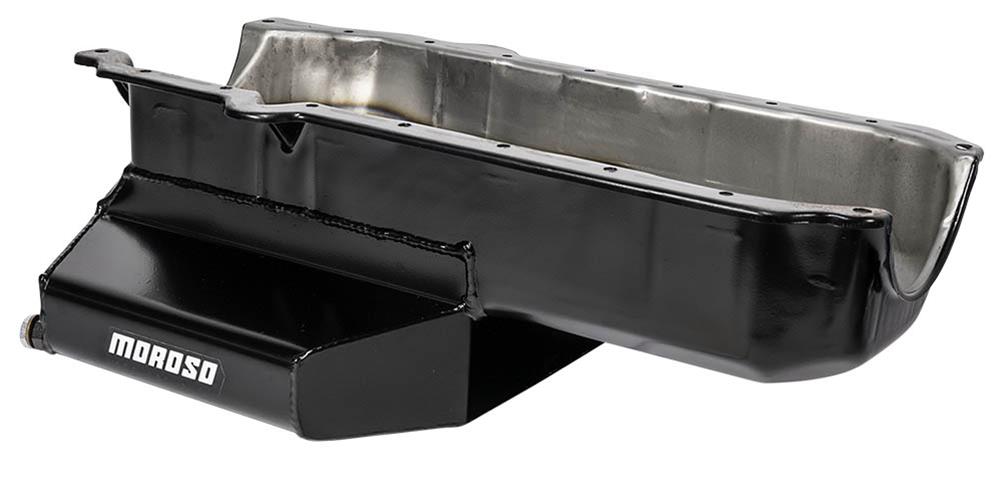

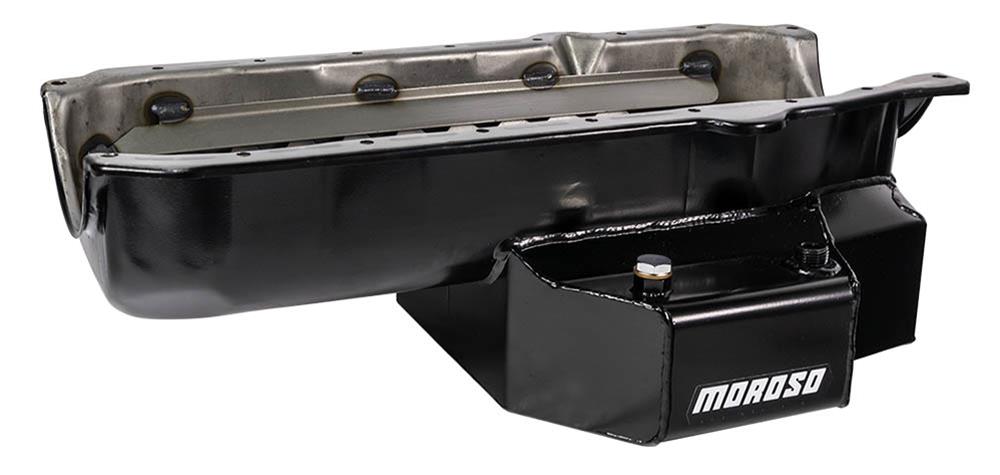

Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 7qt 7-1/8in Steel Oil Pan
Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 7qt 7-1/8in Steel Oil Pan
A$1,177.52
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description

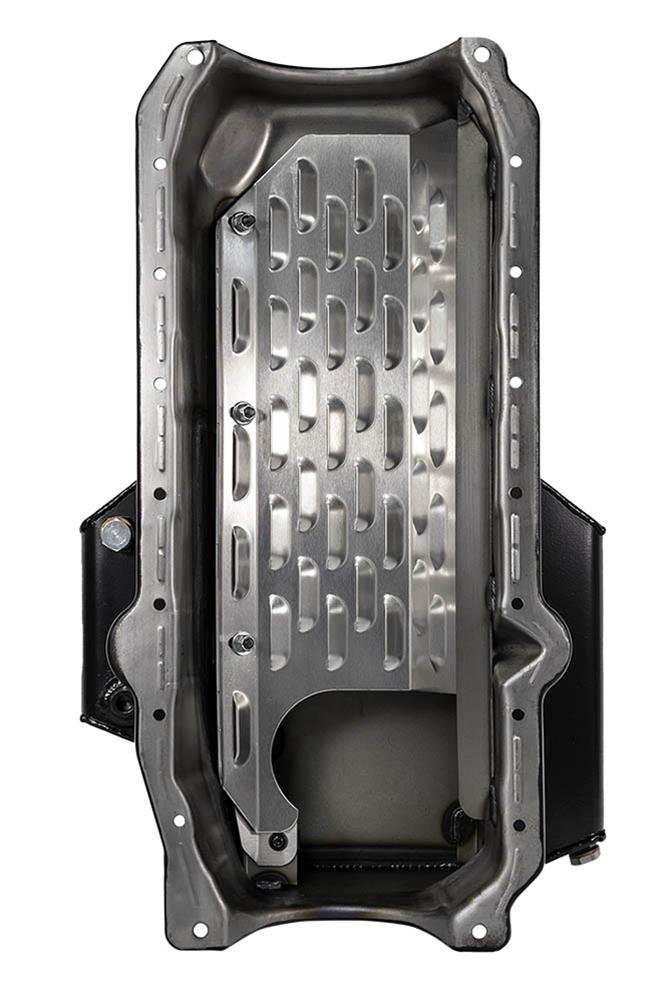

Moroso wet sump SC series Oval Track pans have many features usually found only on high-dollar custom pans. These include kickouts for increased power, internal baffling to keep oil in the pickup area, crankshaft scrapers to remove excess oil from the crank, and windage screens or trays to direct oil to the sump. All of these features combine to make a pan that's perfect for all Oval Track racing classes.
Product Overview
Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 7qt 7-1/8in Steel Oil Pan
Product Details
| Description: | Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 7qt 7-1/8in Steel Oil Pan |
|---|---|
| Part Number: | mor21319 |
Part Type
SBC Stage 1 Oil Pan
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21319
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Wet Sump Oval Track Pans
- Product Attributes - UPC
- 084663213199
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Circle Track
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 3.800 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 7.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21319 |
| SFX Item ID | 4103494 |
| Supplier Item Code | 4103494 |
| Manufacturer SKU | 21319 |
| Manufacturer UPC | 84663213199 |
| Alternative References | 86-Up, (w/1, 7qt, 7-1/8in |
