Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 6qt 6.5in Steel Oil Pan
Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 6qt 6.5in Steel Oil Pan
A$1,300.29
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description

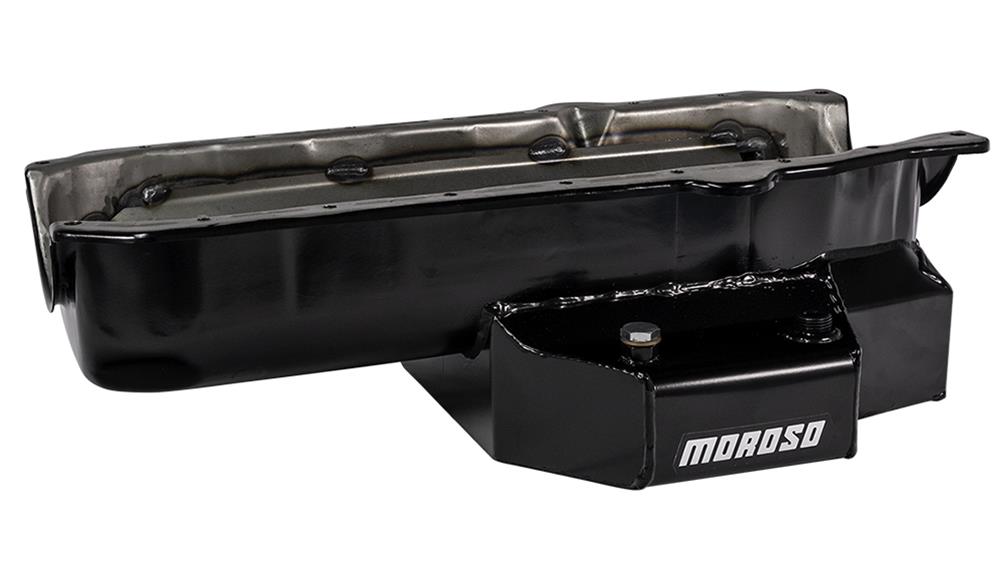

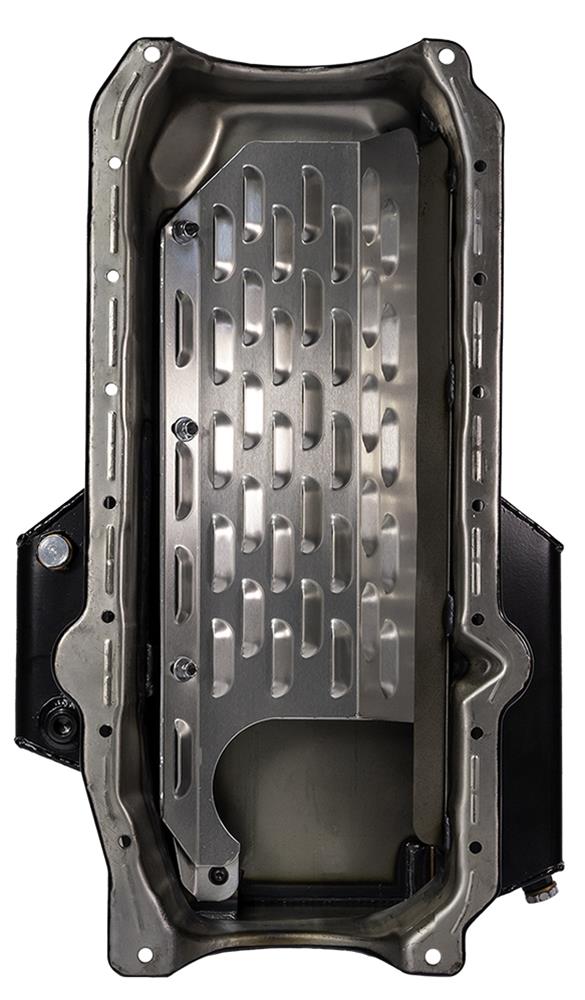

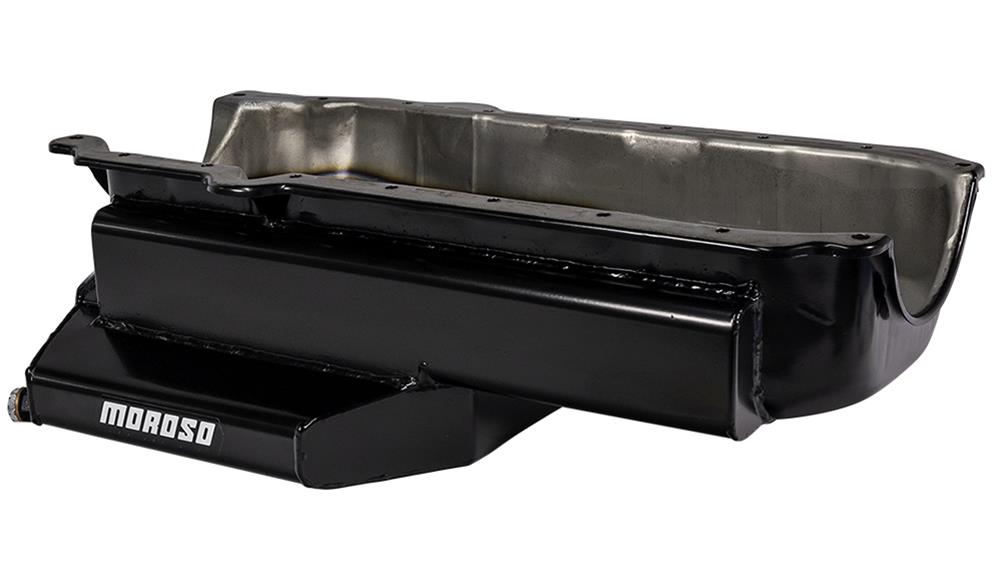

These Power Kickout series oil pans from Moroso are designed with a louvered windage tray and a kicked-out sump that move the oil level away from your rotating assembly, increase capacity, and provide additional ground clearance. Their sump is fully baffled with five trap doors to provide an uninterrupted oil supply under harsh racing conditions.
Product Overview
Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 6qt 6.5in Steel Oil Pan
Product Details
| Description: | Moroso 86-Up Chevrolet Small Block (w/1 Piece Rear Main Seal) Wet Sump 6qt 6.5in Steel Oil Pan |
|---|---|
| Part Number: | mor21315 |
Part Type
SBC C/T Oil Pan - RH Dipstick
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21315
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Power Kickout Series Oil Pans
- Product Attributes - UPC
- 084663213151
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Circle Track
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Passenger side
- Product Attributes - Oil Pan Capacity
- 6.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 3.800 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 6.500
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits fabricated tube chassis cars with lower engines.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21315 |
| SFX Item ID | 4103490 |
| Supplier Item Code | 4103490 |
| Manufacturer SKU | 21315 |
| Manufacturer UPC | 84663213151 |
| Alternative References | 86-Up, (w/1, 6qt, 6.5in |
