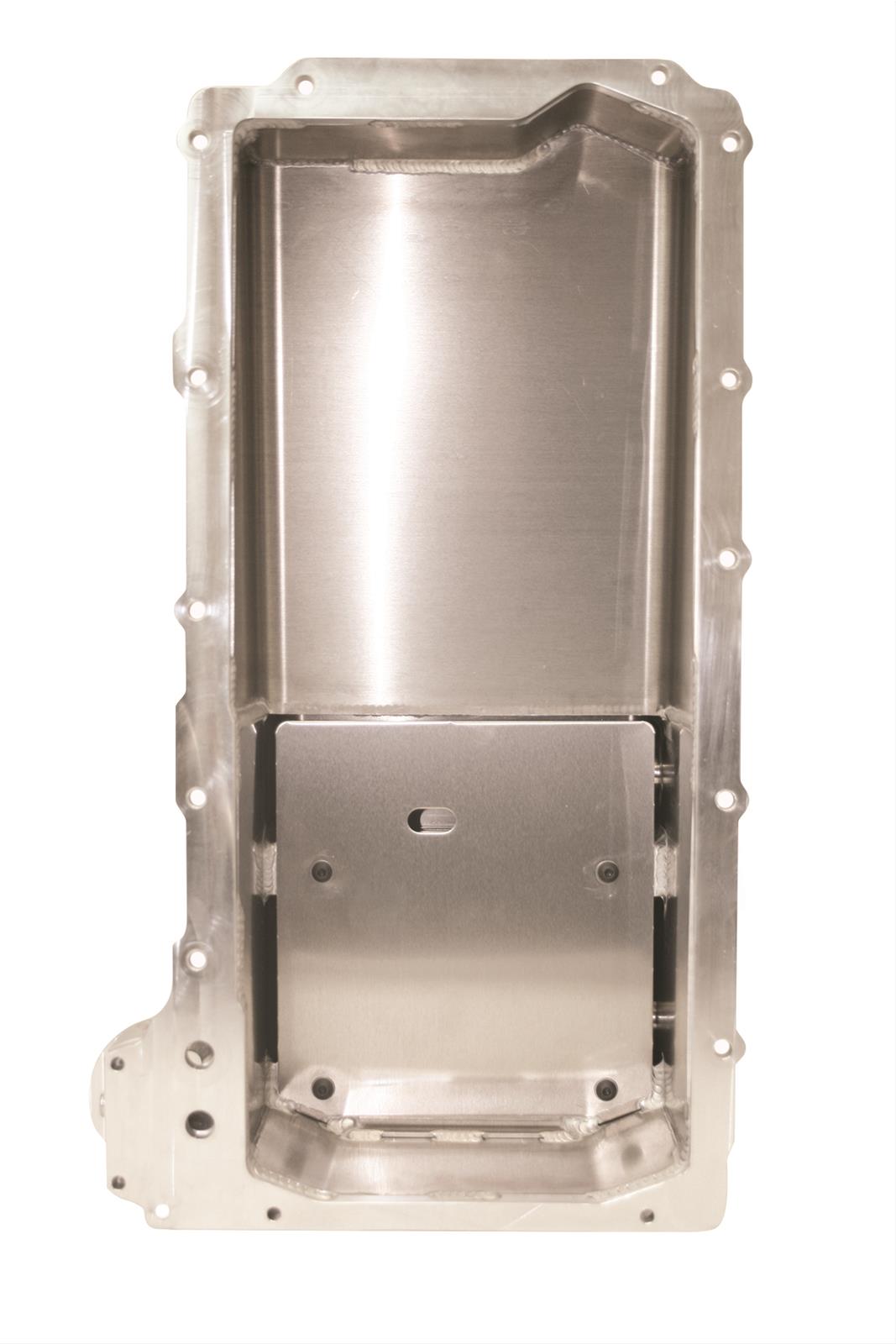

Moroso GM LS/16-Up COPO Camaro (w/Rear Sump & -16An Pick Up) Wet Sump 7qt 7.5in Aluminum Oil Pan
Moroso GM LS/16-Up COPO Camaro (w/Rear Sump & -16An Pick Up) Wet Sump 7qt 7.5in Aluminum Oil Pan
A$2,260.32
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Moroso drag race oil pans are available for hundreds of vehicle-specific applications. The sizes and configurations are built for easy installation and optimum performance. Our selection includes a variety of styles, materials, and fluid capacities for drag racing, street and strip, and road race usage. Order the replacement model designed for your ride.
Product Overview
Moroso GM LS/16-Up COPO Camaro (w/Rear Sump & -16An Pick Up) Wet Sump 7qt 7.5in Aluminum Oil Pan
Product Details
| Description: | Moroso GM LS/16-Up COPO Camaro (w/Rear Sump & -16An Pick Up) Wet Sump 7qt 7.5in Aluminum Oil Pan |
|---|---|
| Part Number: | mor21157 |
Part Type
7qt Oil Pan - GM LS Drag Race/COPO Camaro 16-Up
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21157
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Drag Race Pans
- Product Attributes - UPC
- 084663211577
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Drag Race
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Sump Location
- Rear
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Maximum Stroke with OE Rod
- 4.250 in.
- Product Attributes - Dipstick Provision
- No
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 7.500
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Natural
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This is designed for the 2016 and newer COPO Camaro. Clears 4.250 in. stroke with most steel rods. Features a billet aluminum spin-on oil filter adapter with a 1/4 in. N.P.T. sensor port that accepts a 22mm thread Moroso 22463 or O.E.M. oil filter. Pan has -16 AN external pick-up.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21157 |
| SFX Item ID | 4103478 |
| Supplier Item Code | 4103478 |
| Manufacturer SKU | 21157 |
| Manufacturer UPC | 84663211577 |
| Alternative References | LS/16-Up, -16An, 7qt, 7.5in |
