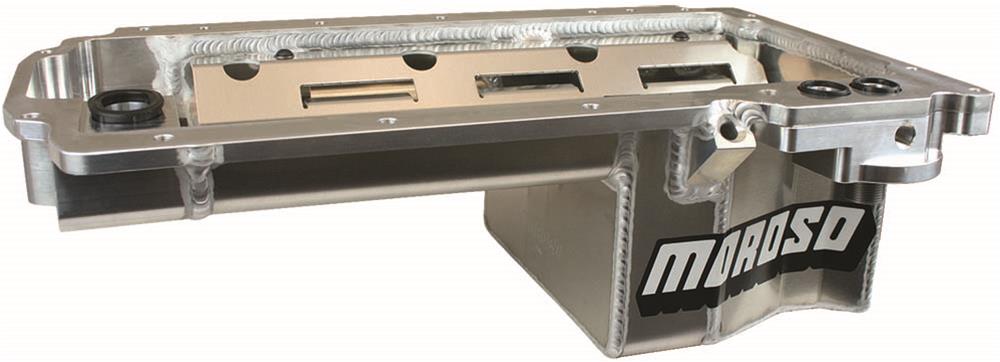

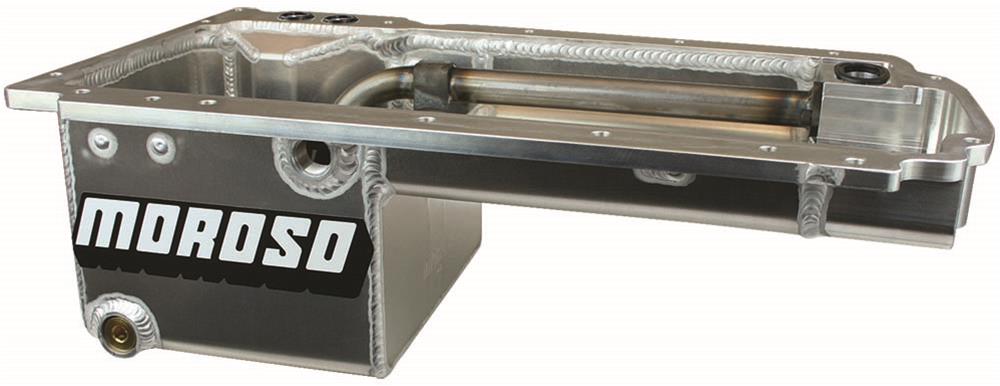

Moroso GM LV1 Rear Sump 6 in Deep Road Race Baffle Oil Pan
Moroso GM LV1 Rear Sump 6 in Deep Road Race Baffle Oil Pan
Sale ends in Calculating...
A$2,417.96 A$2,565.15
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso GM LV1 Rear Sump 6 in Deep Road Race Baffle Oil Pan
Product Details
| Description: | Moroso GM LV1 Rear Sump 6 in Deep Road Race Baffle Oil Pan |
|---|---|
| Part Number: | mor21148 |
Part Type
GM 4.3L V6 Oil Pan Rear Sump Road Race 6in Deep
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21148
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663211485
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 6.000
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Natural
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- Yes
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 3/4 in.-16
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

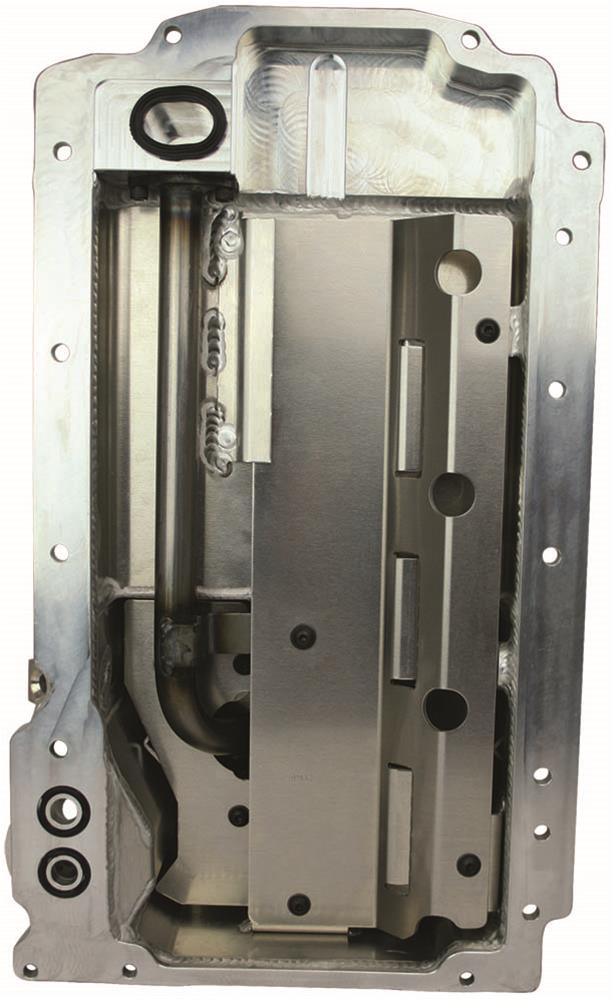

- Features a race proven diamond shape four trap door assembly, removable windage tray and anti-slosh baffle that keeps oil contained in oil pump pickup area during road racing, drifting and drag racing. Includes a billet aluminum spin-on oil filter adapter with a 1/4 in. N.P.T. sensor port that accepts a 22 mm thread. Moroso Part No. 22463 or O.E.M. spin-on oil filter The included dipstick bung is designed to be use with GM part # 12652951 dipstick tube and # 12643278 dipstick.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21148 |
| SFX Item ID | 4105643 |
| Supplier Item Code | 4105643 |
| Manufacturer SKU | 21148 |
| Manufacturer UPC | 84663211485 |
| Alternative References | LV1 |
