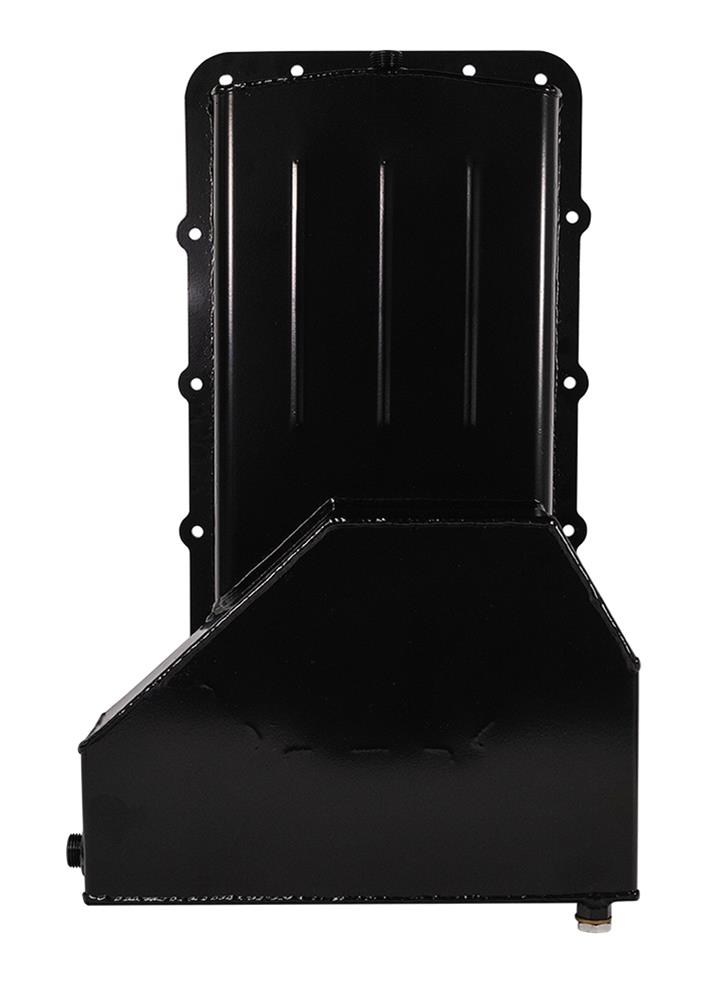

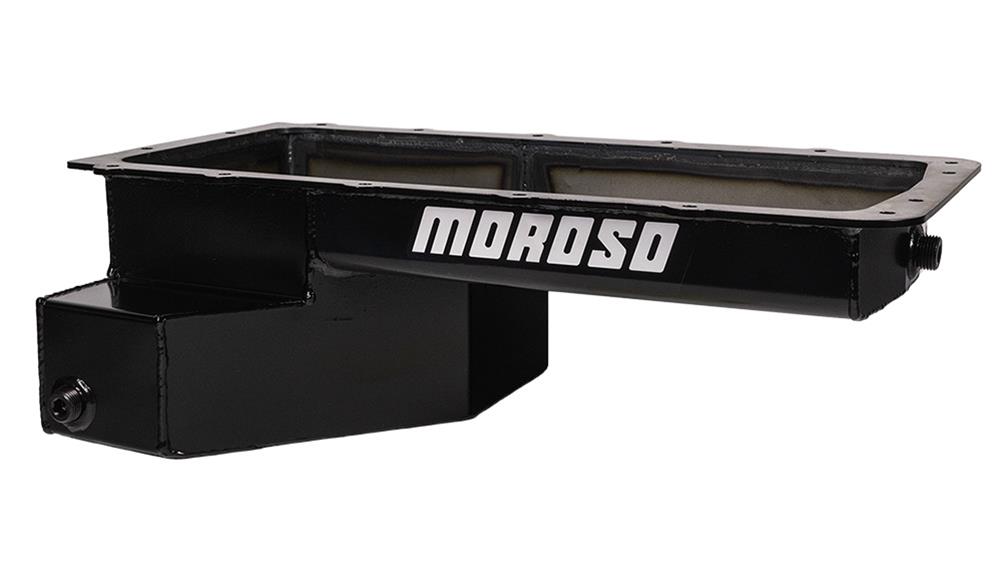

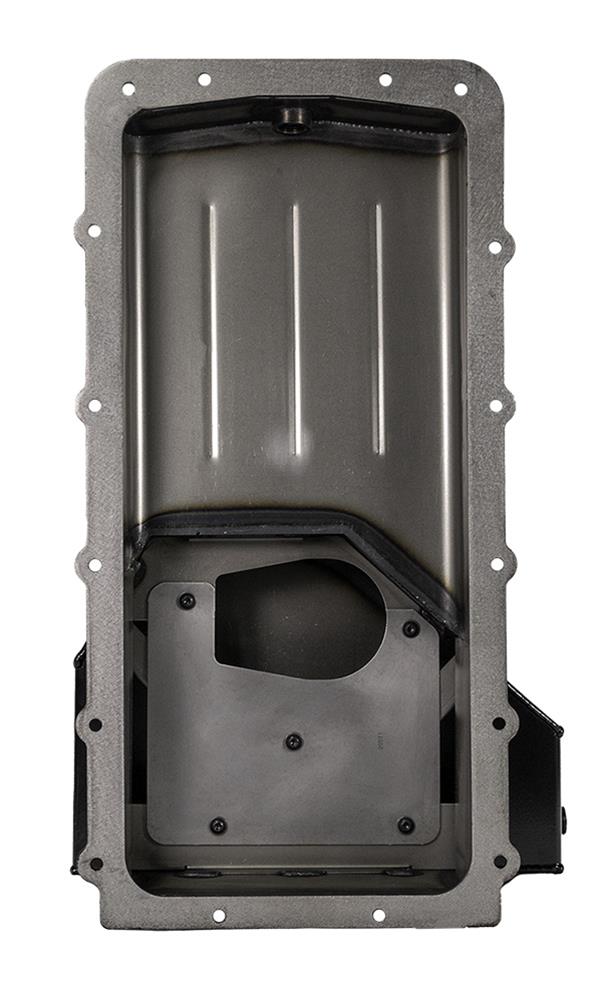

Moroso Ford 5.0 Coyote (w/Rear Sump) Road Race Baffled Wet Sump 9qt 6-5/8in Steel Oil Pan
Moroso Ford 5.0 Coyote (w/Rear Sump) Road Race Baffled Wet Sump 9qt 6-5/8in Steel Oil Pan
A$1,154.52
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Uses factory windage tray, dipstick, and pickup. Designed for 2011-12 Mustang 5.0 and 1979-2010 Mustang with the 5.0 Coyote engine swapped in. Pan has two 1/2 in. NPT fittings for temperature sensor and supercharger oil drainback and one 20mm fitting for low oil warning sensor.
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso Ford 5.0 Coyote (w/Rear Sump) Road Race Baffled Wet Sump 9qt 6-5/8in Steel Oil Pan
Product Details
| Description: | Moroso Ford 5.0 Coyote (w/Rear Sump) Road Race Baffled Wet Sump 9qt 6-5/8in Steel Oil Pan |
|---|---|
| Part Number: | mor20571 |
Part Type
Ford 5.0L Coyote Steel Oil Pan
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20571
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663205712
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 8.00 quarts
- Product Attributes - Stroker Clearanced
- No
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No

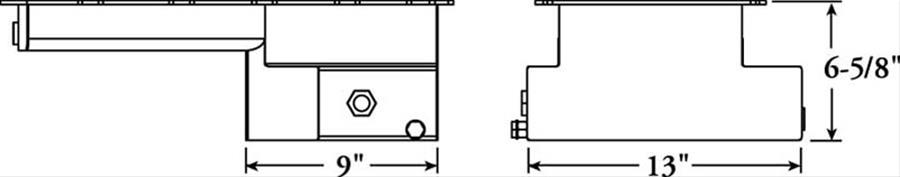

- Product Attributes - Oil Pan Depth (in.)
- 6.625
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Driver and passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in. NPT
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Uses factory windage tray, dipstick, and pickup. Designed for 2011-12 Mustang 5.0 and 1979-2010 Mustang with the 5.0 Coyote engine swapped in. Pan has two 1/2 in. NPT fittings for temperature sensor and supercharger oil drainback and one 20mm fitting for low oil warning sensor.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20571 |
| SFX Item ID | 4103420 |
| Supplier Item Code | 4103420 |
| Manufacturer SKU | 20571 |
| Manufacturer UPC | 84663205712 |
| Alternative References | 9qt, 6-5/8in |
Compatibility
| Application Data |
|
|---|
Loading compatibility information...
Keep shopping
More from Moroso
Moroso
Moroso SBC Under Header 90 Deg Plug HEI Dist Unsleeved Ultra Spark Plug Wire Set - Black
mor51028
A$146.43
Moroso
Moroso Toyota 3SGT 2.0L Turbo/5SFE Non Turbo Road Race Baffled Wet Sump 6.25qt 7-9/16in Alum Oil Pan
mor20935
A$1,290.75
Moroso

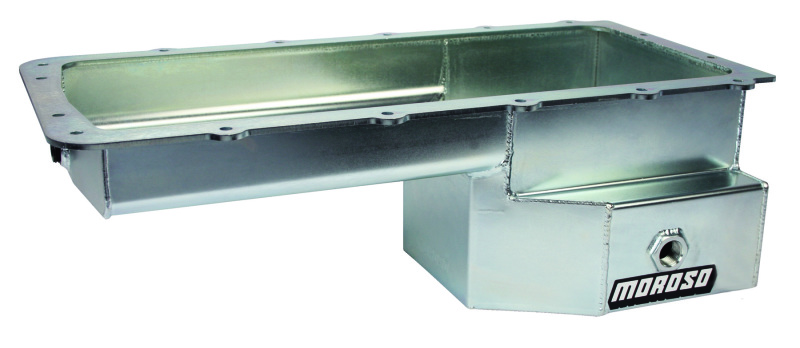

Moroso Ford 5.0 Coyote/Cobra (w/Rear Sump) Road Race Baffled Wet Sump 9.5qt 4.5in Aluminum Oil Pan
