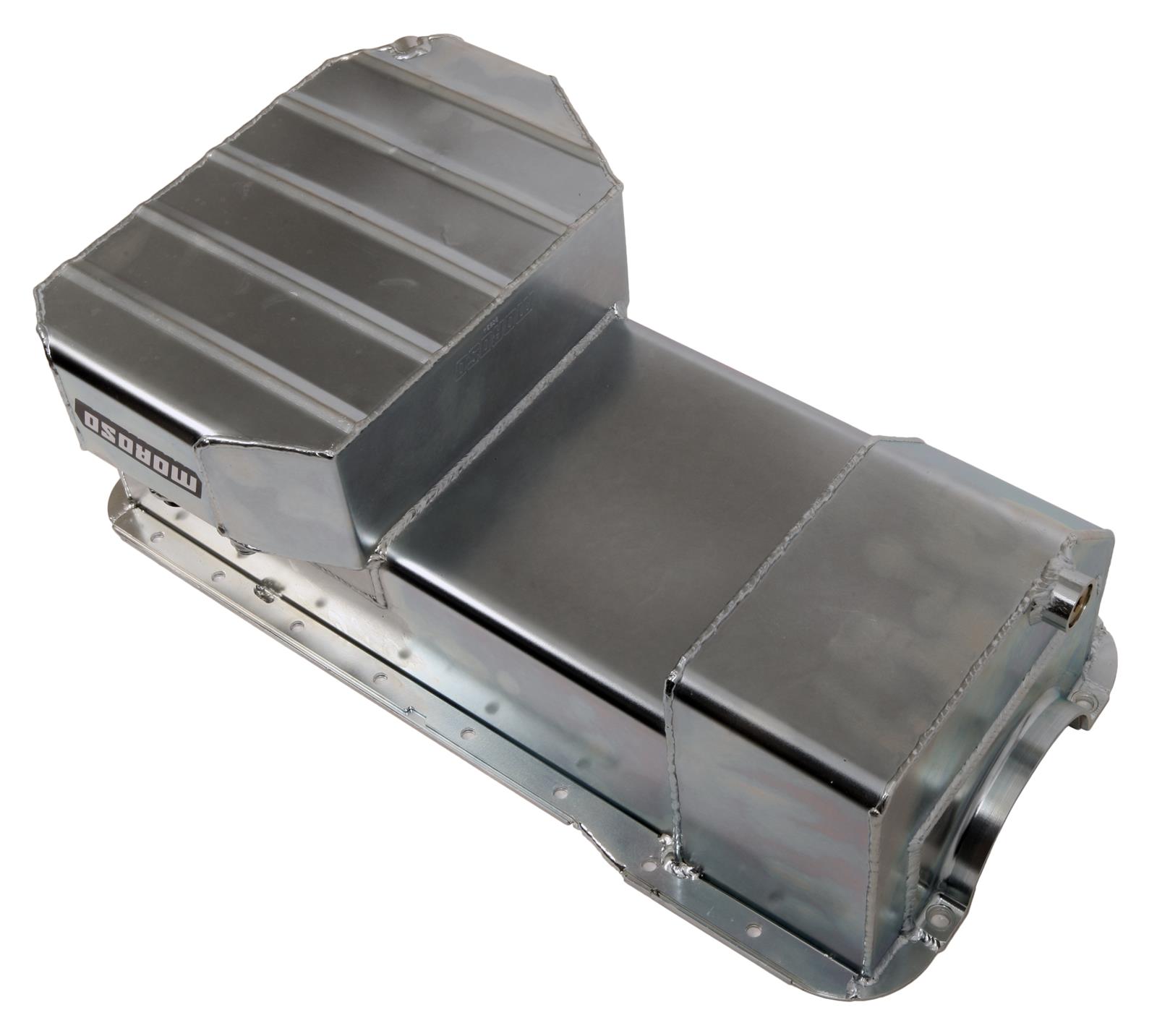

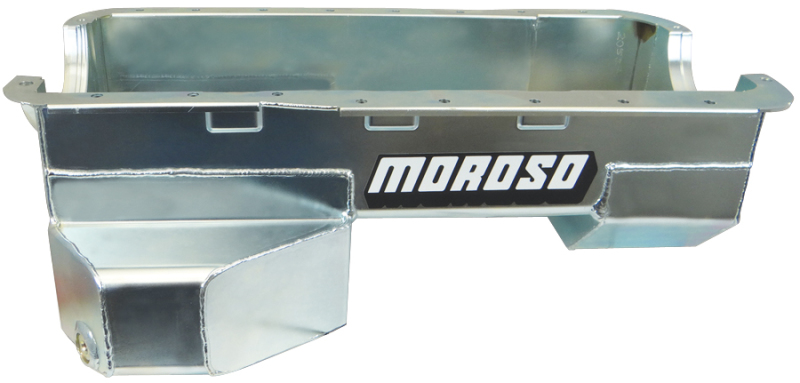

Moroso Ford 351W (w/Rear Sump & Billet End Seals) Road Race Baffled Wet Sump 7qt 7.5in Steel Oil Pan
Moroso Ford 351W (w/Rear Sump & Billet End Seals) Road Race Baffled Wet Sump 7qt 7.5in Steel Oil Pan
A$1,428.09
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Moroso offers a variety of wet sump baffled oil pans for road racing, drag racing, street and strip, and Circle Track applications. They're available for a variety of year/make and engine applications. Control your vital lubricant in extreme driving situations with a replacement or upgrade Moroso wet sump baffled oil pan.
Product Overview
Moroso Ford 351W (w/Rear Sump & Billet End Seals) Road Race Baffled Wet Sump 7qt 7.5in Steel Oil Pan
Product Details
| Description: | Moroso Ford 351W (w/Rear Sump & Billet End Seals) Road Race Baffled Wet Sump 7qt 7.5in Steel Oil Pan |
|---|---|
| Part Number: | mor20534 |
Part Type
Oil Pan - SBF 351w Rear Sump
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20534
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Wet Sump Road Race Baffled Oil Pans
- Product Attributes - UPC
- 084663205347
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Road Race
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 4.000 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 7.500
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Silver
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Passenger side
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

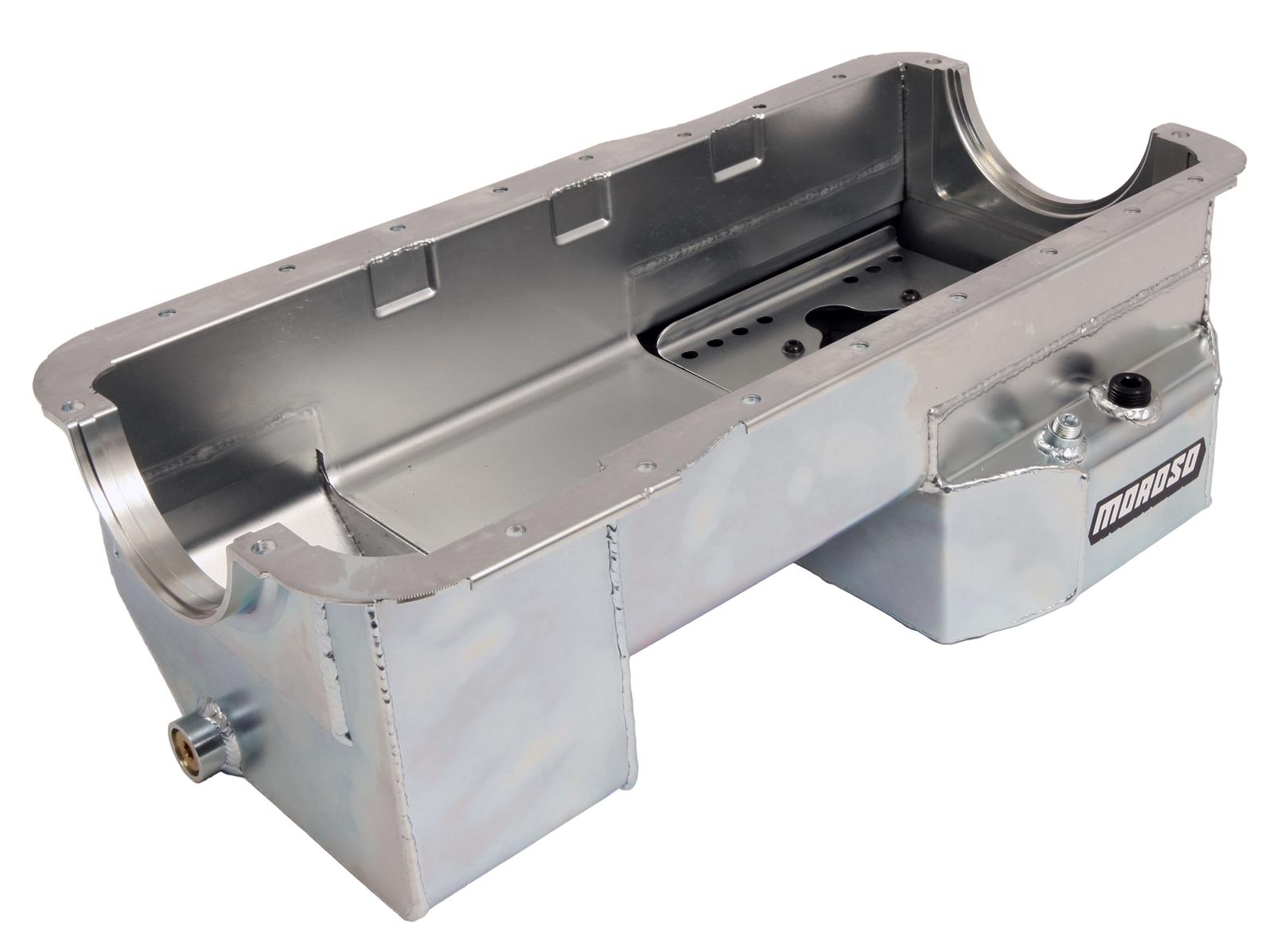

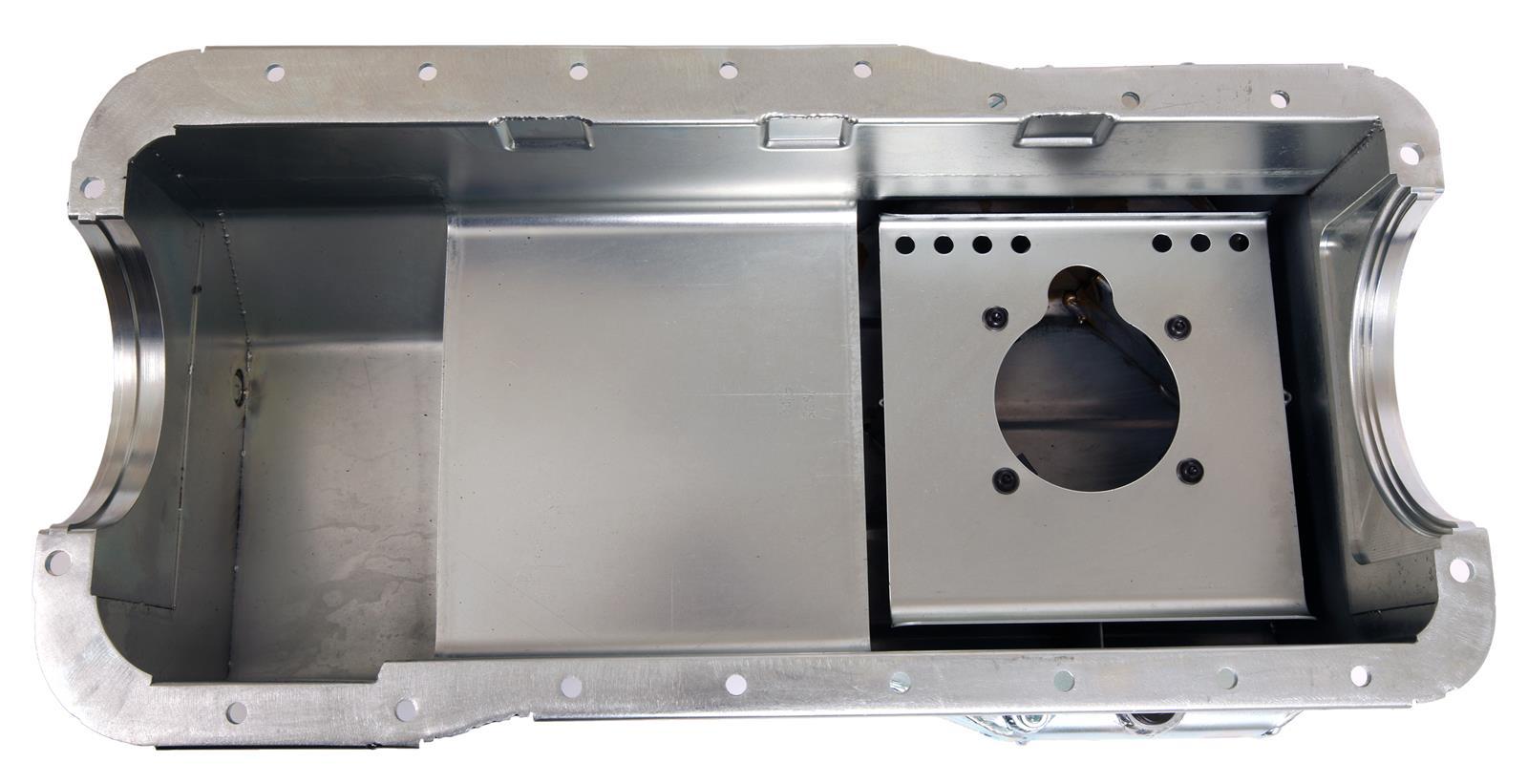

- Clears all 4-bolt main caps including 4-bolt rear. Contains a 4 trap door assembly and anti-slosh baffle.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20534 |
| SFX Item ID | 4103408 |
| Supplier Item Code | 4103408 |
| Manufacturer SKU | 20534 |
| Manufacturer UPC | 84663205347 |
| Alternative References | 351W, 7qt, 7.5in |
