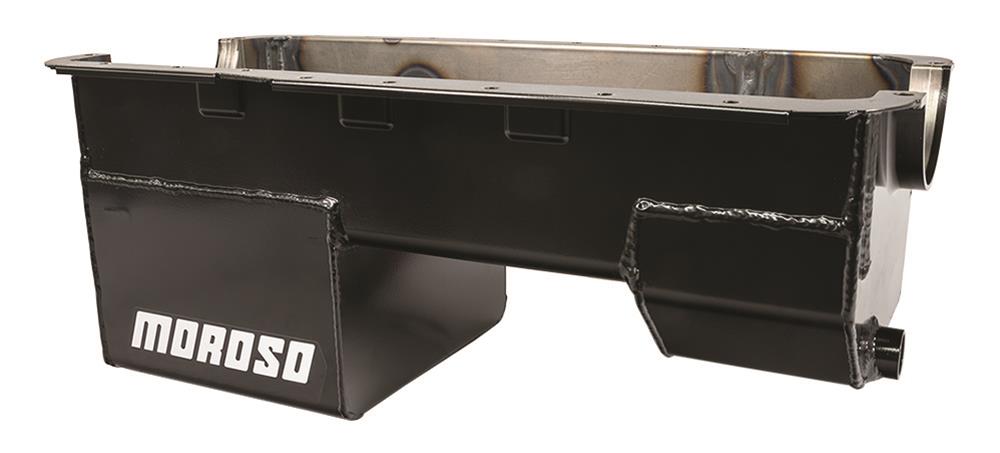

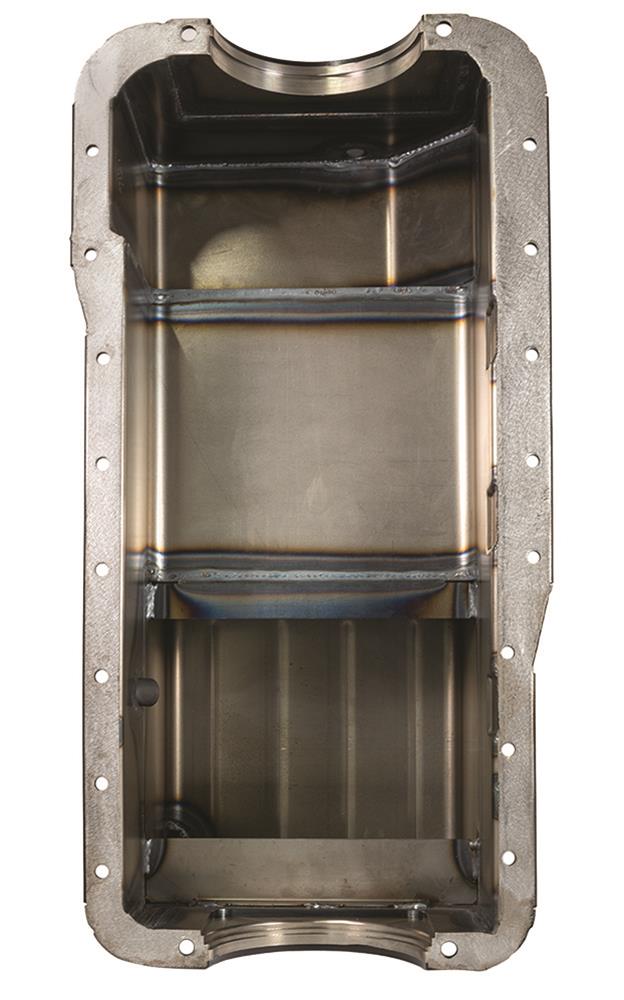

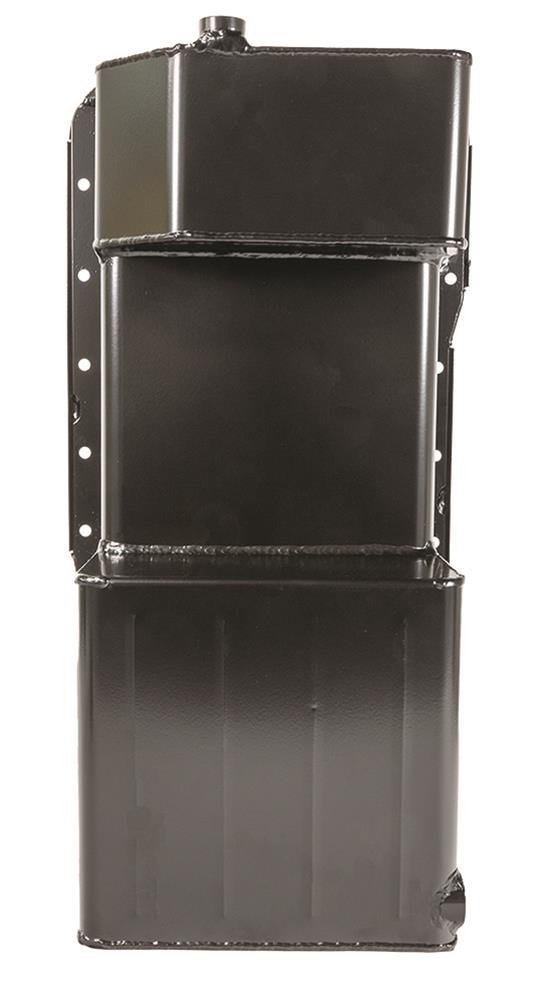

Moroso Ford 289-302 (w/Rear Sump & Billet End Seals) Deep Wet Sump 7qt 9in Steel Oil Pan
Moroso Ford 289-302 (w/Rear Sump & Billet End Seals) Deep Wet Sump 7qt 9in Steel Oil Pan
A$1,011.01
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Must use Moroso Main Cap Girdle part number MOR-22928 when using stock oil pump.
Designed for street performance machines that see occasional strip use, these Moroso oil pans are modified with deep or kicked-out sumps for increased capacity and oil control under hard acceleration. With a simple bolt-on installation into most production chassis, these Moroso street/strip oil pans are perfect for the weekend warrior.
Product Overview
Moroso Ford 289-302 (w/Rear Sump & Billet End Seals) Deep Wet Sump 7qt 9in Steel Oil Pan
Product Details
| Description: | Moroso Ford 289-302 (w/Rear Sump & Billet End Seals) Deep Wet Sump 7qt 9in Steel Oil Pan |
|---|---|
| Part Number: | mor20511 |
Part Type
5.0L Ford S/S Oil Pan
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 20511
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Street/Strip Oil Pans
- Product Attributes - UPC
- 084663205118
- Product Attributes - Sump Style
- Wet
- Product Attributes - Oil Pan Style
- Street/Strip
- Product Attributes - Sump Location
- Rear
- Product Attributes - Dipstick Location
- Driver side
- Product Attributes - Oil Pan Capacity
- 7.00 quarts
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 3.500 in.
- Product Attributes - Dipstick Provision
- Yes
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 9.000
- Product Attributes - Oil Pan Material
- Steel
- Product Attributes - Oil Pan Color
- Black
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- No
- Product Attributes - Windage Tray Included
- No
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Must use Moroso Main Cap Girdle part number MOR-22928 when using stock oil pump.
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor20511 |
| SFX Item ID | 4103398 |
| Supplier Item Code | 4103398 |
| Manufacturer SKU | 20511 |
| Manufacturer UPC | 84663205118 |
| Alternative References | 7qt, 9in |
